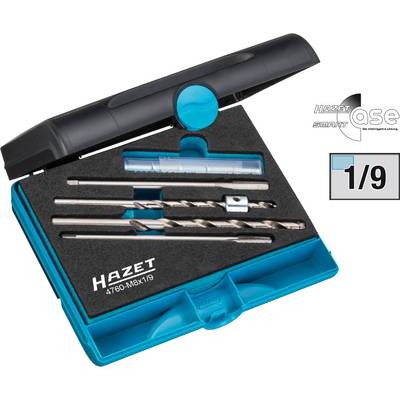

Hazet 4760-M8X1/9 HAZET Glow plug repair set 4760-M8X1/9
EAN:
Part number:
Item no:
Number
Total (€ 298.32 / piece)
€
Technical specifications
- Dim
(L x W x H) 185 x 153 x 52 mm
- Weight
0.52 kg
- Content
1 pc(s)
- Height
52 mm
- Length
185 mm
- Width
153 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1289201 Hazet 4760-M8X1/9 HAZET Glow plug repair set 4760-M8X1/9
Description
Thread repair without dismantling of the cylinder head. • In connection with glow plug extractor set 4760/6. • Mend frayed threads M8 x 1 on M10x1 thread. • 9-piece, contents:. 1 twist drill bit 6.8 mm with spacer sleeve. 1 TAP M 8x1. 1 tap M10 x 1. 1 twist drill bit 9 mm. 5 threaded inserts M8 x 1. • In Smart Case (1/9) 165-S. • Safety insert system, 2-component soft foam inlay.
This text is machine translated.
This text is machine translated.
Features
- Thread repair without having to remove the cylinder head
- To be used with glow plug removal set 4760/6
- SmartCase (1/9) 165-S
- Safety-Insert-System, 2-component soft foam insert Insert also suitable for HAZET Assistent
- Ripped out threads M8 x 1 are reworked on M10 x 1 thread
- 1 twist drill 68 mm with spacer sleeve - 1 tap M8 x 1 - 1 tap M10 x 1 - 1 twist drill 9 mm - 5 threaded inserts M8 x 1
- Net weight: 052 kg
- Number of tools: 9 pieces
