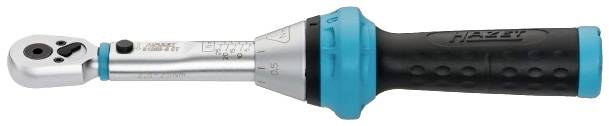

Hazet 5108B-3CT 5108B-3CT Torque wrench 1/4" (6.3 mm) 2.5 - 25 Nm
EAN:
Part number:
Item no:
Highlights & Details
Torque wrench
- Designed for rough workshop useWide range of applications for controlled screw suitOptimized sealing ring for protection against foreign bodiesGrip with more grip for easier power transmissionAdjustment help by snap-in points for optimized operator guidance Secure locking of the setting values by latching function on the rotating assemblyLock symbols indicate the respective locking statusAttachment possibility for rope loop through openings at locking turntableEasy-to-read, high-contrast scalePermanent readability through laser marking of the scale sleeveIntegrated switch leverWith calibration certificate and serial number
Technical specifications
- Number of teeth: 20 (operating angle 18°)Head thickness a: 10.2 mmHead width b:24 mmEffective torque wrench length min.-max. L1 mm: 176.20 – 166.20 NmOperating force min.-max. kg: 1.4 – 15.3 kg
- Product type
Torque wrench
- Downforce
1/4" (6.3 mm)
- Torque (min.)
2.5 Nm
- Torque (max.)
25 Nm
- Trigger accuracy
3 %
- Graduation
0.25 Nm
- Length
234 mm
- DIN standard
DIN EN ISO 6789-2:2017
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2611382 Hazet 5108B-3CT 5108B-3CT Torque wrench 1/4" (6.3 mm) 2.5 - 25 Nm
Description
User-friendly changeover ratchet for bits. No more turning back - with the HAZET torque keys of the 5000er and 6000er series, it has been proven in long-term endurance tests that it is not necessary to turn back to the smallest scale value.
This text is machine translated.
This text is machine translated.
Features
- Haptic (short-travel trigger)Acoustic (bend element)For aluminum and carbon partsFor plastic attachment partsFor covers of motorcyclesFor scooters & bicycles
