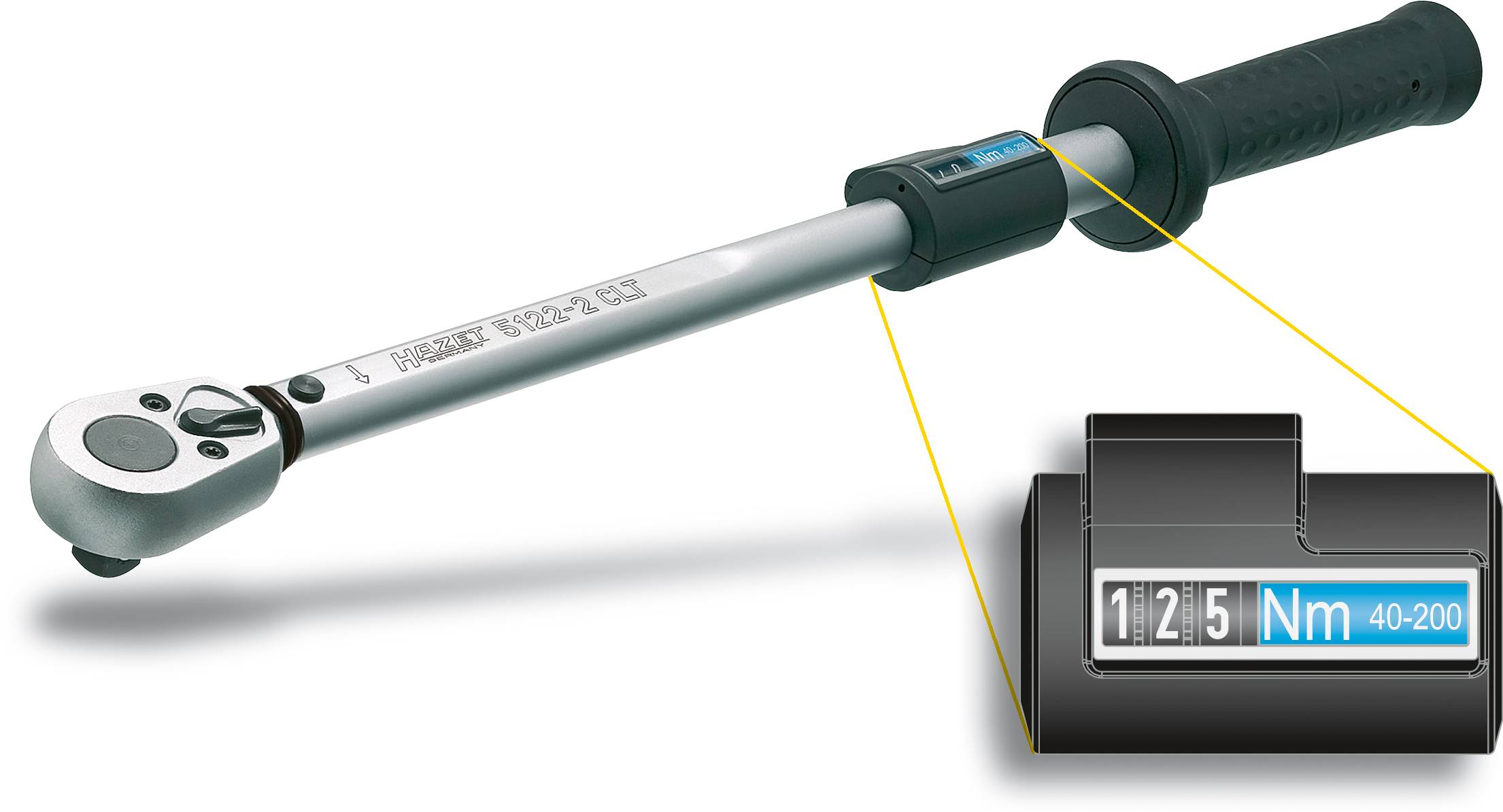

Hazet 5122-2CLT 5122-2CLT Torque wrench Forward/reverse ratchet 1/2" (12.5 mm) 40 - 200 Nm
EAN:
Part number:
Item no:
Highlights & Details
HAZET Torque wrench 5122-2CLT
Technical specifications
- Product type
Torque wrench
- Features
Forward/reverse ratchet
- Downforce
1/2" (12.5 mm)
- Torque (min.)
40 Nm
- Torque (max.)
200 Nm
- Trigger accuracy
4 %
- Graduation
1 Nm
- Length
545 mm
- DIN standard
DIN EN ISO 6789
- Weight
1.35 kg
- Width
75 mm
- Height
80 mm
- Standards
DIN EN ISO 6789:2003;
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 804635 Hazet 5122-2CLT 5122-2CLT Torque wrench Forward/reverse ratchet 1/2" (12.5 mm) 40 - 200 Nm
Description
Click lens-type with large display in the window guarantees safety for the user.
This text is machine translated.
This text is machine translated.
Features
- Click-Lens-Type with value readout in the display guarantees security for the user
- Release accuracy tolerance ± 4% of scale value (in direction of actuation)
- Torque release - palpable by close-gap release - audible by click-sound
- Reversible ratchet
- Easy and safe adjustment of the desired torque value by turning the handle
- Three large digits for an easy-to-read torque setting
- With serial number and certificate
- Delivery in safe box
- Surface: hard chrome plated
- DIN EN ISO 6789:2003 (D)
- Made in Germany
- Total length (for eClass): 545 mm
- Output: Square, solid 125 mm (1/2 inch)
- Net weight: 135 kg
- Service-friendly (do-it-yourself repair sets for reversible ratchet)
- No risk of losing the square like there is with the wrench
- Hard chrome-plated steel tube -slim, but very sturdy and wear-resistant
- Integrated shift lever with free-running function on Outside square drive 125 = 1/2 inch modelreducing the risk of injury and malfunction
- Ergonomically shaped handle with collarreducing the risk of slipping-off and injury
- Safety locking of the handle - no risk of injury!
- Safe and exact adjustment of the desired release torque - Optimal and easy reading of the torque value
- Large convex display (replaceable) optimizes the readability
Scope of delivery
- Serial number and certificate
- Supplied in a safe box.
