Hazet 6108-1CT 6108-1CT Torque wrench Forward/reverse ratchet 1/4" (6.3 mm) 2 - 10 Nm
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

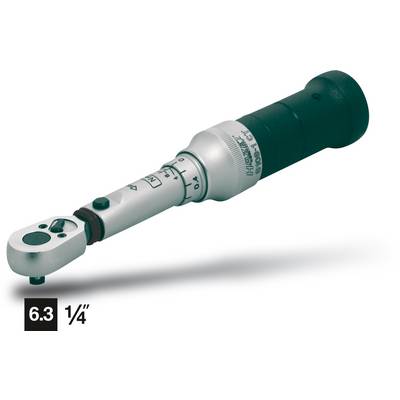

HAZET Torque wrench 6108-1CT
- With square opening
- Triggering accuracy ± 4%
Technical specifications
- Product type
Torque wrench
- Features
Forward/reverse ratchet
- Downforce
1/4" (6.3 mm)
- Torque (min.)
2 Nm
- Torque (max.)
10 Nm
- Trigger accuracy
2 %
- Graduation
0.2 Nm
- Length
198 mm
- DIN standard
DIN EN ISO 6789
- Weight
342 g
- Width
300 mm
- Height
300 mm
- Standards
DIN EN ISO 6789:2003; Square according to DIN 3120 A, ISO 1174-1 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 804659 Hazet 6108-1CT 6108-1CT Torque wrench Forward/reverse ratchet 1/4" (6.3 mm) 2 - 10 Nm
User & Safety Instructions
User & Safety Instructions 804659 Hazet 6108-1CT 6108-1CT Torque wrench Forward/reverse ratchet 1/4" (6.3 mm) 2 - 10 Nm
Description
Features
- With automatic close-gap release, palpable and audible when torque setting is reached
- Easy and safe adjustment of the desired torque value by turning the handle
- Release accuracy tolerance (in direction of actuation)± 2% of scale value - 6106-1 CT: ± 4% release accuracy tolerance
- Application: engines, gearboxes, machines, industry, model making
- Without signal transmitter
- DIN EN ISO 6789:2003 (D), Square according to DIN 3120, ISO 1174-1
- Made in Germany
- Total length (for eClass): 198 mm
- Output: Square, solid 63 mm (1/4 inch)
- Net weight: 034 kg
