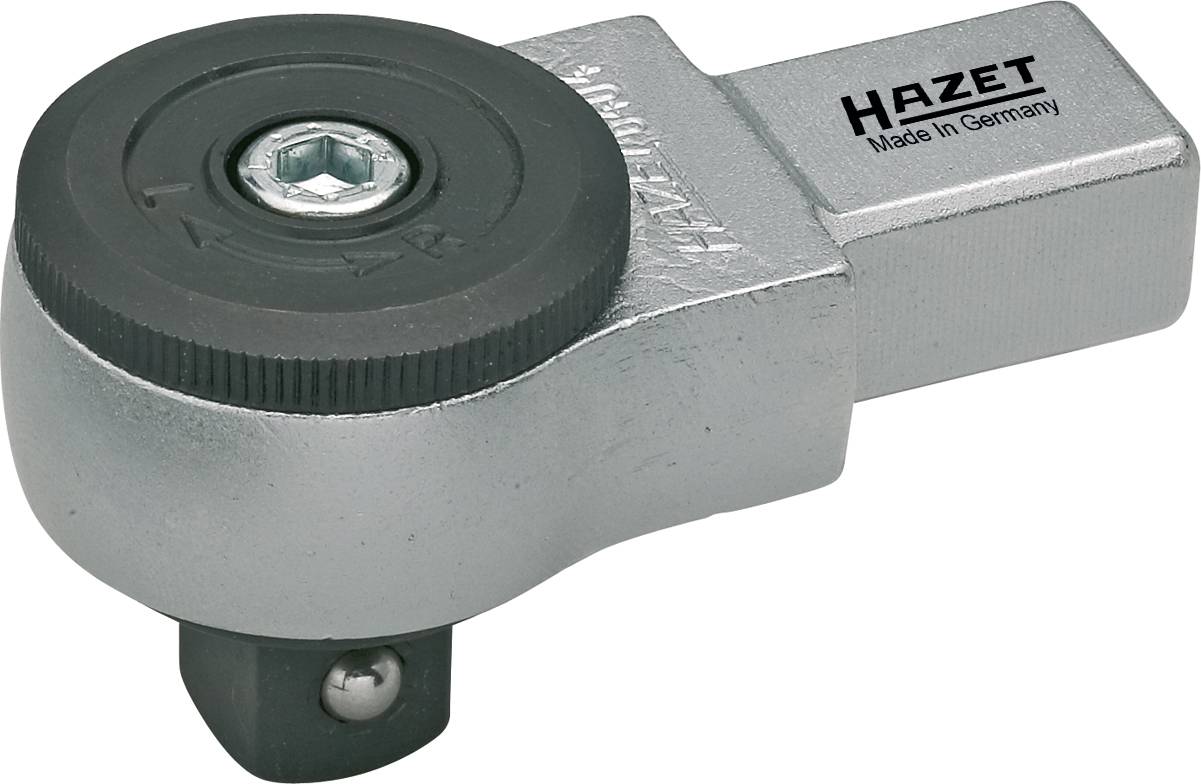

Hazet 6401N Forward/reverse ratchet socket bit
EAN:
Part number:
Item no:
10 Piece(s)
Sales and shipping:
Number
Total (€ 88.23 / piece)
€
Only 10 Piece(s) available
Technical specifications
- Dim
(L x W x H) 50 x 20 x 25 mm
- Weight
73 g
- Content
1 pc(s)
- Height
25 mm
- Length
50 mm
- Width
20 mm
- Downforce
Square, solid, 6.3 mm (1/4")
- Material
Chromium-vanadium steel
- Product type
Forward/reverse ratchet socket bit
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1288882 Hazet 6401N Forward/reverse ratchet socket bit
Description
• Fine toothing, 72 teeth ∙ Operating angle 5°. · Drop-forged. • Surface: Chrome-plated. • DIN 3120, ISO 1174-1. • Made In Germany. • Drive: Square socket insert 9 x 12 mm. • Drive: Square 6.3 mm (1/4 inches). • Dimensions / length 46 mm. • Net weight (kg): 0.07 kg. • Number of teeth: 72 (operating angle 5°). • Pitch of adjustment tool l2: 17.5 mm. • Head thickness a: 11 mm. • Head thickness (a1): 16.5 mm. • Head width b: 25 mm.
This text is machine translated.
This text is machine translated.
Features
- Fine tooth,72 teeth, rotation angle 5°
- Drop-forged
- Surface: chrome-plated
- Square according to DIN 3120, ISO 1174-1
- Made in Germany
- Total length (for eClass): 46 mm
- Drive: Insert square 9 x 12 mm
- Output: Square, solid 63 mm (1/4 inch)
- Net weight: 007 kg
