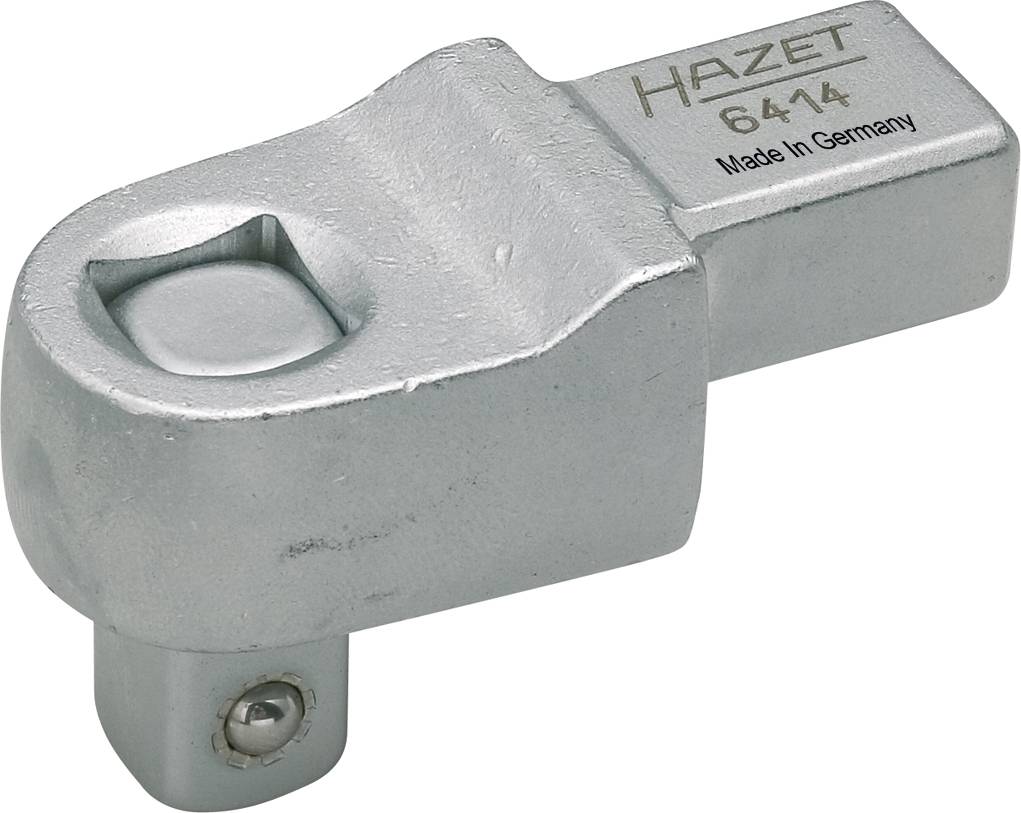

Hazet 6414 Square socket bit 12.5 mm
EAN:
Part number:
Item no:
Technical specifications
- DIN standard
DIN 3120
- Material
Chromium-vanadium steel
- Spanner size
12.5 mm
- Downforce
Square, solid, 12.5 mm (1/2")
- Drive
Square socket bit 14 x 18 mm
- Size
1/2"
- Dim
(L x W x H) 65 x 36 x 29 mm
- Weight
213 g
- Content
1 pc(s)
- Material properties
chrome plated
- Product type
Square socket bit
- Width
36 mm
- Height
29 mm
- Length
65 mm
- Size
1/2"
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1288863 Hazet 6414 Square socket bit 12.5 mm
Description
• Surface: Chrome-plated. • DIN 3120, ISO 1174-1. • Made In Germany. • Drive: Square socket insert 14 x 18 mm. • Drive: Square 12.5 mm (1/2 inches). • Dimensions / length 63.5 mm. • Net weight (kg): 0.21 kg. • Pitch of adjustment tool l2: 25 mm. • Head thickness a: 18 mm. • Head thickness (a1): 21.5 mm. • Head width b: 30 mm.
This text is machine translated.
This text is machine translated.
Features
- Surface: chrome-plated
- Square according to DIN 3120, ISO 1174-1
- Made in Germany
- Total length (for eClass): 635 mm
- Drive: Insert square 14 x 18 mm
- Output: Square, solid 125 mm (1/2 inch)
- Net weight: 021 kg
