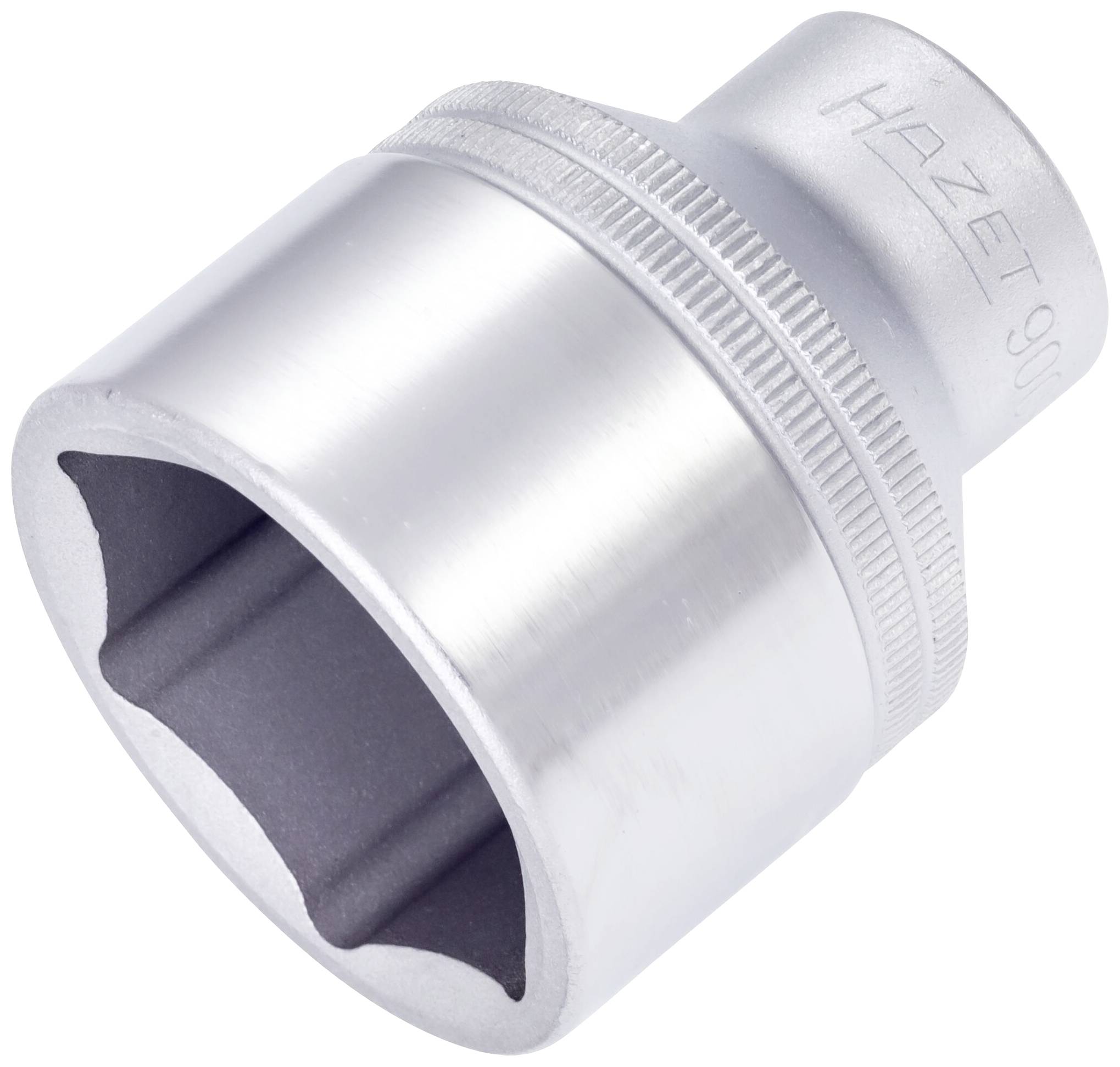

Hazet 900-36 900-36 Double hex socket traction profile Bits 36 mm 1/2" (12.5 mm)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Bits
- Drive
1/2" (12.5 mm)
- Spanner size
36 mm
- Downforce
Double hex socket traction profile
- Length
57 mm
- Max. length
57 mm
- Material
Chromium-vanadium steel
- Material properties
chrome plated
polishing
- DIN standard
DIN 3124
DIN ISO 2725-1
- Weight
0.32 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2570418 Hazet 900-36 900-36 Double hex socket traction profile Bits 36 mm 1/2" (12.5 mm)
Description

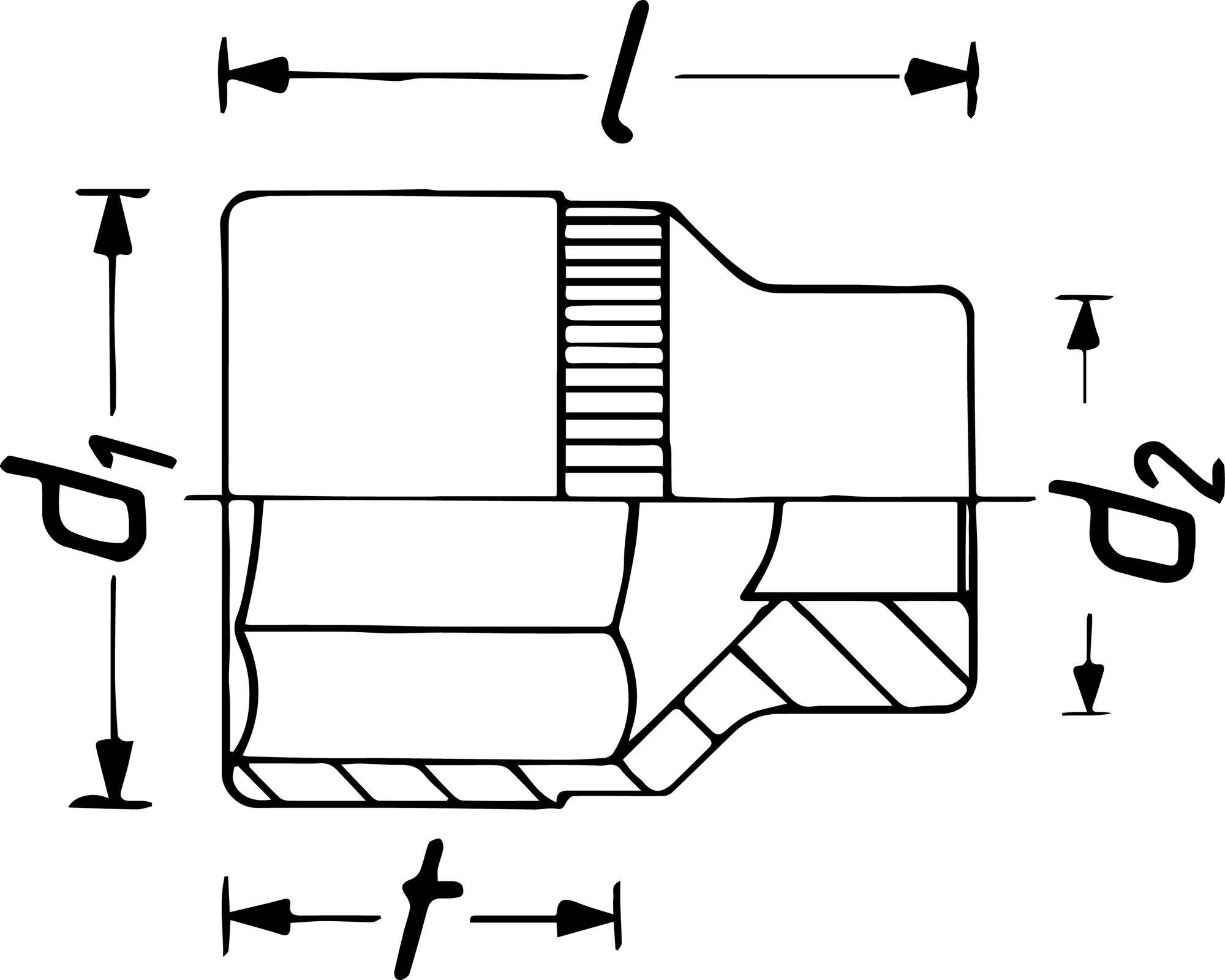

With knurling Surface: Chrome-plated, polished DIN 3124, ISO 2725-1 Made in Germany Drive: Square hollow 12.5 mm (1/2 inch) Drive: Outer-hexagonal traction profile Key width: 36 mm Dimensions / length: 57 mm Diameter D1 (at the output): 49 mm Diameter D2 (at the drive): 28 mm Net weight (kg): 0.32 kg for manual actuation * = outside the DIN series
