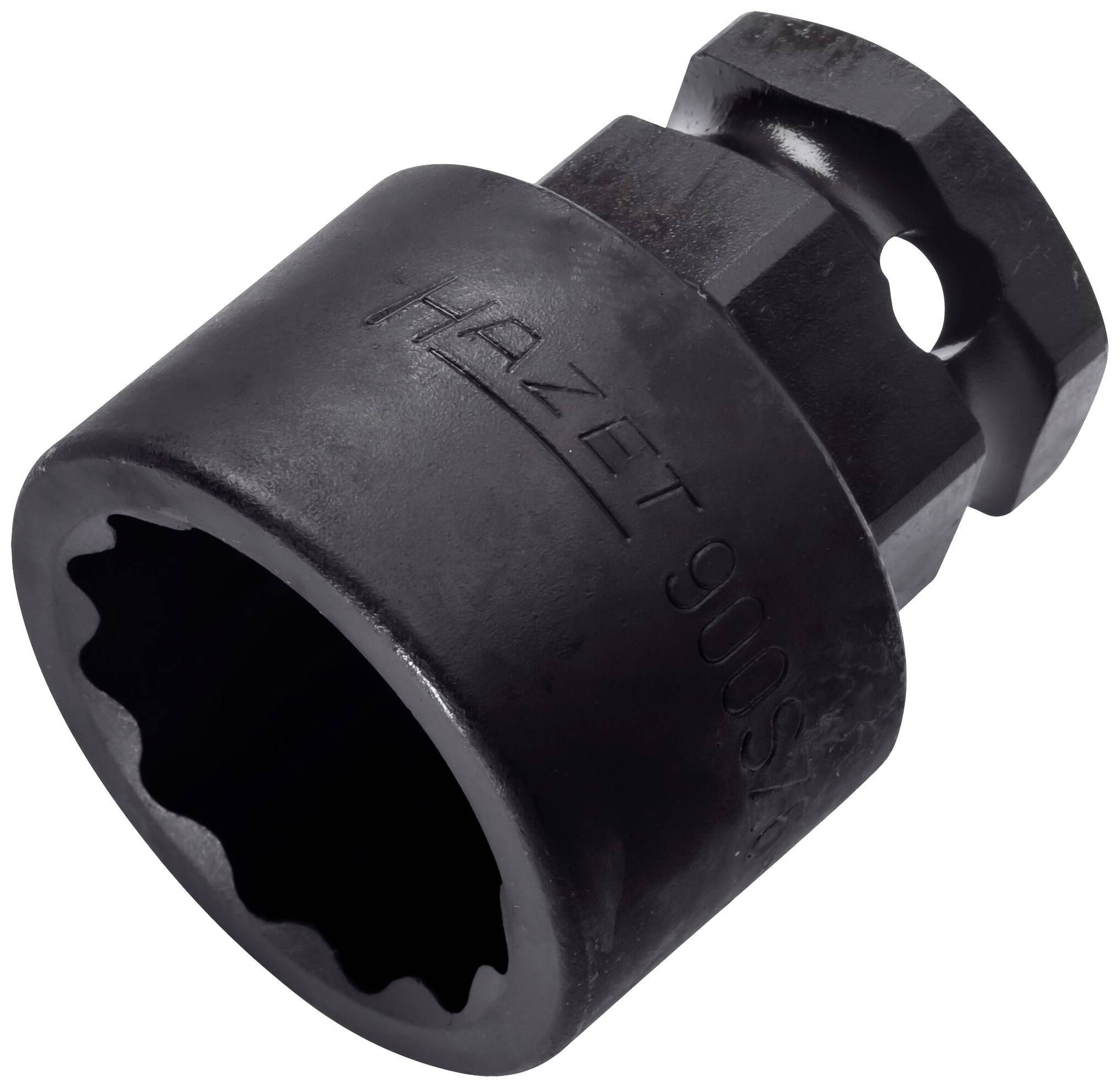

Hazet 900SZ6-24 900SZ6-24 Bits 24 mm 1/2" 1/2" (12.5 mm)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Bits
- Drive
1/2" (12.5 mm)
- Spanner size
24 mm
- Ratchet bits (inch)
1/2"
- Length
44 mm
- Max. length
44 mm
- Material properties
phosphated
oiled
- DIN standard
DIN ISO 2725-2
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2569974 Hazet 900SZ6-24 900SZ6-24 Bits 24 mm 1/2" 1/2" (12.5 mm)
Description
Actuation by impact, machine screwdriver adapter e.g. HAZET 1003 S-1 or socket wrench wrench width 24 mm enables high power transmission through optional 20 mm = 3⁄4″ Drive at socket wrench insert allows adaptation to 20 mm = 3⁄4″ Drive short design with hole for locking pin or safety spring and groove for O-ring surface: Phosphated, oiled similar to DIN 3129, ISO 2725-2 Made in Germany Drive: Square hollow 12.5 mm (1/2 inch), outer-hexagonal 24 mm Drive: Outer-double-hexagonal traction profile Width: 24 mm Dimensions / length: 44 mm Diameter D1 (at the output): 36 mm Diameter D2 (at the drive): 27 mm for machine actuation
