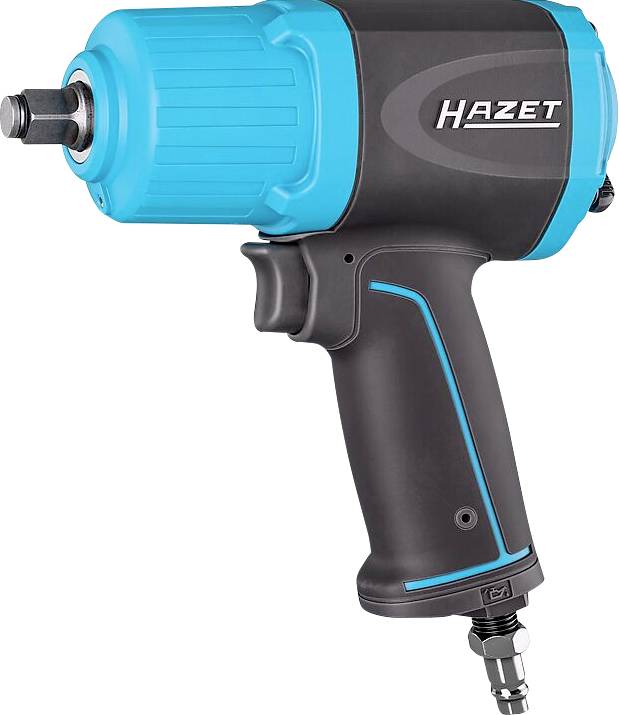

Hazet 9012ECO 9012ECO Pneumatic impact driver Tool holder: 1/2" (12.5 mm) male square Torque (max.): 1700 Nm
EAN:
Part number:
Item no:
Technical specifications
- Loosening torque max. 1700 Nm
- Manual / machine operation: For machine operation
- Tightening torque: 1150 Nm
- Output: 1/2 inch (12.5 mm) square solid
- Net weight (kg): 2.15 kg
- Hammer mechanism (Type): High-performance double hammer impact
- Air consumption [l/min]: 198 l/min.

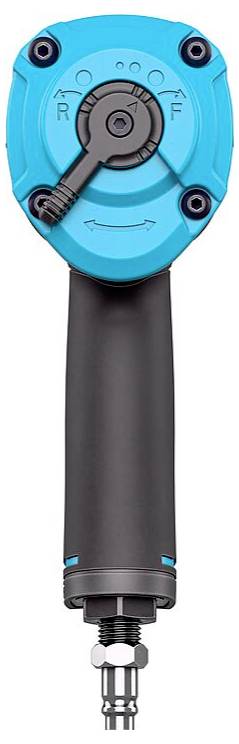

- Forward/reverse operation: Four-stage (clockwise), single-stage (anti-clockwise)
- Recommended torque: 850 Nm
- Handle: Cold-insulating handle
- Hose diameter (recommended): 10 mm
- Vibration acceleration 6.11 m/s2
- Sound pressure level 91.33 dB(A) LP A
- Revolutions/minute: 8491
- Air connection thread type: BSPT
- Inlet air connection: Internal thread 12.91 mm (1/4″)
- Loosening torque (maximum) determined with screw size M: 16 M.
- Coupling socket: Normal diameter 7.2 (included)
- Sound power level 102.33 dB(A) LP W.
- Air consumption [l/sec]: 3.3 l/sec.
- Operating pressure (bar): 6.3 bar
- Product type
Pneumatic impact driver
- Tool holder
1/2" (12.5 mm) male square
- Connector
3/8" (9,525 mm)
- Max. operating pressure
6.3 bar
- Torque (max.)
1700 Nm
- Rotational speed (max.)
8491 U/min
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3557817 Hazet 9012ECO 9012ECO Pneumatic impact driver Tool holder: 1/2" (12.5 mm) male square Torque (max.): 1700 Nm
Description
High-performance twin-hammer impact.
Higher performance characteristics as well as more efficient air flow and improved response torque of the air engine
Specially heat treated inner parts for minimizing wear
One-handed operation through changeover to the rear side of the device
Air exhaust by pushing down the handle
Low vibration
Easy to Use
Double hammer impact…very durable and little vibration
Two hammers produce the blow with counter-rotating pendulum motion.
This impact produces a powerful blow, is very durable and produces little vibration.3
Vibration acceleration - for your protection: Less stress due to vibration!
Vibrating tools can lead to a health hazard for employees.
Hazet compressed air tools are manufactured and tested according to the latest EU directives as well as national and international standards.
For all tools with electric or compressed air motors, we specify the vibration acceleration and give you the necessary information to minimize the load. All vibration acceleration values of the current compressed air tools are summarized in a table here
For Info:
The test methods have changed in terms of vibration and noise emissions and the values determined may be different / higher than the previous Hazet or competitive values (determined using the old test method).
Due to this changed test method, the new and old values cannot be directly compared.
This does not automatically mean that a higher value is worse.
This text is machine translated.
