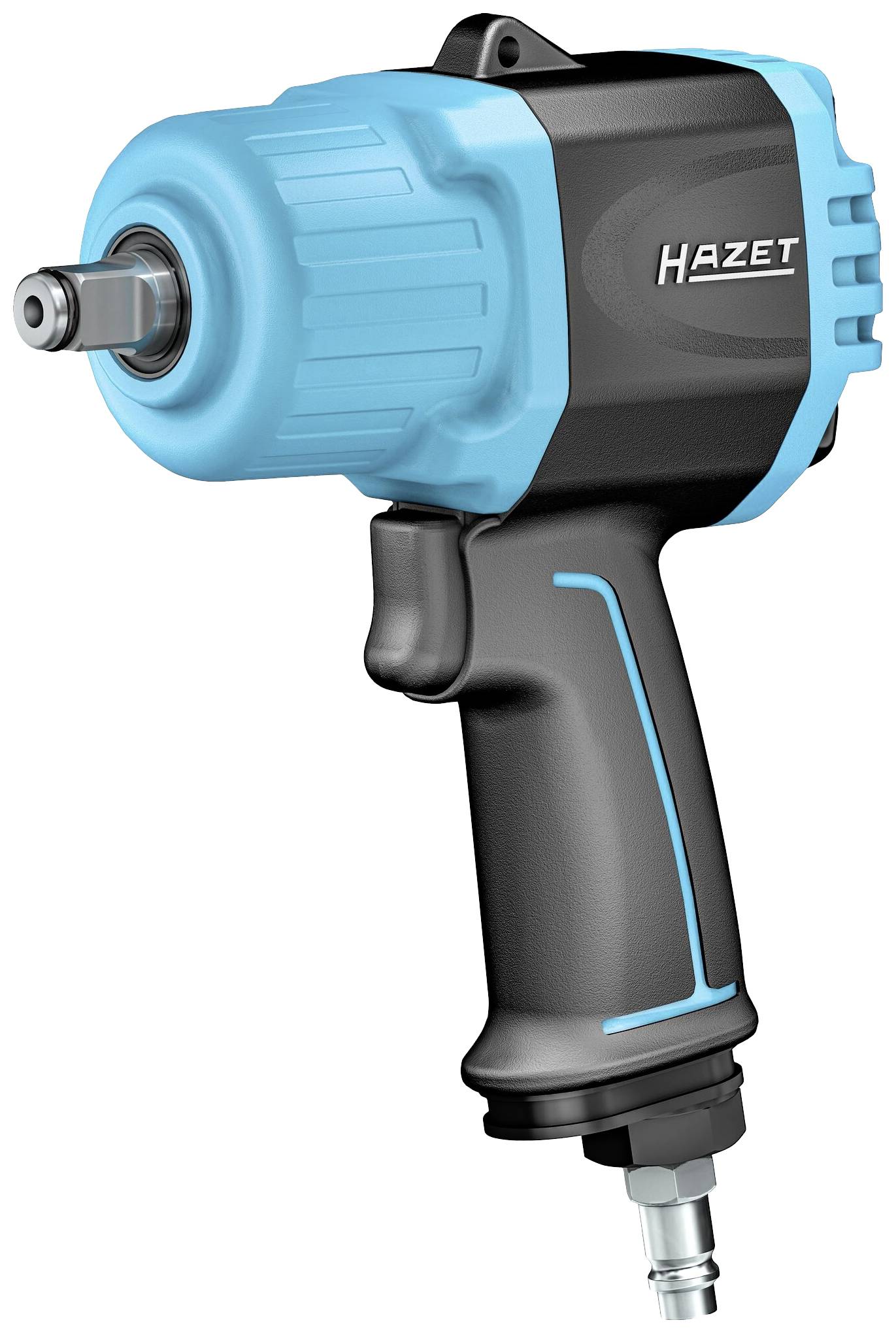

Hazet 9012TT 9012TT Pneumatic impact driver Torque (max.): 1356 Nm
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Hazet twin turbo impact driver 9012TT ∙ Removal torque maximum: 2200 Nm ∙ Square 12.5 mm (1/2 inches) ∙ High performance double hammer action
- Torque (max.): 1356 Nm
Technical specifications
- Tightening torque max. 1356 Nm
- Loosening torque max. 2200 Nm
- Sound pressure level (at operating pressure): 99.7 dB(A) LP A
- Product type
Pneumatic impact driver
- Connector
1/2" (12,7 mm)
- Max. operating pressure
6.3 bar
- Torque (max.)
1356 Nm
- Rotational speed (max.)
8300 U/min
- Air consumption
147.2 l/min
- Weight
1.6 kg
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2902413 Hazet 9012TT 9012TT Pneumatic impact driver Torque (max.): 1356 Nm
User & Safety Instructions
User & Safety Instructions 2902413 Hazet 9012TT 9012TT Pneumatic impact driver Torque (max.): 1356 Nm
Description
Highly durable and efficient in industrial and automotive applications. Loosening torque max. 2200 Nm. Air exhaust by pushing down the handle Low vibration. Easy to Use Short design - only 128 mm. Hazet twin turbo technology – high torque with compact design. 8-lamellae air motor with 25% higher impact power ensures maximum torque. One-handed operation for right and left-handed people. High-performance twin-hammer impact.
This text is machine translated.
This text is machine translated.
Features
- Inlet air connection: Internal thread 12.91 mm (1/4″)
- Coupling socket: Normal diameter 7.2 (included)
- Recommended torque: 948 Nm
- Hose diameter (recommended): 10 mm
- Sound power level (at operating pressure): 110.7 dB(A) LP W.
- Vibration acceleration 8.69 m/s2
- Loosening torque (max) determined with screw size M: 16
- Forward/reverse operation: Two-stage (clockwise), single-stage (anti-clockwise)
- Cold insulating handle
