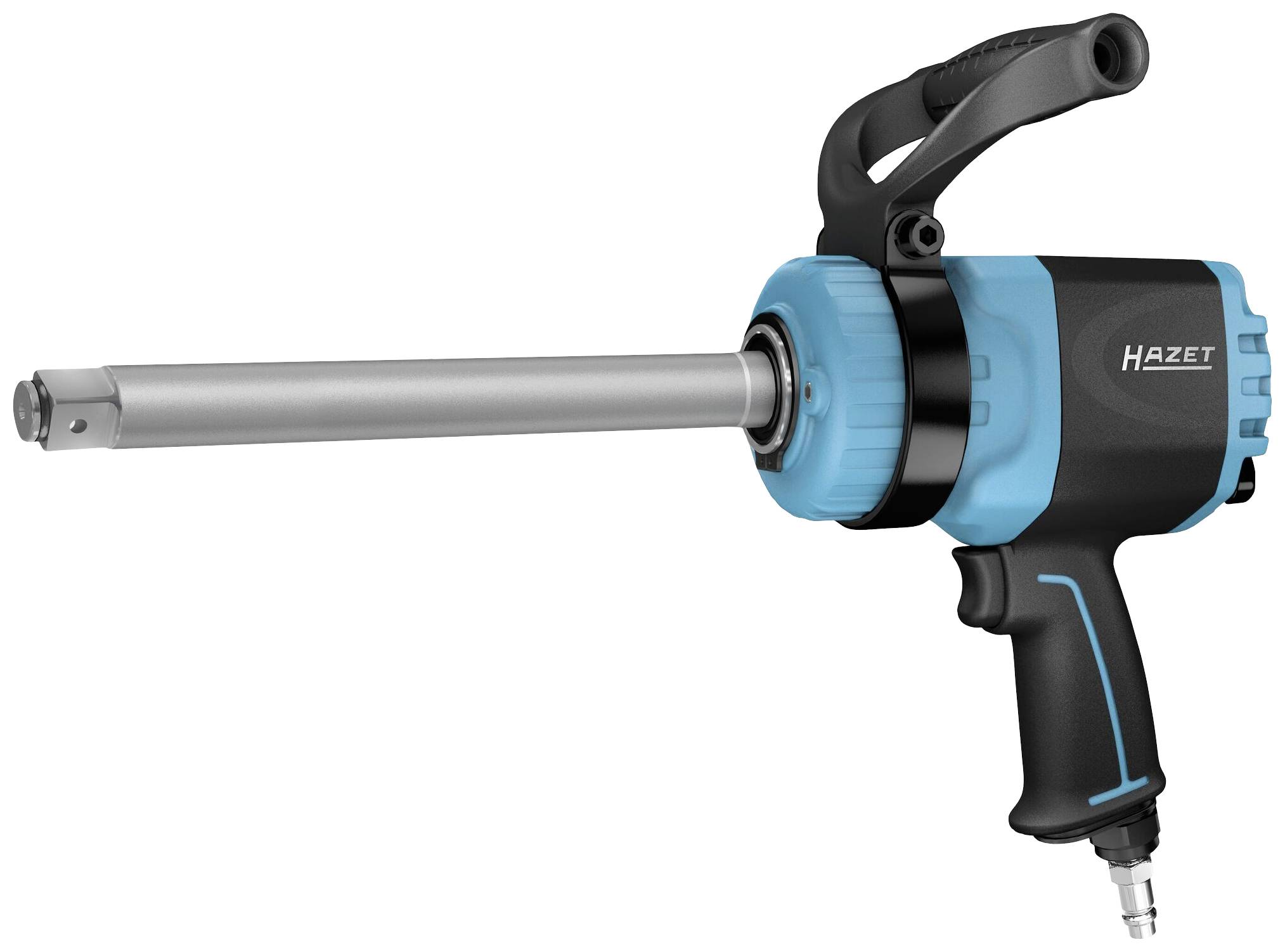

Hazet 9014LGTT 9014LGTT Pneumatic impact driver Torque (max.): 1762 Nm
EAN:
Part number:
Item no:
Highlights & Details
Hazet twin turbo impact driver ∙ Long spindle 9014LGTT ∙ Release torque maximum: 3850 Nm ∙ Square 25 mm (1 inch) ∙ High-power double hammer impact
- Torque (max.): 1762 Nm
Technical specifications
- Square 25 mm (1 in.)
- Dimensions/length 370 mm x 133 mm x 307 mm
- Loosening torque max. 3850 Nm
- Sound pressure level (at operating pressure): 102.5 dB(A) LP A
- Product type
Pneumatic impact driver
- Connector
1" (25,4 mm)
- Max. operating pressure
6.3 bar
- Torque (max.)
1762 Nm
- Rotational speed (max.)
4600 U/min
- Air consumption
235 l/min
- Weight
5.9 kg
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2902429 Hazet 9014LGTT 9014LGTT Pneumatic impact driver Torque (max.): 1762 Nm
Description
Highly durable and efficient in industrial and automotive applications. Loosening torque max. 3850 Nm. Air exhaust by pushing down the handle Low vibration. Easy to Use Short, compact design with 240 mm long spindle. One-handed operation for left and right-handed people. Removable hand bracket, adjustable at 360°. Connection socket for whisper hose. Hazet twin turbo technology – high torque with compact design. 8-lamellae air motor with 25% higher impact power ensures maximum torque. High-performance twin-hammer impact.
This text is machine translated.
This text is machine translated.
Features
- Inlet air connection: Internal thread 20.67 mm (1/2″)
- Coupling socket: Normal diameter 10 (included)
- Recommended torque: 1627 Nm
- Hose diameter (recommended): 19 mm
- Sound power level (at operating pressure): 113.5 dB(A) LP W.
- Vibration acceleration 17.31 m/s2
- Loosening torque (max) determined with screw size M: 32
- Forward/reverse operation: Two-stage (clockwise), single-stage (anti-clockwise)
- Cold insulating handle
