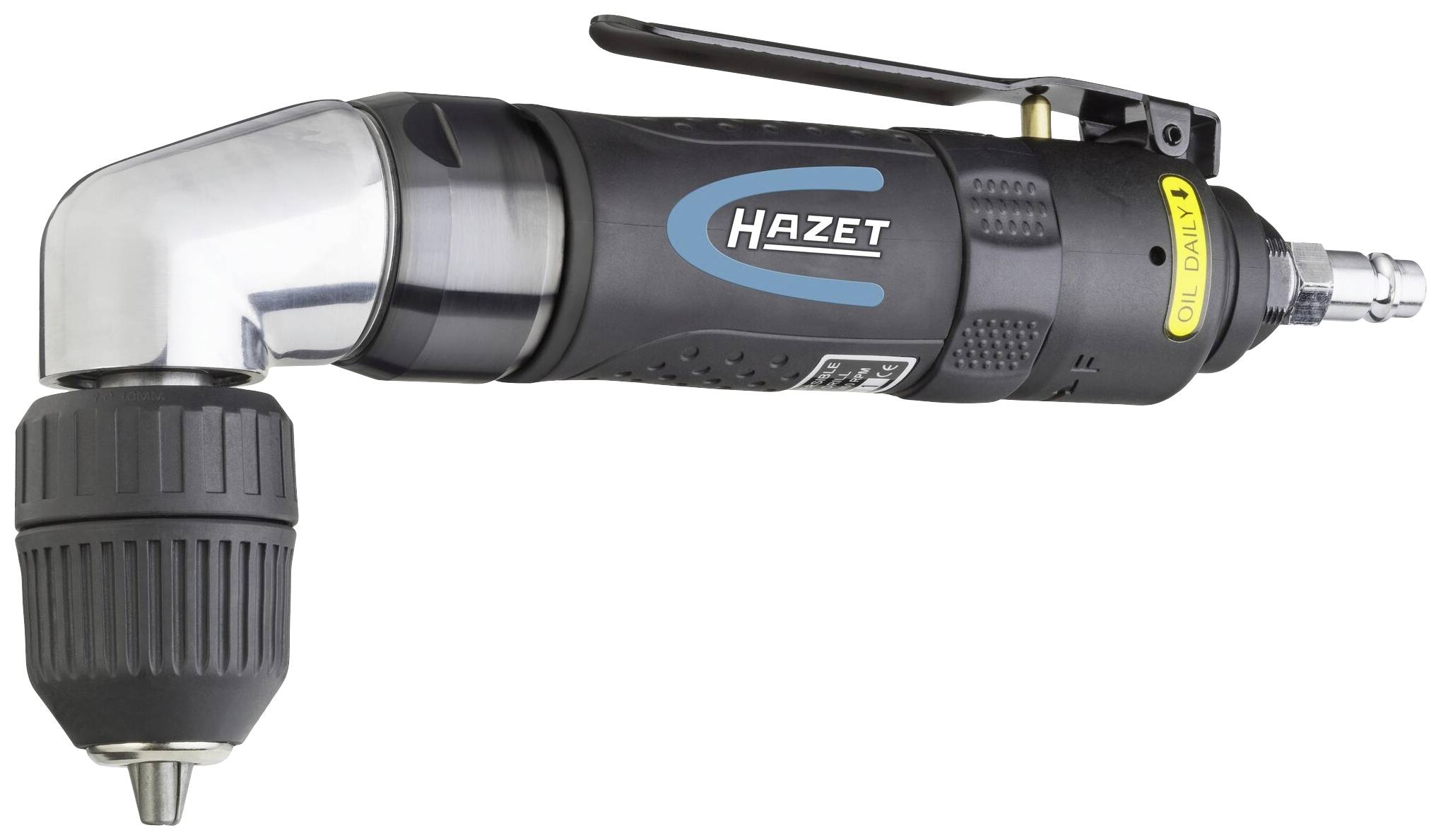

Hazet 9030N-5 Pneumatic angle drill Keyless drill chuck 6.3 bar
EAN:
Part number:
Item no:
Technical specifications
- Length: 218 mmAir consumption: 1883.333 m³/s.Service package: SP2
- Product type
Pneumatic angle drill
- Tool holder
Keyless drill chuck
- Air consumption
113 l/min
- Max. operating pressure
6.3 bar
- Rotational speed (max.)
1400 rps
- Weight
1.2 kg
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2568956 Hazet 9030N-5 Pneumatic angle drill Keyless drill chuck 6.3 bar
Description
For difficult to access places Quick-release chuck Exhaust through the handle to the rear Air connection Inlet: Internal thread 12.91 mm (1/4″) Coupling plug: Nominal width 7.2 (inclusive) Hose diameter (recommended): 10 mm Operating pressure (bar): 6.3 Sound-power level (at operating pressure): 96 db(A) LP W Vibration acceleration: 0.50 m/s2 Chuck: 1 – 10 Right/left-handed rotation: Single-stage (right/left) Power: 373 Watt cold-insulating handle Dimensions / length: 218 mm Net weight (kg): 1.2 kg Sound pressure level (at operating pressure): 85 dB(A) LP A Revolutions/minute: 1400 air requirement [l/min]: 113 l/min (1.9 l/sec)
