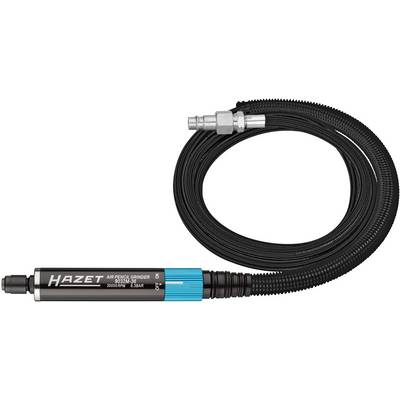

Hazet 9032M-36 Pneumatic rotary tool Collets 6.3 bar incl. accessories
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Revolutions/minute: 30000
- Net weight (kg):0.38 kg
- Air consumption [l/min]: 43.7 l/min.
- Dimensions: 150 mm
- Vibration acceleration 1.80 m/s2
- Sound pressure level 78.7 dB(A) LP A
- Chuck 6 mm
- Sound power level 85.8 dB(A) LP W.
- Power Watt: 224 Watt
- Power PS 0.305 PS
- Product type
Pneumatic rotary tool
- Features
incl. accessories
- Tool holder
Collets
- Air consumption
43.7 l/min
- Max. operating pressure
6.3 bar
- Rotational speed (max.)
30000 U/min
- Weight
0.38 kg
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1673930 Hazet 9032M-36 Pneumatic rotary tool Collets 6.3 bar incl. accessories
User & Safety Instructions
User & Safety Instructions 1673930 Hazet 9032M-36 Pneumatic rotary tool Collets 6.3 bar incl. accessories
Description
Application: precise working with 3 mm and 6 mm grinding bodies even in confined spaces. Low-noise operation: integrated exhaust hose will exhaust air from the workpiece away and absorbs the sound. Slim Design 6 mm chuck with 3 mm adapter for the admission of both grinding body mass. Tool length: 150 mm. Tool diameter: 22.2 mm. Hose length: 1500 mm. Air connection inlet (of the compressor): internal thread (IG) 12,91 mm (1/4") socket plug: nominal width 7.2 (inclusive) hose diameter (recommended): 5 mm operating pressure (bar): 6.3 sound power level (at operating pressure): 85.8 db(A) LP W vibration acceleration: 1.80 m/s 2 Power Watt: 224 watts (0.305 PS) Total length 150 mm. Net weight (kg): 0.38 kg sound pressure level (at operating pressure): 78.7 dB(A) LP A revolutions/minute: 30000 air demand [l/min]: 43.7 l/min (0.7 l/sec)
