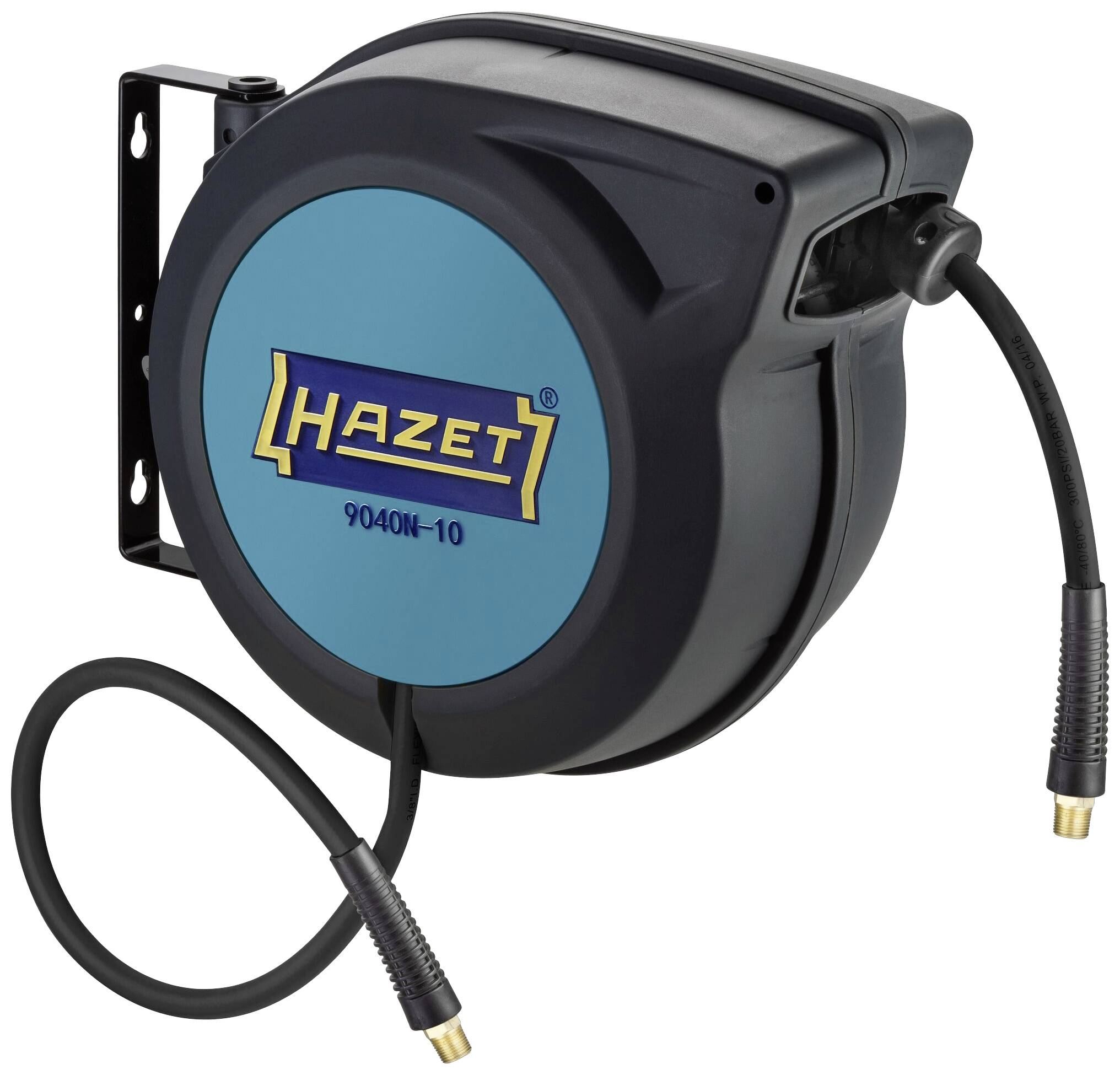

Hazet 9040N-10 Air hose recoiler 378 mm 20 bar
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Material hose: Hybrid polymer
- Connection hose 90 cm
- Hose length 15 m
- Dimension: 459 x 378 x 205 mm
- Inlet air connection: External thread 16.41 mm (3/8″)
- Air connection outlet: External thread 16.41 mm (3/8″)
- Temperature range: -40°C - +60°C
- Product type
Air hose recoiler
- Length
378 mm
- Max. operating pressure
20 bar
- Content
1 pc(s)
- Inside diameter
10 mm
- Weight
6.5 kg
- Width
36 cm
- Keyboard layout
English, QWERTY
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2902608 Hazet 9040N-10 Air hose recoiler 378 mm 20 bar
User & Safety Instructions
User & Safety Instructions 2902608 Hazet 9040N-10 Air hose recoiler 378 mm 20 bar
Description
Automatic hose reel creates order in the workshop - no lying around hose, thus reducing the risk of accidents. Hose stop at any point thanks to stop at any point. Clean winding thanks to automatic guiding. Brake winding to prevent risk of accident.
This text is machine translated.
This text is machine translated.
Features
- Suitable for compressed air or water
- Integrated drilling template for mounting on cardboard packaging.
- Thread BSPT
- Fulfils all relevant provisions of EC Directive Machinery 2006/42/EC
- Optionally usable with Hazet safety clutch 9000-061
- Closed special plastic housing with swivel bracket made of metal for individual mounting at the work place
- Drill hole spacing bracket 186 mm
