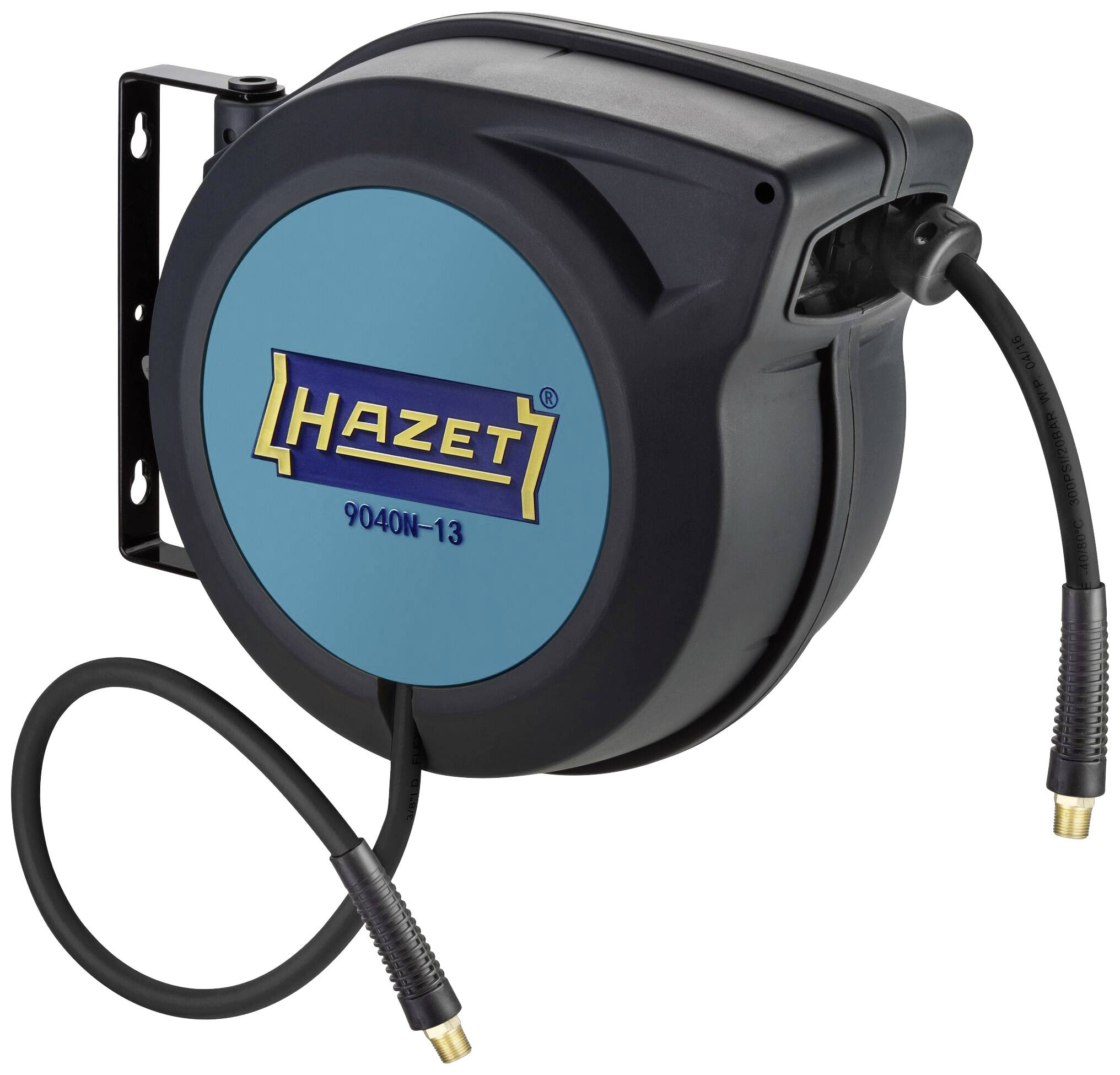

Hazet 9040N-13 Air hose recoiler 15 m 20 bar
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Material hose: Hybrid polymer
- Connection hose 1 m.
- Hose length 15 m
- Dimension: 500 x 418 x 210 mm
- Inlet air connection: External thread 20.96 mm (1/2″)
- Air connection outlet: External thread 20.96 mm (1/2″)
- Temperature range: -40°C - +80°C
- Product type
Air hose recoiler
- Length
15 m
- Max. operating pressure
20 bar
- Content
1 pc(s)
- Inside diameter
13 mm
- Weight
9.5 kg
- Width
39 cm
- Keyboard layout
English, QWERTY
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2902611 Hazet 9040N-13 Air hose recoiler 15 m 20 bar
User & Safety Instructions
User & Safety Instructions 2902611 Hazet 9040N-13 Air hose recoiler 15 m 20 bar
Description
Automatic hose reel creates order in the workshop - no lying around hose, thus reducing the risk of accidents. Hose stop at any point thanks to stop at any point. Clean winding thanks to automatic guiding. Brake winding to prevent risk of accident.
This text is machine translated.
This text is machine translated.
Features
- Suitable for compressed air or water
- Integrated drilling template for mounting on cardboard packaging
- Fulfils all relevant provisions of EC Directive Machinery 2006/42/EC
- Closed special plastic housing with swivel bracket made of metal for individual mounting at the work place Drill hole distance retaining bracket: 186 mm
