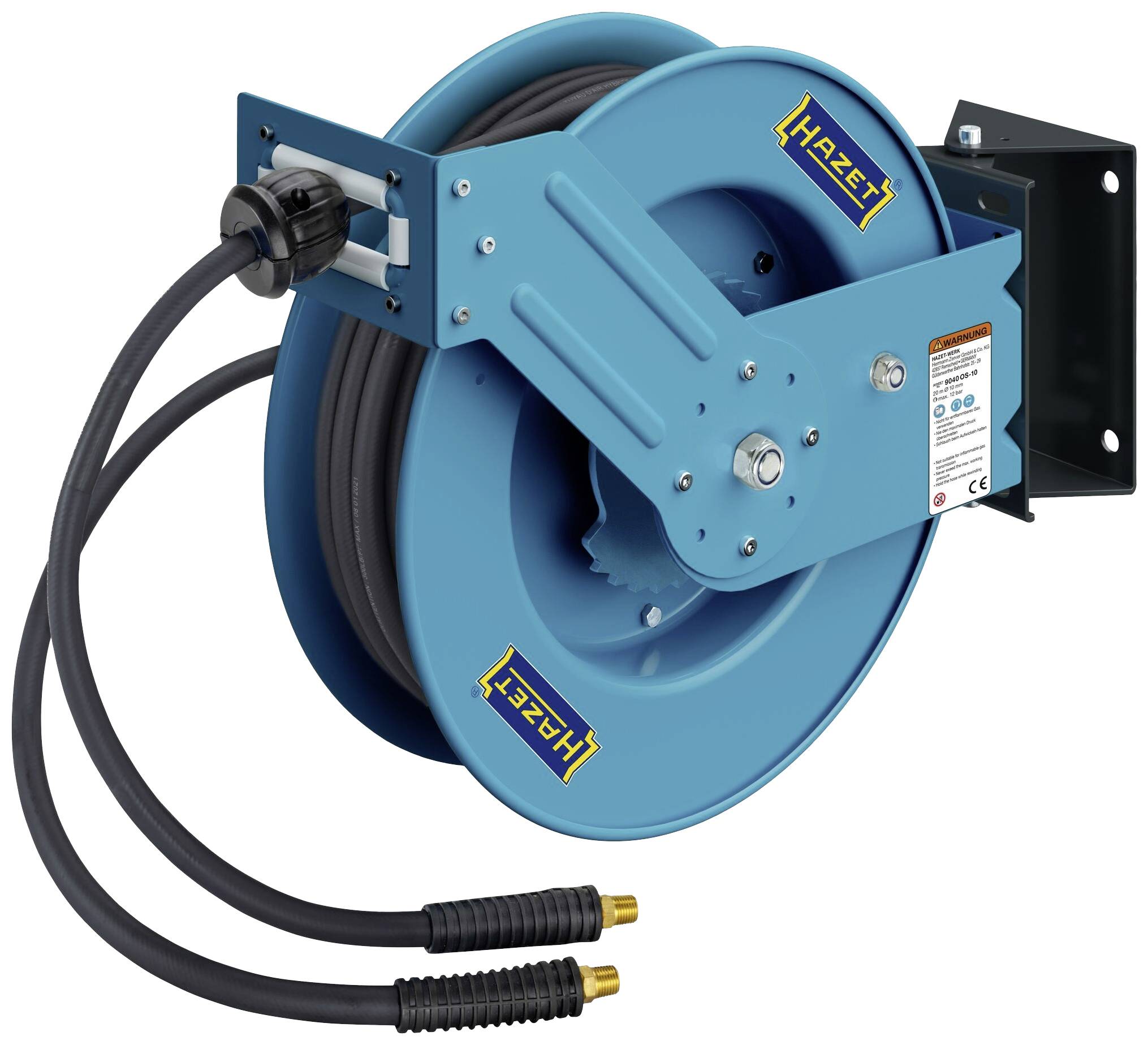

Hazet 9040OS-10 Air hose reel 20 m 12 bar Wall mount
EAN:
Part number:
Item no:
Highlights & Details
Hazet hose open 9040OS-10
- Automatic hose reel creates order in the workshop - no lying around hose, thus reducing the risk of accidents
- This text is machine translated.
Technical specifications
- Product type
Air hose reel
- Features
Wall mount
- Length
20 m
- Connector
3/8" (9,525 mm)
- Max. operating pressure
12 bar
- Content
1 pc(s)
- Inside diameter
10 mm
- Weight
11.7 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3017786 Hazet 9040OS-10 Air hose reel 20 m 12 bar Wall mount
Description
Features
- Robust steel design with roller track
- For Compressed air
- German air connection nipple for air intake (9000-015)
- End stop
- Spring return with ratchet handle holders
- Hybrid polymer-hose, black
- Integrated roller inlet
- Swivelling base - maximum Tilt range: 180 °
- Open construction to prevent accumulation of dirt
- Visual inspection of the hose
- Connection hose length 1 m.

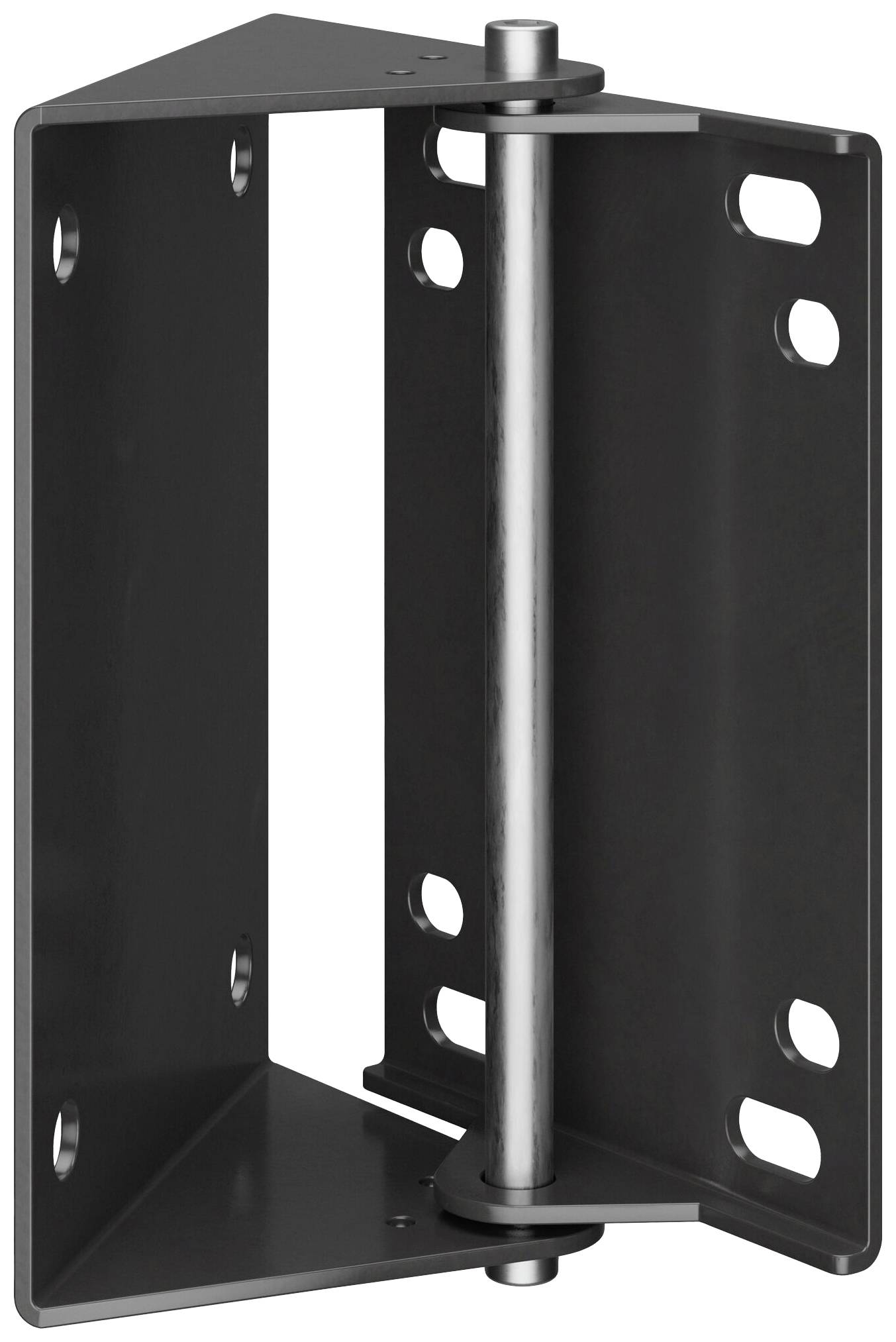

- Mounting via metal bracket or rotary base (included)
- Drilling template on cardboard packaging for easy installation
- Dimensions: 400 x 186 x 522 mm (Including swiveling base)
- Can be used with Hazet safety coupling 9000-061
- Inlet air connection: External thread 16.41 mm (3/8″)
- Air connection outlet: External thread 16.41 mm (3/8″)
- Dimensions/length 400 mm x 186 mm x 426 mm
- Temperature range -40°C to 60°C.
