Hazet 9070-4 9070-4 Pneumatic maintenance unit 1/4" (6,35 mm) 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Pneumatic maintenance unit
- Connector
1/4" (6,35 mm)
- External thread
1/4" (6.3 mm)
- Weight
0.58 kg
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 805144 Hazet 9070-4 9070-4 Pneumatic maintenance unit 1/4" (6,35 mm) 1 pc(s)
Description
Features

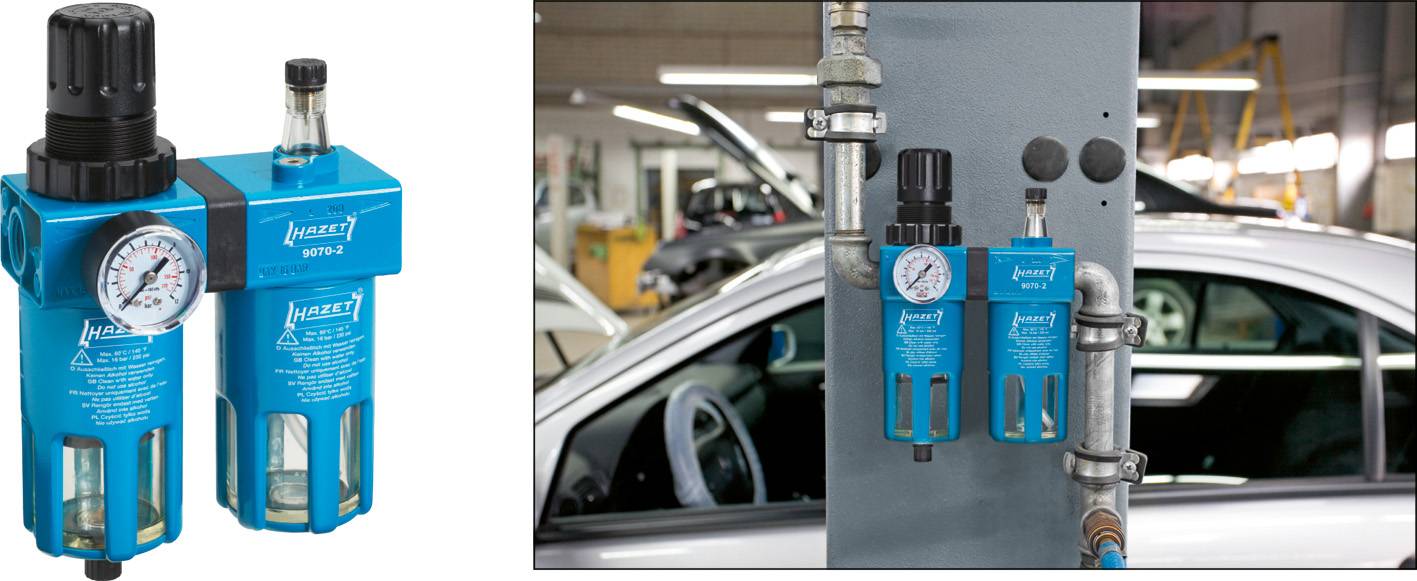

- 2-way, consisting of Filter pressure reducer, oil-mist lubricator and manometer
- Pressure gauge connection: 3.2 mm (1/8")
- Max. Pressure: 16 bar (1/2 and 3/8) 12 bar (1/4"), Max. working pressure: 12 bar (1/2 and 3/8) 10 bar (1/4")
- Pressure Display: 0.5 - 12 bar
- Permissible temperature range: -10 to + 55 °C
- 10 µm filter efficiency:
- To use oil: Olklasse F (Sprinter ADVP22)
- Connection: 6.3 mm (1/4")
- air passage at 6.3 bar: 1800 Nl/min
- Full Capacity Filter pressure reducer: 30 ml
- Full Capacity Entoler: 40 ml.
Hints
This text is machine translated.
