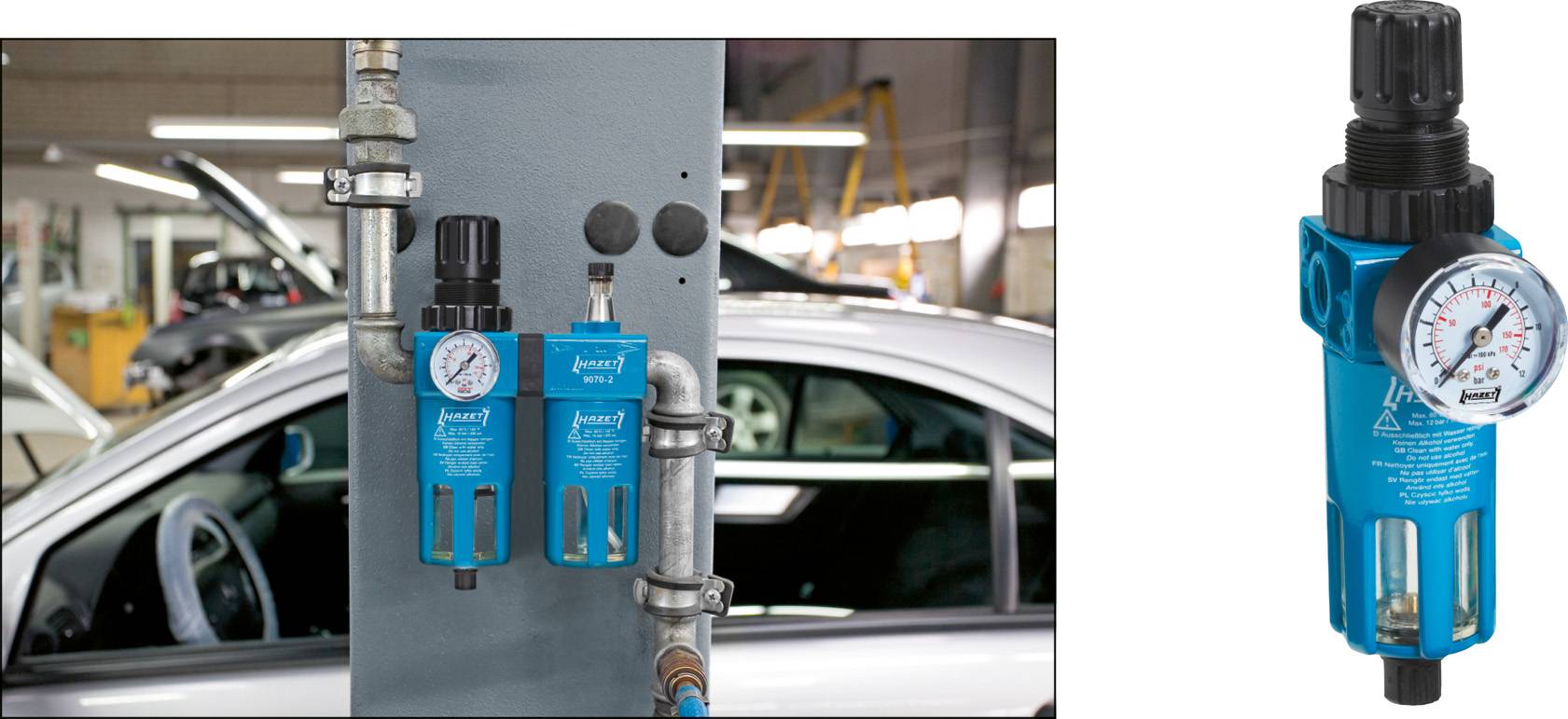

Hazet 9070-7 9070-7 Filter pressure reducer 1/4" (6,35 mm) 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Connection Pressure gauge: 1/8"
- Max pressure: 16 bar (1/2" and 3/8") and 12 bar (1/4")
- Pressure Display: 0.5 - 12 bar
- Capacity Filter pressure reducer: 50 ml
- Product type
Filter pressure reducer
- Connector
1/4" (6,35 mm)
- Weight
0.38 kg
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 805147 Hazet 9070-7 9070-7 Filter pressure reducer 1/4" (6,35 mm) 1 pc(s)
Description
Features
- Consisting of filter-pressure reducer and manometer
- Connection manometer: 32 mm (1/8″)
- Max pressure: 16 bar (1/2″ and3/8″) 12 bar (1/4″), - max working pressure: 12 bar (1/2″ and3/8″) 10 bar (1/4″)
- Pressure indication: 05 - 12 bar
- Permissible temperature range: -10 up to +55 °C
- Filter grade: 10 µm
- Capacity filter-pressure reducer: 50 ml
- Air inlet thread: 12,91 mm (1/4″)
- Air inlet thread 1291 mm (1⁄4″)
- Air flow at 63 bar: 1800 Nl/min
- Net weight: 038 kg
Scope of delivery
- Filter pressure reducer
- pressure gauge.
Hints
This text is machine translated.
