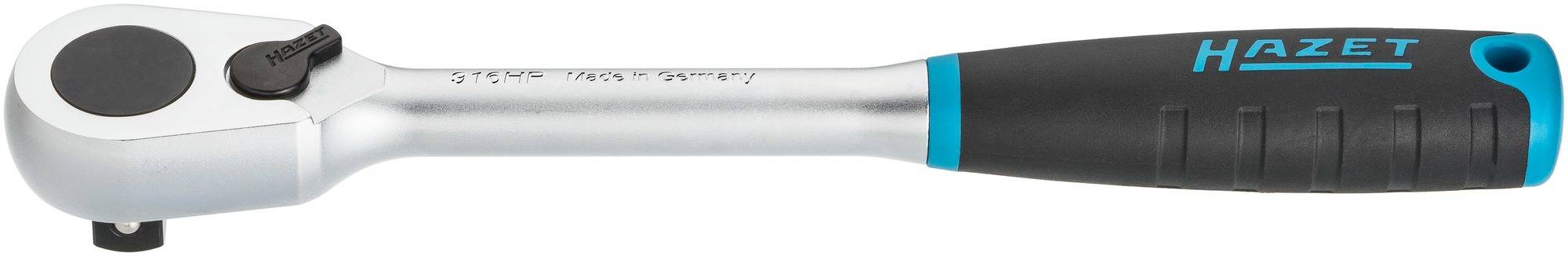

Hazet 916 HP 916HP Forward/reverse ratchet 1/2" (12.5 mm) 275 mm
EAN:
Part number:
Item no:
Technical specifications
- Product type
Forward/reverse ratchet
- Downforce
1/2" (12.5 mm)
- No. of teeth
90
- Max. torque
1000 Nm
- Length
275 mm
- Weight
0.6 kg
- Width
70 mm
- Height
40 mm
- Dim
(L x W x H) 275 x 70 x 40 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1674085 Hazet 916 HP 916HP Forward/reverse ratchet 1/2" (12.5 mm) 275 mm
Description
Application: small control angle (4°) allows use in confined spaces, e.g. engine, mechanical engineering, agricultural vehicles and devices, renewable energy (solar, wind turbine). Extremely more power with the same dimensions latch function of the lever offers protection against accidental switching. Increase in life through the use of state-of-the-art lubricants in the ratchet mechanism. Narrow production tolerances ensure protection from penetrating contamination. HAZET internal quality standards guarantee load-carrying capacity far beyond standard brilliant, easy to clean, corrosion-resistant. Integrated hanging option in the handle. VPA tested, static torque in accordance with DIN 3122:1000 Nm. HAZET, 2-component handle. Number of teeth: 90 (pressing angle 4°). With ball lock. Surface chrome-plated. DIN 3122, ISO 3315. Total length: 275 mm. Drive: Square substantial 12.5 mm (1/2 inch). Net weight (kg): 0.59 kg.
This text is machine translated.
This text is machine translated.
