Hazet 995S6-T50LG 995S6-T50LG Star socket Screwdriver bit T 50 1/2" (12.5 mm)
EAN:
Part number:
Item no:
Highlights & Details

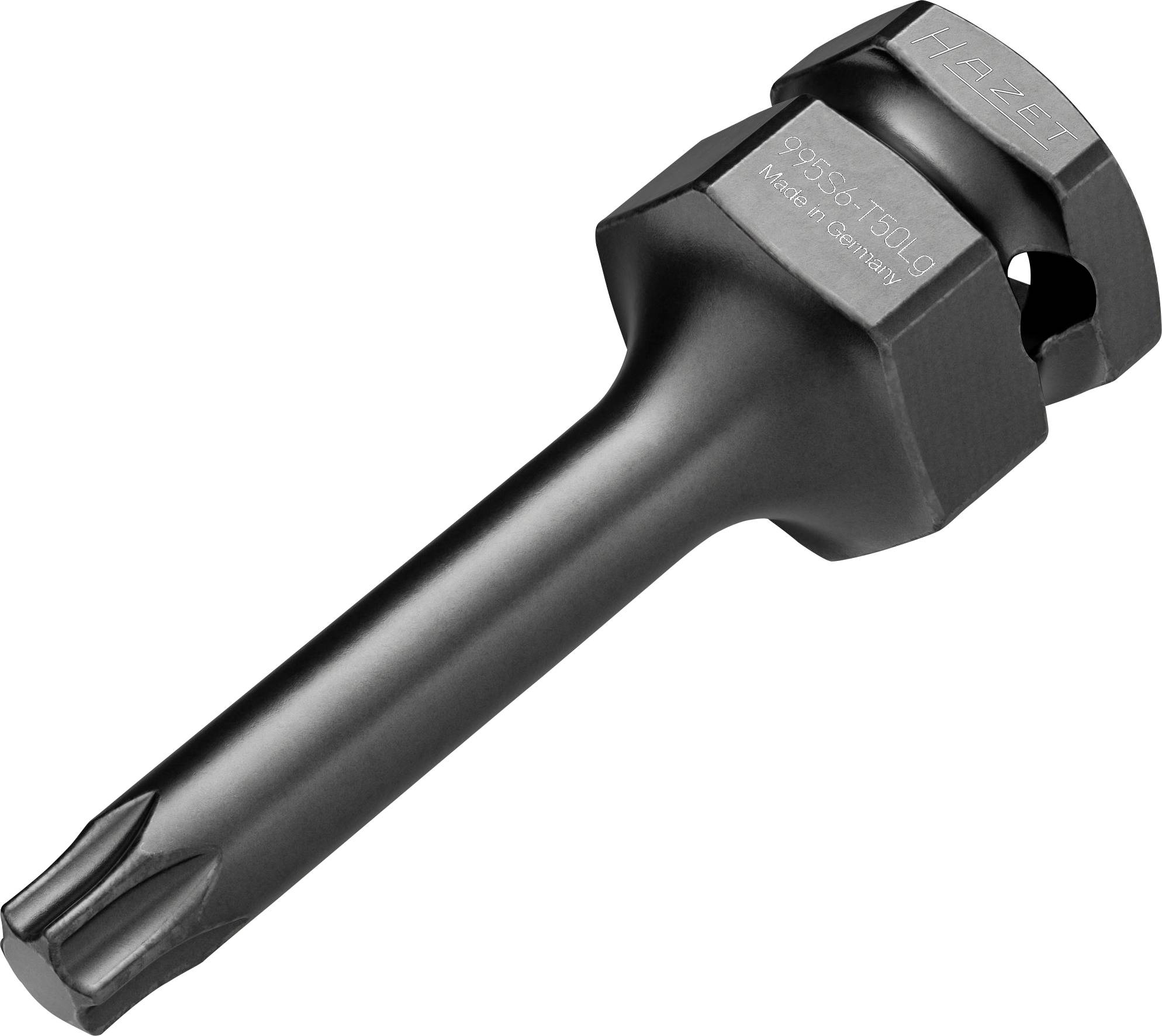

Hazet Torx screwdriver insert T50LG
- Hazet impact, machine screwdriver socket wrench inserts 995S6-T50LG ∙ 1/2 inch (12.5 mm) square, 24 mm outer hexagon ∙ Inner TORX® profile ∙ SW T50
Technical specifications
- Product type
Screwdriver bit
- Drive
1/2" (12.5 mm)
- Size
T 50
- Downforce
Star socket
- Length
75 mm
- Max. length
75 mm
- Material properties
phosphated
- Width
75 mm
- Weight
0.086
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3330500 Hazet 995S6-T50LG 995S6-T50LG Star socket Screwdriver bit T 50 1/2" (12.5 mm)
Description
Application: - Bolts to commercial vehicles and passenger cars with inside TORX® profile - e.g. to chassis, braking systems.
Internal square 3⁄4″ (20 mm) drive allows transmission of high release forces.
Alternatively, square drive 1⁄2″ (12.5 mm) or - external hexagon 24 mm.
With a hole for locking pin or safety spring and groove for O-ring.
Safety insert system, 2-component soft foam insert.
Surface: Phosphated, oiled.
Made in Germany.
Drive: 1/2 inch (12.5 mm) square, 24 mm outer hexagon.
Output: Inside TORX® profile.
Width across flats: ∙ T50.
Dimensions / length 75 mm
Length l1: 43 mm.
For machine operation.
This text is machine translated.
