Hazet Coil hose 9040S-10 9040S-10 Polyurethane Blue Inside diameter: 10 mm 10 bar 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Factory colour
Blue
- Dim
(L x W x H) 7.62 m x 400 mm x 400 mm
- Manufacturer part #
9040S-10
- Content
1 pc(s)
- Height
400 mm
- Length
7.62 m
- Width
400 mm
- Inside diameter
10 mm
- Keyboard layout
English, QWERTY
- Material
Polyurethane
- Operating medium
Compressed air
- Max. operating pressure
10 bar
- Max. temperature
+60 °C
- Min. temperature
-20 °C
- Weight
7070 g
- UKCA
not relevant
- Product type
Coil hose
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2902614 Hazet Coil hose 9040S-10 9040S-10 Polyurethane Blue Inside diameter: 10 mm 10 bar 1 pc(s)
Description

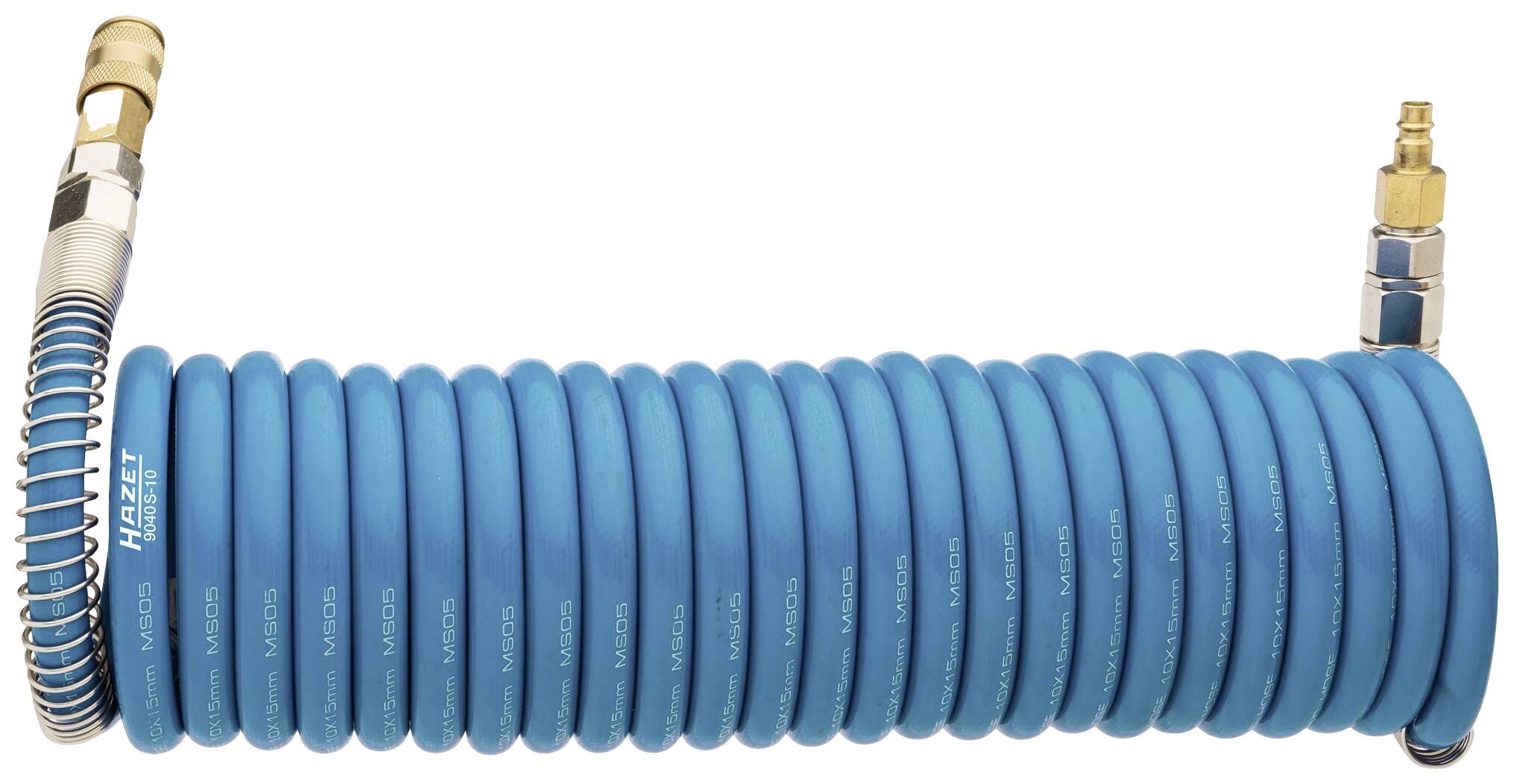

Flexible connection of pneumatic tools. Highly flexible polyurethane hose with a length of 7.62 m and 10 mm inner⌀.
This text is machine translated.
This text is machine translated.
Features
- Hose inner diameter 10 mm
- 360 ° swivel to the connectors
- Burst pressure in accordance with DIN:60 bar
- Operating pressure 10 bar
- Air connection thread: 3⁄8″
- Working length: 50% to 80% of hose length
- Silicone-free
- Maximum flexibility
- Highly abrasion-resistant
- Dimensionally stable
- Inlet air connection: External thread 16.41 mm (3/8″)
- Air connection outlet: External thread 16.41 mm (3/8″)
