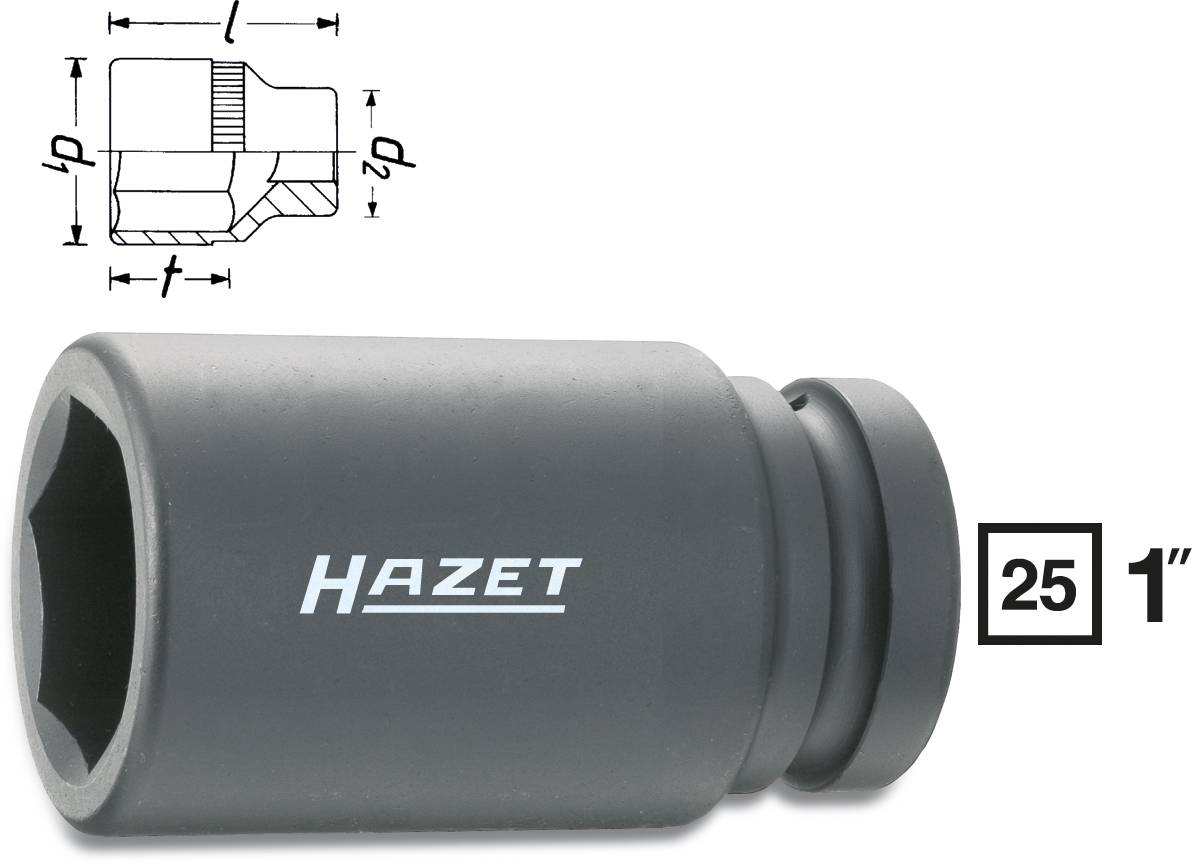

Hazet 1100SLG-38 Kraft bit 1" (25 mm) 1100SLG-38
EAN:
Part number:
Item no:
Number
Total (€ 100.83 / piece)
€ 100.83
plus VAT.
Technical specifications
- Product type
Kraft bit
- Drive
1" (25 mm)
- Material
Chromium-vanadium special steel
- Material properties
phosphated
oiled
- Spanner size
38 mm
- Downforce
Hex head
- DIN standard
DIN 3129
- Length
110 mm
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1287341 Hazet 1100SLG-38 Kraft bit 1" (25 mm) 1100SLG-38
Description
Long style · For machine operation. · Square (Robertson) Drive 25 = 1". · Surface: phosphated. DIN 3124 · ISO 2725-1 Made in Germany
Features
- Long design
- With borehole for locking pin or safety spring and grove for O-ring
- Surface: phosphatised, oiled
- DIN 3129, ISO 2725-2
- Made in Germany
- Wrench size: 38
- Total length (for eClass): 110 mm
- Drive: Square, hollow 25 mm (1 inch)
- Output: Outside hexagon profile
- Diameter d1 (output side): 59 mm
- Diameter d2 (drive side): 54 mm
- Net weight: 138 kg
Hints
This text is machine translated.
