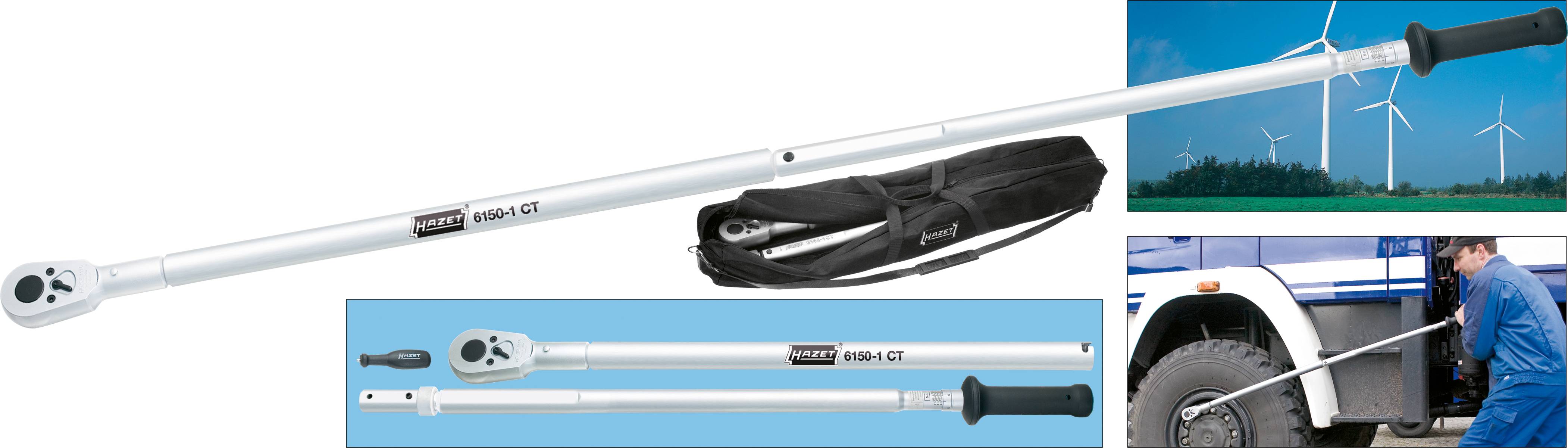

Hazet System 6000 CT 6150-1CT Torque wrench Forward/reverse ratchet 3/4" (20 mm) 400 - 1000 Nm
EAN:
Part number:
Item no:
Highlights & Details
HAZET Torque wrench 6150-1CT
- With square opening
- Triggering accuracy ± 4%
Technical specifications
- Scale graduation 5 Nm
- Tolerance 3 %
- Tripping force only 590 N (60 kg) at 1000 Nm
- Length 903 mm, handle ratchet shaft 930 mm
- Product type
Torque wrench
- Features
Forward/reverse ratchet
- Downforce
3/4" (20 mm)
- Torque (min.)
400 Nm
- Torque (max.)
1000 Nm
- Trigger accuracy
3 %
- Graduation
5 Nm
- Length
1788 mm
- Weight
10 kg
- Width
125 mm
- Height
75 mm
- Standards
DIN EN ISO 6789:2003; Square according to DIN 3120 A, ISO 1174-1 A
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 804697 Hazet System 6000 CT 6150-1CT Torque wrench Forward/reverse ratchet 3/4" (20 mm) 400 - 1000 Nm
Description
Features
- For highest torque values
- Especially suited for industrial climbers
- Application on wind turbines, dockyards, heavy industry, on commercial vehicles etc
- To be disassembled in two parts (6170-1 CT: three parts) with release tool
- In carrier bag with carrying handle and shoulder strap
- Release accuracy tolerance ± 3% of scale value (in direction of actuation) (6170-1 CT ± 4%)
- Screw tightening also possible with ratchet shaft For torque controlled screw tightening always use the complete wrench
- 2-component handle for improved feel
- Simplified locking for adjusting the torque value
- Viewing window for visual checking of the locking
- With 3 additional coloured coding rings for markings with personalizations or special workflows
- Made in Germany
- 1000 Nm Torque wrench - Weight only approx 10 kg
- Actuating force only 590 N (60 kg) at 1000 Nm
- Length of ratchet shaft 903 mm, handle 930 mm
- Total length (for eClass): 1789 mm
- Output: Square, solid 20 mm (3/4 inch)
- Net weight: 10 kg
