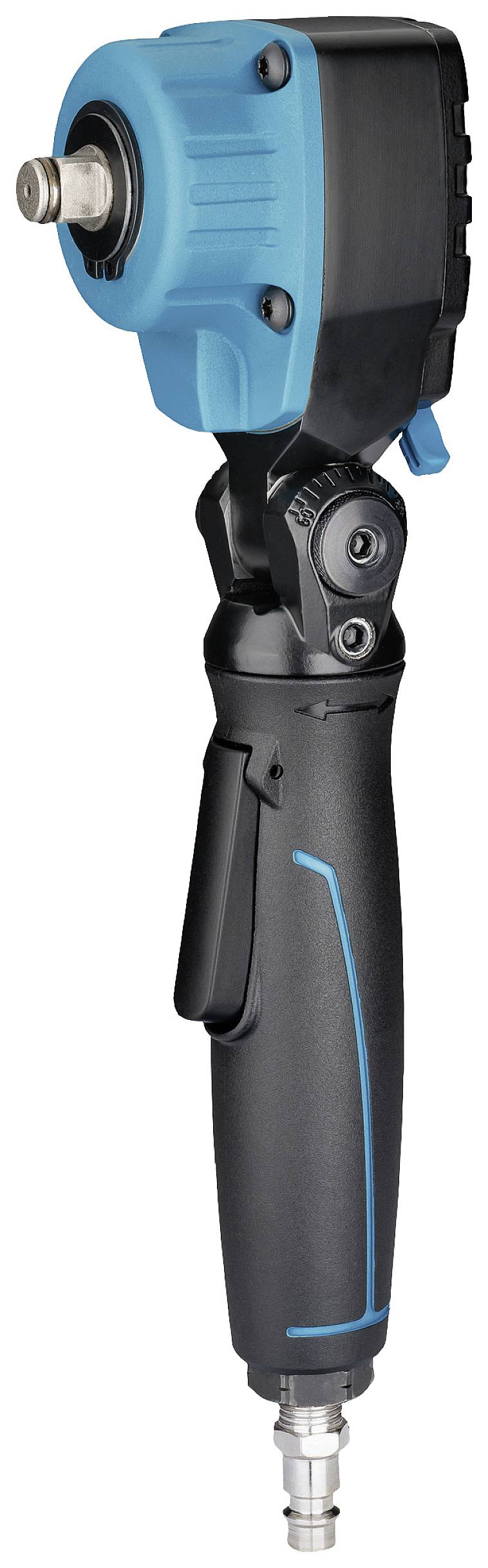

Hazet Twin Turbo 9012ATT Pneumatic impact driver Torque (max.): 550 Nm
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Twin Turbo impact driver
- Torque (max.): 550 Nm
Technical specifications
- Product type
Pneumatic impact driver
- Connector
1/2" (12,7 mm)
- Max. operating pressure
6.3 bar
- Torque (max.)
550 Nm
- Weight
1.3 kg
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2310788 Hazet Twin Turbo 9012ATT Pneumatic impact driver Torque (max.): 550 Nm
User & Safety Instructions
User & Safety Instructions 2310788 Hazet Twin Turbo 9012ATT Pneumatic impact driver Torque (max.): 550 Nm
Description
Features
- Maximum loosening torque: 550 Nm
- Air exhaust by pushing down the handle
- Low vibration
- Easy to Use
- Handle / trigger adjustable around the own axis for optimum handling enables actuation in every position
- Swivel mechanism for extended range of application guarantees best accessibility
- Short, compact angled design - only 70 mm
- One-handed operation for left and right-handed people
- High-performance twin-hammer impact.
- Air inlet: Internal thread 12.91 mm (1/4″)
- Coupling connector: Nominal diameter 7.2 (included)
- Recommended torque: 450 Nm
- Hose diameter (recommended): 10 mm
- Operating pressure (bar): 6.3
- Sound power level (at operating pressure): 101.1 db(A) LP W.
- Vibration acceleration: 4.89 m/s2
- Loosening torque (max) determined with screw size M: 16
- Forward/reverse operation: Single-stage (right/left)
- Cold insulating handle
- Output: Square solid 12.5 mm (1/2 inch)
- Dimensions / length: 85 mm x 64 mm x 227 mm
- Tightening torque max. 500 Nm
- Maximum loosening torque: 550 Nm
- Sound pressure level (at operating pressure): 90.1 dB(A) LP A.
- Revolutions/minute: 8000
- Air demand [l/min]: 113 l/min (1.9 l/sec)
- This text is machine translated.
