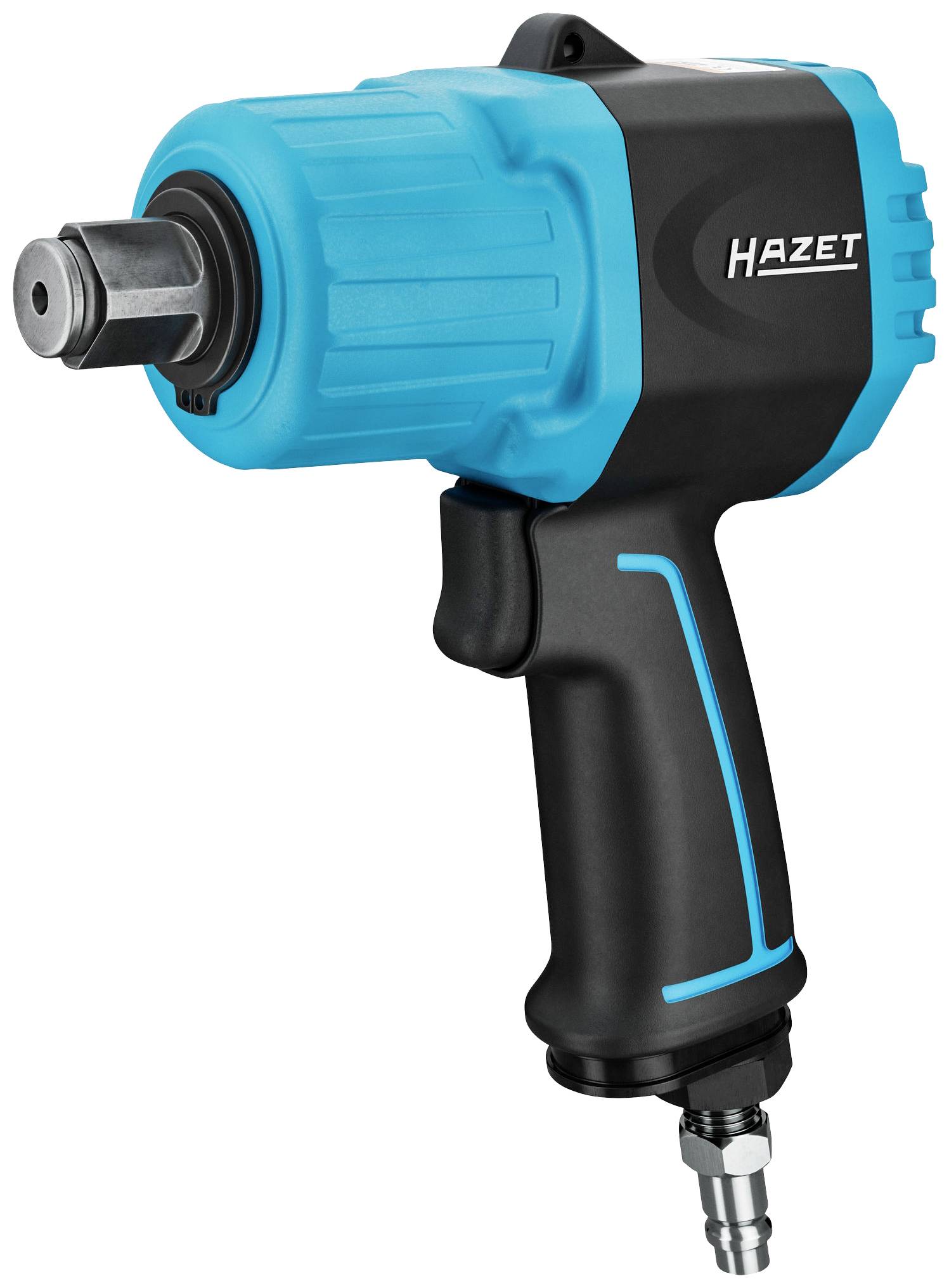

Hazet Twin Turbo 9013MTT Pneumatic impact driver Torque (max.): 1300 Nm
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Hazet twin turbo impact driver 9013MT ∙ Release torque maximum [Nm]: 1890 Nm ∙ 3/4 inch (20 mm) square ∙ High-performance double hammer action
- Torque (max.): 1300 Nm
Technical specifications
- Output: 3/4 in. (20 mm) square
- Tightening torque max. Nm:1300 Nm
- Loosening torque max. [Nm]: 1890 Nm
- Sound pressure level (at operating pressure): 99.3 dB(A) LP A
- Air consumption [l/min]: 150 l/min (2.5 l/sec)
- Inlet air connection: Internal thread 12.91 mm (1/4″)
- Coupling socket: Normal diameter 7.2 (included)
- Recommended torque: 900 Nm
- Hose diameter (recommended): 10 mm
- Sound power level (at operating pressure): 110.3 dB(A) LP W.
- Vibration acceleration 11.39 m/s2
- Loosening torque (max) determined with screw size M: 26
- Product type
Pneumatic impact driver
- Max. operating pressure
6.3 bar
- Torque (max.)
1300 Nm
- Rotational speed (max.)
8000 U/min
- Air consumption
150 l/min
- Weight
1.7 kg
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3192038 Hazet Twin Turbo 9013MTT Pneumatic impact driver Torque (max.): 1300 Nm
User & Safety Instructions
User & Safety Instructions 3192038 Hazet Twin Turbo 9013MTT Pneumatic impact driver Torque (max.): 1300 Nm
Information
Information 3192038 Hazet Twin Turbo 9013MTT Pneumatic impact driver Torque (max.): 1300 Nm
Conformity certificate
Conformity certificate 3192038 Hazet Twin Turbo 9013MTT Pneumatic impact driver Torque (max.): 1300 Nm
Spare part list
Spare part list 3192038 Hazet Twin Turbo 9013MTT Pneumatic impact driver Torque (max.): 1300 Nm
