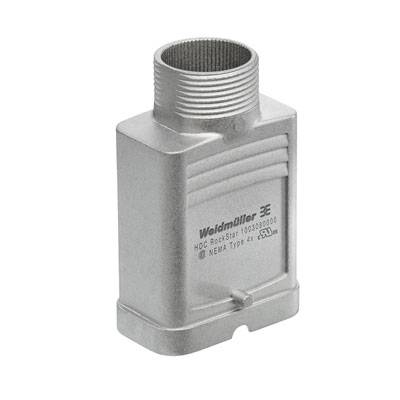

HDC enclosures, Size: HQ, Protection degree: IP 65, Cable entry from top, Plug housing, Side-locking clamp on lower side
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Connector housing
Type
HDC HQM TOLU 1PG21
Manufacturer part #
1003080000
Connection
Connector
Datasheet (PDF)
Highlights & Details
Connector housing
- HDC HQM Ulu Ko * 1 PG 21
Technical specifications
- Number of cable inputs top: 1
- Size: HQ
- Width: 35 mm
- EMC Housing: Yes
- Size of cable inputs: PG 21
- Height: 77.5 mm
- Cable input: With thread
- Surface: Nickel-plated
- Depth: 50 mm
- Packaging type
Piece
- Type
HDC HQM TOLU 1PG21
- Product type
Connector housing
- Manufacturer part #
1003080000
- Connection
Connector
- Content
1 pc(s)
- Material
Zinc (die-cast)
- Suitable for
HQ
IP65
- Max. temperature
+125 °C
- Height
77.5 mm
- Length
50 mm
- Width
35 mm
- Features
+ transverse brace on the bottom part
Cable input (straight)
+ thread
- Series
RockStar® HDC HQM
- Thread size
PG21
- Case material
Diecast zinc
- Min. temperature
-40 °C
- Weight
200 g
35
TRUE
78 mm
50 mm
Grey
Double locking levers
0
FALSE
TRUE
Zinc
Other
-40-125 °C
Other
Plug case
IP65
Other
Above
Base unit
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 195470 HDC enclosures, Size: HQ, Protection degree: IP 65, Cable entry from top, Plug housing, Side-locking clamp on lower side
User & Safety Instructions
User & Safety Instructions 195470 HDC enclosures, Size: HQ, Protection degree: IP 65, Cable entry from top, Plug housing, Side-locking clamp on lower side
Description
The special die-cast alloy and the multi-layered surface sealing provide complete protection for the HDC housings.
The cleverly designed interlock system is manufactured from stainless steel. This guarantees a long lifespan with high resistance to corrosion and impact.
The housing interlock system provides integrated safety. Our unique, patented spring system provides the housing interlock with a secure grip and prevents accidental opening.
The laser marking allows for easy and quick identification. Each housing is permanently labelled with a laser marking so that each product can be quickly designated and positioned.
Weidmüller RockStar® IP 65 / NEMA Type 4X housings - your first choice for industrial housings with IP 65 protection. The HQ version now offers particular protection - the bulkhead housing (cover and metal clamp) can be secured with a padlock.
The cleverly designed interlock system is manufactured from stainless steel. This guarantees a long lifespan with high resistance to corrosion and impact.
The housing interlock system provides integrated safety. Our unique, patented spring system provides the housing interlock with a secure grip and prevents accidental opening.
The laser marking allows for easy and quick identification. Each housing is permanently labelled with a laser marking so that each product can be quickly designated and positioned.
Weidmüller RockStar® IP 65 / NEMA Type 4X housings - your first choice for industrial housings with IP 65 protection. The HQ version now offers particular protection - the bulkhead housing (cover and metal clamp) can be secured with a padlock.
