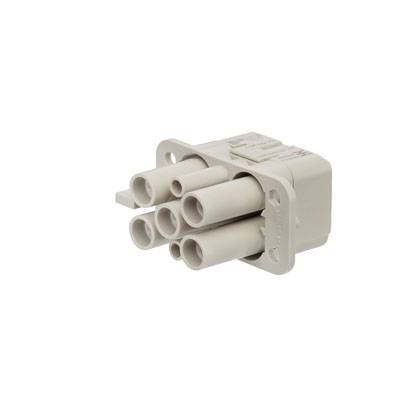

HDC insert, Female, 690 V, 40 A, No. of poles: 6, Crimp connection, Size: HQ
EAN:
Part number:
Item no:
Product type
Pin inset
Connection
Crimp
Series
RockStar® HDC HQ
Features
copper-plated
Total no. of pins
4 + 2 + PE
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.03
5
6% = € 0.32
€ 4.71
10
9% = € 0.46
€ 4.57
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.03 / piece)
€ 5.03
plus VAT.
Only 5 Piece(s) available
Highlights & Details
HDC insert, Female, 690 V, 40 A, No. of poles: 6, Crimp connection, Size: HQ
- HDC HQ 4/2 FC
Technical specifications
- Net weight: 15 g
- Temperature limit: -40 °C ... 125 °C
- Insulation resistance: 1010 Ω
- Pollution degree: 3
- Width: 22.4 mm
- Height: 39.8 mm
- Depth: 41.6 mm
- Height Socket: 39.8 mm
- Length Socket: 41.6 mm
- Size: HQ
- series: HQ
- Rated voltage (DIN EN 61984): 690 V
- Rated voltage according to UL/CSA: 600 V AC/DC
- Rated voltage (DIN EN 61984): 6 kV
- Rated current (DIN EN 61984): 40 A
- flammability class according to UL 94: V-0
- Forward resistance: ≤ 1 mΩ, ≤ 4mΩ
- Insulation material: PC glass-fiber reinforced (UL-listed and railway-qualified)
- Insulation material group: IIIA
- Plug cycles AG: ≥ 500
- Plug cycles Au: ≥ 500
- Connection type PE: Crimp connection
- conductor cross-section AWG (PE), max.: AWG 10
- conductor cross-section AWG (PE), min.: AWG 16
- Wire stripping length Rated connection: 9 mm
- PE 9 mm
- Number of power contacts: 4
- Product type
Pin inset
- Series
RockStar® HDC HQ
- Features
copper-plated
- Connection
Crimp
- Total no. of pins
4 + 2 + PE
- Core cross section (max.)
6 mm²
- Number of pins
4
2
- Core cross section (min.)
1.5 mm²
- Core cross section power contact (max.)
6 mm²
- Core cross section power contact (min.)
1.5 mm²
- Core cross section controller contact (max.)
2.5 mm²
- Core cross section controller contact (min.)
0.14 mm²
- Content
1 pc(s)
- Leading contact (PE)
Yes
22.4
39.8 mm
41.6 mm
690 V
6
Bus
-40-125 °C
V0
6 kV
Crimp connection
Silver
3
1.5-6 mm²
1.5-6 mm²
1.5-6 mm²
TRUE
Other copper alloys
40 A
Thermoplastic
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 195481 HDC insert, Female, 690 V, 40 A, No. of poles: 6, Crimp connection, Size: HQ
User & Safety Instructions
User & Safety Instructions 195481 HDC insert, Female, 690 V, 40 A, No. of poles: 6, Crimp connection, Size: HQ
Description
The HQ series - big features in a compact design The electrical values speak for themselves. You can also use the established HD- and HX-crimp contacts here.
The wire connection level is designed as a crimp contact The established crimp connection has been used as a standard for decades.
Crimp contacts are not delivered with the inserts.
Pole count: 4/2 (+PE)
Rated current: 40/10 A
Rated voltage: 690 / 250 V
Nominal voltage acc. to UL/CSA: 600 V AC/DC
Crimp connection
The wire connection level is designed as a crimp contact The established crimp connection has been used as a standard for decades.
Crimp contacts are not delivered with the inserts.
Pole count: 4/2 (+PE)
Rated current: 40/10 A
Rated voltage: 690 / 250 V
Nominal voltage acc. to UL/CSA: 600 V AC/DC
Crimp connection
