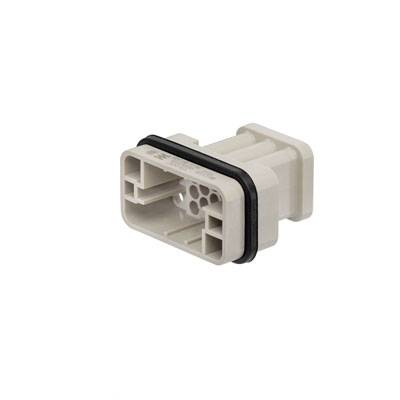

HDC insert, Male, 250 V, 10 A, No. of poles: 17, Crimp connection, Size: HQ
EAN:
Part number:
Item no:
Product type
Pin inset
Connection
Crimp
Series
RockStar® HDC HQ
Features
copper-plated
Total no. of pins
17 + PE
Datasheet (PDF)
Highlights & Details
HDC insert, Male, 250 V, 10 A, No. of poles: 17, Crimp connection, Size: HQ
- HDC HQ 17 MC
Technical specifications
- Net weight: 17 g
- Temperature limit: -40 °C ... 125 °C
- Insulation resistance: 1010 Ω
- Pollution degree: 2
- Width: 22.4 mm
- Height: 38.7 mm
- Depth: 41.6 mm
- Length Socket: 41.6 mm
- Size: HQ
- series: HQ
- Rated voltage (DIN EN 61984): 250 V
- Rated voltage according to UL/CSA: 600 V AC/DC
- Rated surge voltage (DIN EN 61984): 4 kV
- Rated current (DIN EN 61984): 10 A
- flammability class according to UL 94: V-0
- Forward resistance: ≤ 4mΩ
- Insulation material: PC glass fiber reinforced (UL listed and railway qualified)
- Insulation material group: IIIA
- Plug cycles AG: ≥ 500
- Plug cycles Au: ≥ 500
- Connection type PE: Crimp connection
- Wire cross-section AWG (PE), max.: AWG 14
- Wire cross-section AWG (PE), min.: AWG 26
- Wire stripping length Rated connection: 8 mm
- Wire stripping length PE connection: 8 mm
- height plug: 38.7 mm
- Product type
Pin inset
- Series
RockStar® HDC HQ
- Features
copper-plated
- Connection
Crimp
- Total no. of pins
17 + PE
- Core cross section (max.)
2.5 mm²
- Number of pins
17
- Core cross section (min.)
0.14 mm²
- Content
1 pc(s)
- Leading contact (PE)
Yes
22.4
38.7 mm
41.6 mm
250 V
17
Pin
-40-125 °C
V0
4 kV
Crimp connection
Silver
2
0.14-2.5 mm²
0.14-2.5 mm²
0.14-2.5 mm²
TRUE
Other copper alloys
10 A
Thermoplastic
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 195486 HDC insert, Male, 250 V, 10 A, No. of poles: 17, Crimp connection, Size: HQ
User & Safety Instructions
User & Safety Instructions 195486 HDC insert, Male, 250 V, 10 A, No. of poles: 17, Crimp connection, Size: HQ
Description
The HQ series - big features in a compact design The electrical values speak for themselves. The standard HE crimp contacts can also be used here.
The wire connection level is designed as a crimp contact The established crimp connection has been used as a standard for decades.
Crimp contacts are not delivered with the inserts.
Pole count: 17 (+PE)
Rated current: 10 A
Rated voltage 250 V
Nominal voltage acc. to UL/CSA: 600 V AC/DC
Crimp connection
The wire connection level is designed as a crimp contact The established crimp connection has been used as a standard for decades.
Crimp contacts are not delivered with the inserts.
Pole count: 17 (+PE)
Rated current: 10 A
Rated voltage 250 V
Nominal voltage acc. to UL/CSA: 600 V AC/DC
Crimp connection
