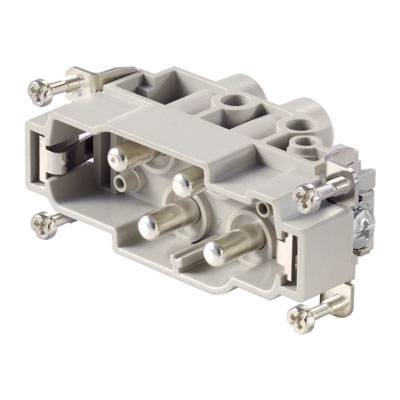

HDC insert, Male, 830 V, 80 A, No. of poles: 4, Screw connection, Size: 6
EAN:
Part number:
Item no:
Product type
Pin inset
Connection
Screws
Series
RockStar® HDC
Features
copper-plated
Total no. of pins
4 + PE
Datasheet (PDF)
Highlights & Details
HDC insert, Male, 830 V, 80 A, No. of poles: 4, Screw connection, Size: 6
- HDC S 4/0 MS
Technical specifications
- Net weight: 109 g
- Temperature limit: -40 °C ... 125 °C
- Insulation resistance: 1010 Ω
- Pollution degree: 3
- Width: 34 mm
- Height: 42 mm
- Depth: 84.5 mm
- Length Socket: 84.5 mm
- Size: 6
- Series: MixMate
- Rated voltage (DIN EN 61984): 830 V
- Rated voltage according to UL/CSA: 600 V AC/DC
- Rated surge voltage (DIN EN 61984): 8 kV
- Rated current (DIN EN 61984): 80 A
- flammability class according to UL 94: V-0
- Forward resistance: ≤ 1 mΩ
- Insulation material: PC glass-fiber reinforced (UL-listed and railway-qualified)
- Insulation material group: IIIA
- plug-in cycles AG: ≥ 500
- Connection type PE: Screw connection
- conductor cross-section AWG (PE), max.: AWG 6
- wire cross-section AWG (PE), min.: AWG 20
- Wire stripping length Measurement connection: 15 mm
- Wire stripping length PE connection: 13 mm
- Tightening torque max. PE-PE 2.5 Nm
- Tightening torque min. PE connection: 2 Nm
- Mounting screw: M 5
- Cross-head blade dimension: GR. PH2
- Slotted blade dimension (PE connection): SD 1.2 x 6.5
- Surface: Silver passivated
- Material: Copper alloy
- Blade dimension Slotted (screw connection): 1.0 x 5.5 mm
- Height Plug: 42 mm
- Number of power contacts: 4
- Product type
Pin inset
- Series
RockStar® HDC
- Features
copper-plated
- Connection
Screws
- Total no. of pins
4 + PE
- Core cross section (max.)
16 mm²
- Number of pins
4
- Core cross section (min.)
1.5 mm²
- Core cross section power contact (max.)
16 mm²
- Core cross section power contact (min.)
1.5 mm²
- Content
1 pc(s)
- Leading contact (PE)
Yes
34
42 mm
84.5 mm
830 V
4
Pin
-40-125 °C
V0
8 kV
Screw connection
Silver
3
0.5-16 mm²
0.5-16 mm²
0.5-16 mm²
1.5-16 mm²
TRUE
Other copper alloys
80 A
Thermoplastic
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 195788 HDC insert, Male, 830 V, 80 A, No. of poles: 4, Screw connection, Size: 6
User & Safety Instructions
User & Safety Instructions 195788 HDC insert, Male, 830 V, 80 A, No. of poles: 4, Screw connection, Size: 6
Description
The MixMate series of connectors can simultaneously transmit high rated currents and voltages as well as signals.
The wire connection level is designed as a screw element. All screw connections are equipped with a wire protection spring.>br> Screw connection
The wire connection level is designed as a screw element. All screw connections are equipped with a wire protection spring.>br> Screw connection
