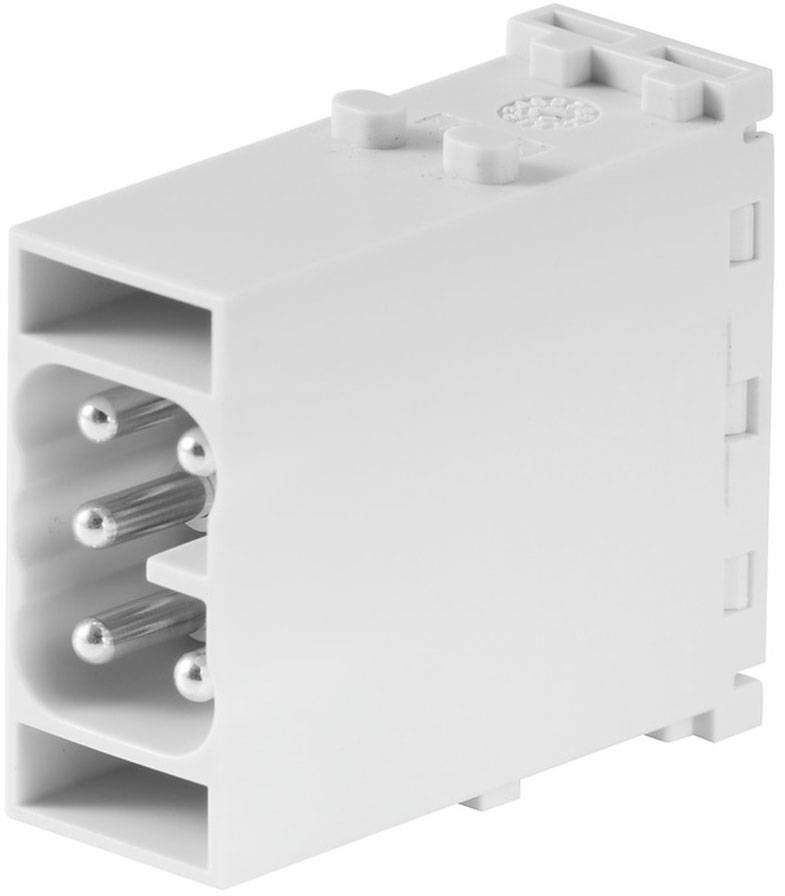

Image similar
Image similar
HDC MHE 5 MP Weidmüller Content: 1 pc(s) Inset
EAN:
Part number:
Item no:
Product type
Inset
Number of pins
5
Type
HDC MHE 5 MP
Manufacturer part #
2636180000
Connection
Push-in button
Technical specifications
- Stripping length Rated connection: 10 mm
- mating cycles: ≥ 500
- Material: Polycarbonate, glass fiber reinforced
- Series: ModulePlug
- Rated voltage (DIN EN 61984): 400 V
- Rated surge voltage (DIN EN 61984): 6 kV
- Rated current (DIN EN 61984): 16 A
- required slots: 1
- flammability class according to UL 94: V-0
- Pollution degree: 3
- Overvoltage category: III
- Width: 14.5 mm
- Depth: 34 mm
- Height: 38.9 mm
- Insulation resistance: 1012 Ω
- Type of connection PE: Screw connection via module frame
- Wire cross-section, max.: 2.5 mm²
- Wire cross-section, min.: 0.5 mm²
- Wire cross-section AWG, max.: AWG 14
- wire cross-section AWG, min.: AWG 20
- Type
HDC MHE 5 MP
- Product type
Inset
- Manufacturer part #
2636180000
- Number of pins
5
- Connection
Push-in button
- Total no. of pins
5
- Content
1 pc(s)
- Max. temperature
+125 °C
- UKCA
yes
