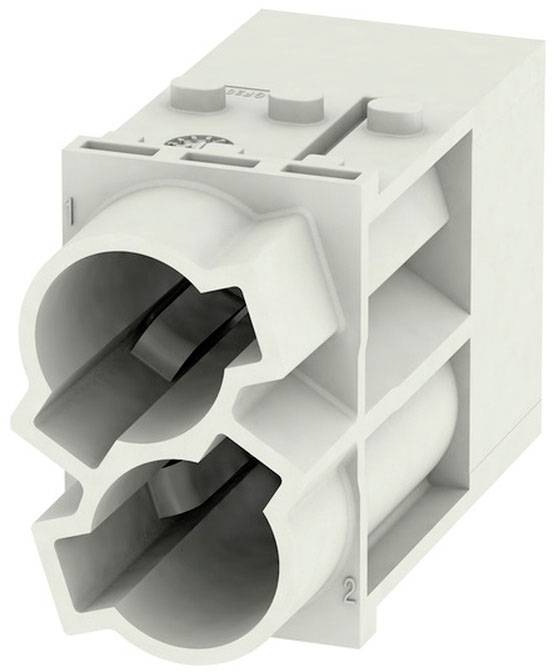

Two-pole, white connector block with numbered terminals for electrical connection. Suitable for industrial applications.

Image similar

Two-pole, white connector block with numbered terminals for electrical connection. Suitable for industrial applications.

Image similar

Product type

Inset

Number of pins

2

Type

HDC MHP 100 MC

Manufacturer part #

1429060000

Connection

Crimp

Weidmüller

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Mating cycles: ≥ 500
Material: Polycarbonate, glass fiber reinforced
Series: ModulPlug
Rated voltage (DIN EN 61984): 1000 V
Rated surge voltage (DIN EN 61984): 8 kV
Rated current (DIN EN 61984): 100 A
Required slots: 1.5
Flammability class according to UL 94: V-0
Pollution degree: 3
Overvoltage category: III
Width: 21.85 mm
Depth: 34 mm
Height: 50.4 mm
Resistance: 1012 Ω
Connection type PE: Screw connection via module frame
conductor cross-section, max.: 35 mm²
conductor cross-section, min.: 10 mm²

Type: HDC MHP 100 MC

Product type: Inset

Manufacturer part #: 1429060000

Number of pins: 2

Connection: Crimp

Total no. of pins: 2

Content: 1 pc(s)

Max. temperature: +125 °C

: 21.85

: 34 m

: V0

: TRUE

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2242332 HDC MHP 100 MC Weidmüller Content: 1 pc(s) Inset
