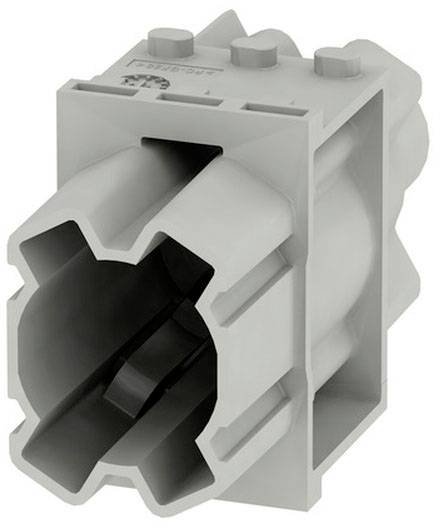

A grey plastic adapter with a hexagonal opening and a textured upper section. Primarily used for electronic connections.

Image similar

A grey plastic adapter with a hexagonal opening and a textured upper section. Primarily used for electronic connections.

Image similar

Product type

Inset

Number of pins

1

Type

HDC MHP 200 FC

Manufacturer part #

2549260000

Connection

Crimp

Weidmüller

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Stripping length Rated connection: 19 mm
Plug-in cycles: ≥ 500
Material: Polycarbonate, glass fiber reinforced
Series: ModulPlug
Rated voltage (DIN EN 61984): 1000 V
Rated surge voltage (DIN EN 61984): 8 kV
Rated current (DIN EN 61984): 200 A
Required slots: 1.5
Flammability class according to UL 94: V-0
Pollution degree: 3
Overvoltage category: III
Width: 21.85 mm
Depth: 34 mm
Height: 59.6 mm
Insulation resistance: 1012 Ω
Connection type PE: Screw connection via module frame
Conductor cross-section, max.: 70 mm²
conductor cross-section, min.: 25 mm²

Type: HDC MHP 200 FC

Product type: Inset

Manufacturer part #: 2549260000

Number of pins: 1

Connection: Crimp

Total no. of pins: 1

Content: 1 pc(s)

Max. temperature: +125 °C

UKCA: yes
