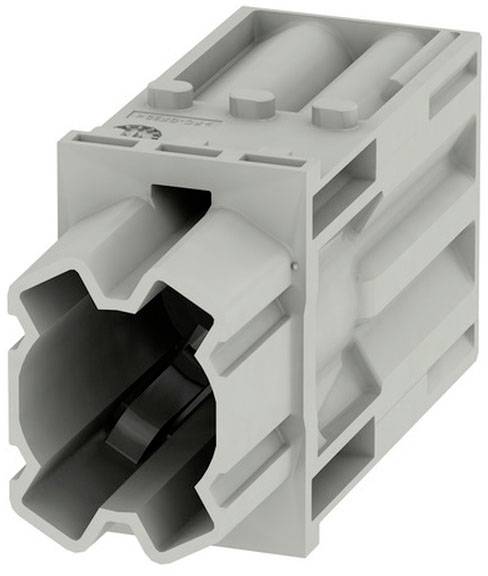

HDC MHP 200 MC Weidmüller Content: 1 pc(s) Inset
EAN:
Part number:
Item no:
Product type
Inset
Number of pins
1
Type
HDC MHP 200 MC
Manufacturer part #
2548900000
Connection
Crimp
Technical specifications
- Stripping length Rated connection: 19 mm
- Plug-in cycles: ≥ 500
- Material: Polycarbonate, glass fiber reinforced
- Series: ModulPlug
- Rated voltage (DIN EN 61984): 1000 V
- Rated surge voltage (DIN EN 61984): 8 kV
- Rated current (DIN EN 61984): 200 A
- Required slots: 1.5
- Flammability class according to UL 94: V-0
- Pollution degree: 3
- Overvoltage category: III
- Width: 21.85 mm
- Depth: 34 mm
- Height: 60.3 mm
- Insulation resistance: 1012 Ω
- Connection type PE: Screw connection via module frame
- Conductor cross-section, max.: 70 mm²
- conductor cross-section, min.: 25 mm²
- Type
HDC MHP 200 MC
- Product type
Inset
- Manufacturer part #
2548900000
- Number of pins
1
- Connection
Crimp
- Total no. of pins
1
- Content
1 pc(s)
- Max. temperature
+125 °C
- UKCA
yes
