Headset Headband electret microphone JTS CX-500FHW Transfer type (details):Corded incl. bag
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 0.062 kg
- Ass. Operating temperature 0-40 °C
- Weight: 6.5 g
- Gross weight: 0.161 kg
- Max. Sound pressure 130 dB
- Connection 4-Pol-Mini-XLR
- Characteristic: Ball
- Sensitivity 12.5 mV/Pa
- Type: Head microphone
- Transmission type: Cable
- System: Electret

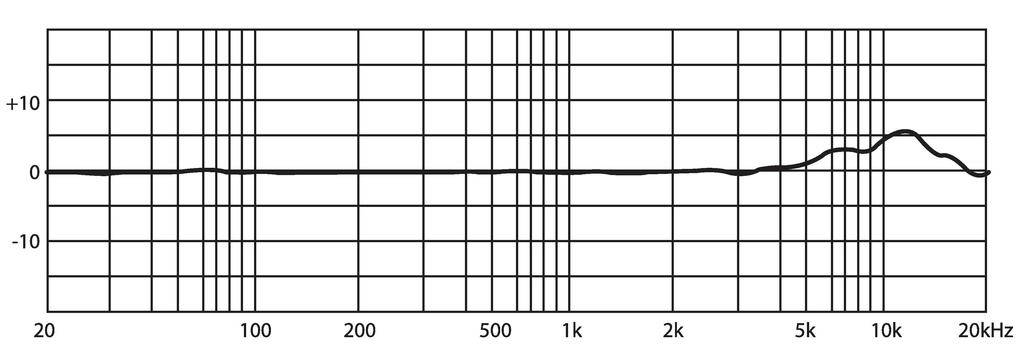

- Audio frequency range 20-20000 Hz
- Power supply: Pocket transmitter IN/PT/UF series or DC 12-48 V, phantom voltage via MA-500
- Nominal impedance 1.5 kΩ
- Product type
Headband electret microphone
- Type
Headset
- Transfer type
Corded
- Characteristics
Ball
- Impedance
1.5 kΩ
- Features
incl. bag
- Connector
4-Pol-Mini-XLR
- Weight
6.5 g
- Width
0.12 m
- Height
0.03 m
- Length
0.21 m
- Dim
(L x W x H) 0.21 x 0.12 x 0.03 m
- Interfaces
XLR
- Frequency range
20-20000 Hz
Documents & Downloads
Datasheet
Datasheet 3340616 Headset Headband electret microphone JTS CX-500FHW Transfer type (details):Corded incl. bag
User & Safety Instructions
User & Safety Instructions 3340616 Headset Headband electret microphone JTS CX-500FHW Transfer type (details):Corded incl. bag
Description

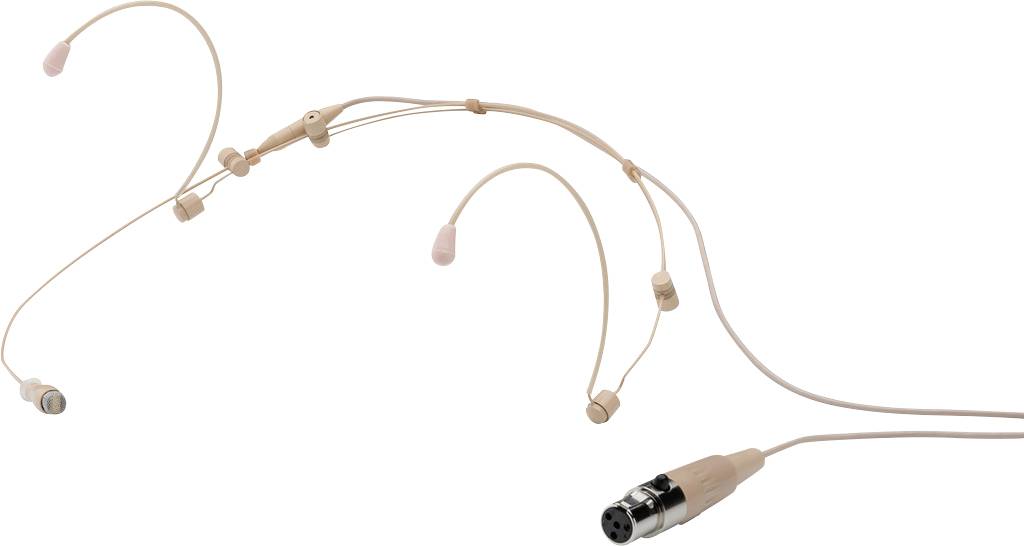

Electret headphone microphone
For the acceptance of flutes
High-quality microphone capsule with spherical characteristic Very good wearing properties Adjustable head band Length-adjustable microphone arm Suitable for children Drip ring (protects the capsule from humidity) 4-pin Mini-XLR coupling for connection to IN-/PT-/UF-pocket transmitter Further connection cable 801CS, 801TG, 801C3, 801C4, 801CR, 801CS/B, 801C3/B, 801C4/B, 801CR/B are optionally available Phantom power adapter MA-500 for cable-connected connection to a mixing desk Delivery includes bag, clamp mounting and wind protection
This text is machine translated.
For the acceptance of flutes
High-quality microphone capsule with spherical characteristic Very good wearing properties Adjustable head band Length-adjustable microphone arm Suitable for children Drip ring (protects the capsule from humidity) 4-pin Mini-XLR coupling for connection to IN-/PT-/UF-pocket transmitter Further connection cable 801CS, 801TG, 801C3, 801C4, 801CR, 801CS/B, 801C3/B, 801C4/B, 801CR/B are optionally available Phantom power adapter MA-500 for cable-connected connection to a mixing desk Delivery includes bag, clamp mounting and wind protection
This text is machine translated.
Features
- Type: Head microphone
- Transmission type: Cable
- Characteristic: Ball
- System: Electret
- Audio frequency range 20-20000 Hz
- Nominal impedance 1.5 kΩ
- Sensitivity 12.5 mV/Pa
- Max. Sound pressure 130 dB
- Supply: Pocket transmitter;IN-/PT-/UF-series;or DC 12-48 V
- Phantom;via MA-500
- Ass. Operating temperature 0-40 °C
- Weight: 6.5 g
- Connection 4-Pol-Mini-XLR
- Packaging dimensions (W x H x L) 0.12 x 0.03 x 0.21 m
- Gross weight: 0.161 kg
- Net weight: 0.062 kg
