Heavy Duty Connectors, Accessories, Shield clamp
EAN:
Part number:
Item no:
Packaging type
Piece
Product type

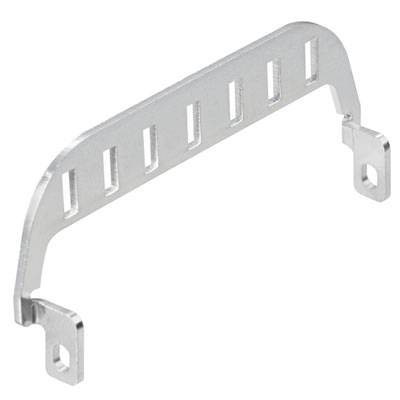

Screen bracket
Type
HDC SHIELD LEVER 8 LL
Manufacturer part #
1011380000
Connection
Connector
Datasheet (PDF)
Highlights & Details
Heavy Duty Connectors, Accessories, Shield clamp
- HDC SHIELD lever 8 LL
Technical specifications
- Packaging type
Piece
- Type
HDC SHIELD LEVER 8 LL
- Product type
Screen bracket
- Manufacturer part #
1011380000
- Connection
Connector
- Content
1 pc(s)
- Suitable for
HD
- Height
115 mm
- Length
10 mm
- Width
45 mm
- Weight
30 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 195616 Heavy Duty Connectors, Accessories, Shield clamp
User & Safety Instructions
User & Safety Instructions 195616 Heavy Duty Connectors, Accessories, Shield clamp
Description
Many demands are made on a connector's shielding. Several tailored solutions are available for meeting these requirements: A shield discharge via an EMC cable glandThe use of shield clamps together with shield clips
Depending on the model, the shield clamp can be used with:standard contact insertsthe ConCept modular system with plastic framethe ConCept modular system with metal frame.
The shielded conductor is fastened to the shield clamp with shield clips. The shield clips are available in varioussizes for different sized conductors.
Depending on the model, the shield clamp can be used with:standard contact insertsthe ConCept modular system with plastic framethe ConCept modular system with metal frame.
The shielded conductor is fastened to the shield clamp with shield clips. The shield clips are available in varioussizes for different sized conductors.
