Heavy Duty Connectors, Accessories, Shield clamp
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Screen bracket
Type

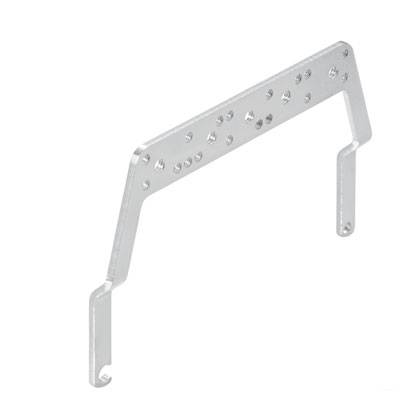

SHIELD LEVER 8 CSB 45°
Manufacturer part #
1017070000
Connection
Connector
Datasheet (PDF)
Highlights & Details
Heavy Duty Connectors, Accessories, Shield clamp
- SHIELD lever 8 CSB 45°
Technical specifications
- Packaging type
Piece
- Type
SHIELD LEVER 8 CSB 45°
- Product type
Screen bracket
- Manufacturer part #
1017070000
- Connection
Connector
- Content
1 pc(s)
- Height
105 mm
- Length
3 mm
- Width
40 mm
- Weight
28 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 195662 Heavy Duty Connectors, Accessories, Shield clamp
User & Safety Instructions
User & Safety Instructions 195662 Heavy Duty Connectors, Accessories, Shield clamp
Description
Many demands are made on a connector's shielding. Several tailored solutions are available for meeting these requirements: A shield discharge via an EMC cable glandThe use of shield clamps together with shield clips
Depending on the model, the shield clamp can be used with:standard contact insertsthe ConCept modular system with plastic framethe ConCept modular system with metal frame.
The shielded conductor is fastened to the shield clamp with shield clips. The shield clips are available in varioussizes for different sized conductors.
Depending on the model, the shield clamp can be used with:standard contact insertsthe ConCept modular system with plastic framethe ConCept modular system with metal frame.
The shielded conductor is fastened to the shield clamp with shield clips. The shield clips are available in varioussizes for different sized conductors.
