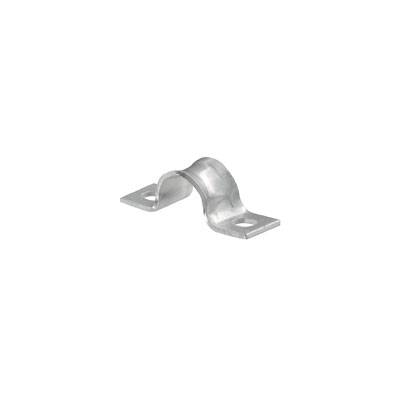

Heavy Duty Connectors, Accessories, Shield clip
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Screen clamp
Type
SHIELD CLAMP 10.0 WO S
Manufacturer part #
1018110000
Connection
Connector
Datasheet (PDF)
Highlights & Details
Heavy Duty Connectors, Accessories, Shield clip
Our service for you
Technical specifications
- Packaging type
Piece
- Type
SHIELD CLAMP 10.0 WO S
- Product type
Screen clamp
- Manufacturer part #
1018110000
- Connection
Connector
- Content
100 pc(s)
- Height
140 mm
- Length
40 mm
- Width
125 mm
- Industrial packaging
Yes
- Weight
2.33 g
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 280837 Heavy Duty Connectors, Accessories, Shield clip
User & Safety Instructions
User & Safety Instructions 280837 Heavy Duty Connectors, Accessories, Shield clip
Description
Many demands are made on a connector's shielding. Several tailored solutions are available for meeting these requirements: A shield discharge via an EMC cable glandThe use of shield clamps together with shield clips
Depending on the model, the shield clamp can be used with:standard contact insertsthe ConCept modular system with plastic framethe ConCept modular system with metal frame.
The shielded conductor is fastened to the shield clamp with shield clips. The shield clips are available in varioussizes for different sized conductors.
Depending on the model, the shield clamp can be used with:standard contact insertsthe ConCept modular system with plastic framethe ConCept modular system with metal frame.
The shielded conductor is fastened to the shield clamp with shield clips. The shield clips are available in varioussizes for different sized conductors.
