Hebotec HSK 6-8 Screen holder Snap-in fixing Terminal Ø (max.) 8 mm Spring steel 25 pc(s)
EAN:
Part number:
Item no:
Product type
Screen holder
Features
Snap-in fixing
Material
Spring steel
Clamp Ø
6 mm
Terminal Ø (max.)
8 mm
Datasheet (PDF)
Highlights & Details

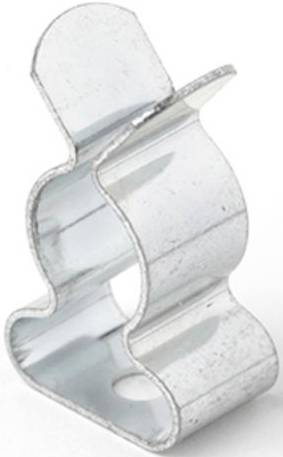

Hebotec screen clamp HSK 6-8 - 25 pcs
- By spring action consistently good contact to the cable screen high conductivity
- Very good derivation of high-frequency interference currents
- Sizes from 1.5 to 16 mm clamping range
- Can be snapped onto the HEBOCLIP without tools
Technical specifications
- Screen clamp, screen diameter: 6-8 mm
- Material: Galvanized spring steel
- Product type
Screen holder
- Features
Snap-in fixing
- Material
Spring steel
- (Ø)
8 mm
- Dim
(Ø) 8 mm
- Clamp Ø
6 mm
- Terminal Ø (max.)
8 mm
- Content
25 pc(s)
- Manufacturer part #
1010-003D
- Type
HSK 6-8
- Material properties
zinc plated
Documents & Downloads
Datasheet
Datasheet 2256926 Hebotec HSK 6-8 Screen holder Snap-in fixing Terminal Ø (max.) 8 mm Spring steel 25 pc(s)
User & Safety Instructions
User & Safety Instructions 2256926 Hebotec HSK 6-8 Screen holder Snap-in fixing Terminal Ø (max.) 8 mm Spring steel 25 pc(s)
Description
By simply pressing the stripped cable into the shield clamp, the cable shield is contacted consistently well via the spring force of the clamp.
The contact surfaces are large-area, which ensures a very good discharge of interference currents.
The screen clamp can be used with the HEBOCLIPs for various mounting systems such
as DIN rail, busbar or for direct mounting. The mounting of the screen clamp suitable for the respective screen diameter is done by means of tool-free clipping.
This text is machine translated.
The contact surfaces are large-area, which ensures a very good discharge of interference currents.
The screen clamp can be used with the HEBOCLIPs for various mounting systems such
as DIN rail, busbar or for direct mounting. The mounting of the screen clamp suitable for the respective screen diameter is done by means of tool-free clipping.
This text is machine translated.
