Hebotec HSK-RKS-Z 6 - 8 R1,5² Fastener Rivets 1016-103C Bundle Ø range 6 up to 8 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Fastener
Fastening method
Rivets
Bundle diameter (min.)
6 mm
Bundle Ø (max.)
8 mm
Material
Spring steel
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 9.24
3
6% = € 0.53
€ 8.71
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 9.24 / piece)
€ 9.24
plus VAT.
14-day return policy included
Highlights & Details
Hebotec 1016-103C Screen holder
- Fastener
- Rivets
- Bundle Ø range 6 up to 8 mm
Technical specifications
- Component 1: Shield clamp
- Length: 36.5 mm.
- Width 12.8 mm
- Height: 23.9 mm
- Material 1: Galvanized spring steel
- Min 6 mm shield diameter
- Max. Diameter 8 mm
- Product type
Fastener
- Fastening method
Rivets
- Bundle Ø range
6 up to 8 mm
- Bundle diameter (min.)
6 mm
- Bundle Ø (max.)
8 mm
- Material
Spring steel
- Content
1 pc(s)
- Manufacturer part #
1016-103C
- Width
12.8 mm
- Height
23.9 mm
- Length
36.5 mm
- Type
HSK-RKS-Z 6 - 8 R1,5²
- Type A
Crimping
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3411221 Hebotec HSK-RKS-Z 6 - 8 R1,5² Fastener Rivets 1016-103C Bundle Ø range 6 up to 8 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3411221 Hebotec HSK-RKS-Z 6 - 8 R1,5² Fastener Rivets 1016-103C Bundle Ø range 6 up to 8 mm 1 pc(s)
Description

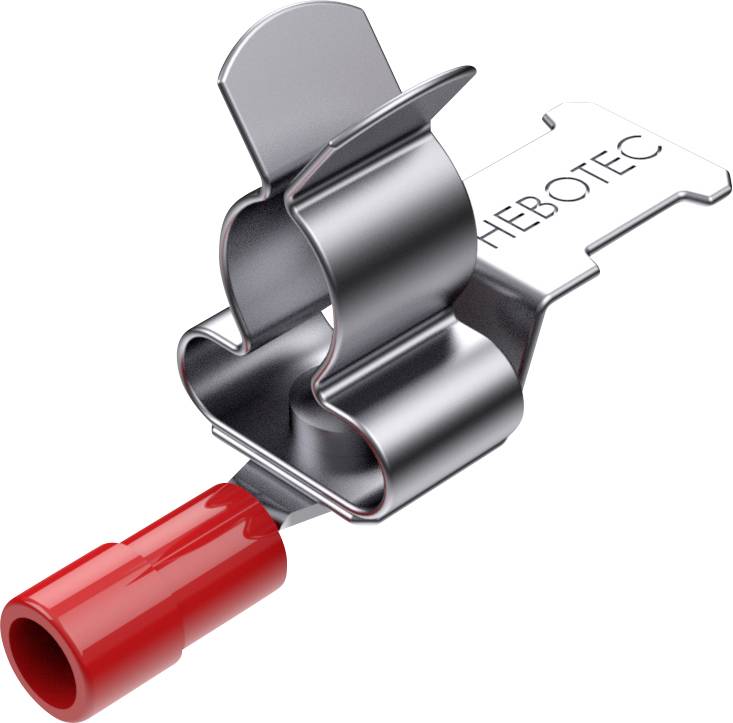

Shield bracket 6 - 8mm with strain relief, riveted to ring terminal, red PA insulation, UL listed, for conductor cross-section 0.5 - 1.5mm²
