Hebotec KBH 6-35 Cable mount Screw fixing, Detachable 3010-002C Bundle Ø range 6 up to 35 mm 10 pc(s)
EAN:
Part number:
Item no:
Product type
Cable mount
Fastening method
Screw fixing
Detachable
Bundle diameter (min.)
6 mm
Bundle Ø (max.)
35 mm
Material
Polyamide
Polypropylene
Datasheet (PDF)
Highlights & Details

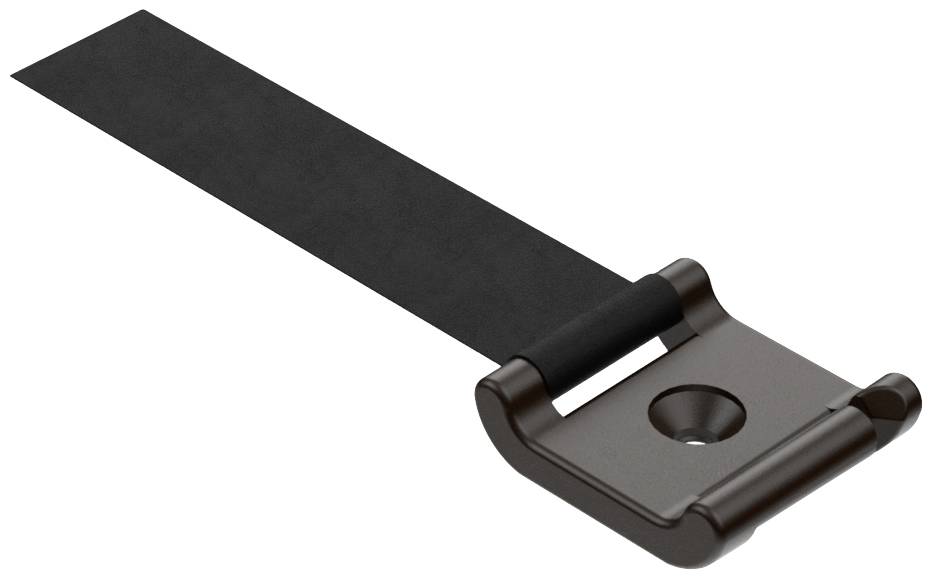

Hebotec hook-and-loop fastener KBH 6-35 - 10 pcs
- Cable mount
- Screw fixing, Detachable
- Bundle Ø range 6 up to 35 mm
Technical specifications
- Velcro fastener, self-extinguishing according to UL94-V2, clamping range 6-35 mm
- Material: Base made of polyamide glass fiber reinforced
- Velcro tape made of polypropylene, self-extinguishing according to UL94-V2
- Product type
Cable mount
- Fastening method
Screw fixing
Detachable
- Bundle Ø range
6 up to 35 mm
- Bundle diameter (min.)
6 mm
- Bundle Ø (max.)
35 mm
- Material
Polyamide
Polypropylene
- Content
10 pc(s)
- Manufacturer part #
3010-002C
- Type
KBH 6-35
Documents & Downloads
Datasheet
Datasheet 2256874 Hebotec KBH 6-35 Cable mount Screw fixing, Detachable 3010-002C Bundle Ø range 6 up to 35 mm 10 pc(s)
User & Safety Instructions
User & Safety Instructions 2256874 Hebotec KBH 6-35 Cable mount Screw fixing, Detachable 3010-002C Bundle Ø range 6 up to 35 mm 10 pc(s)
Description

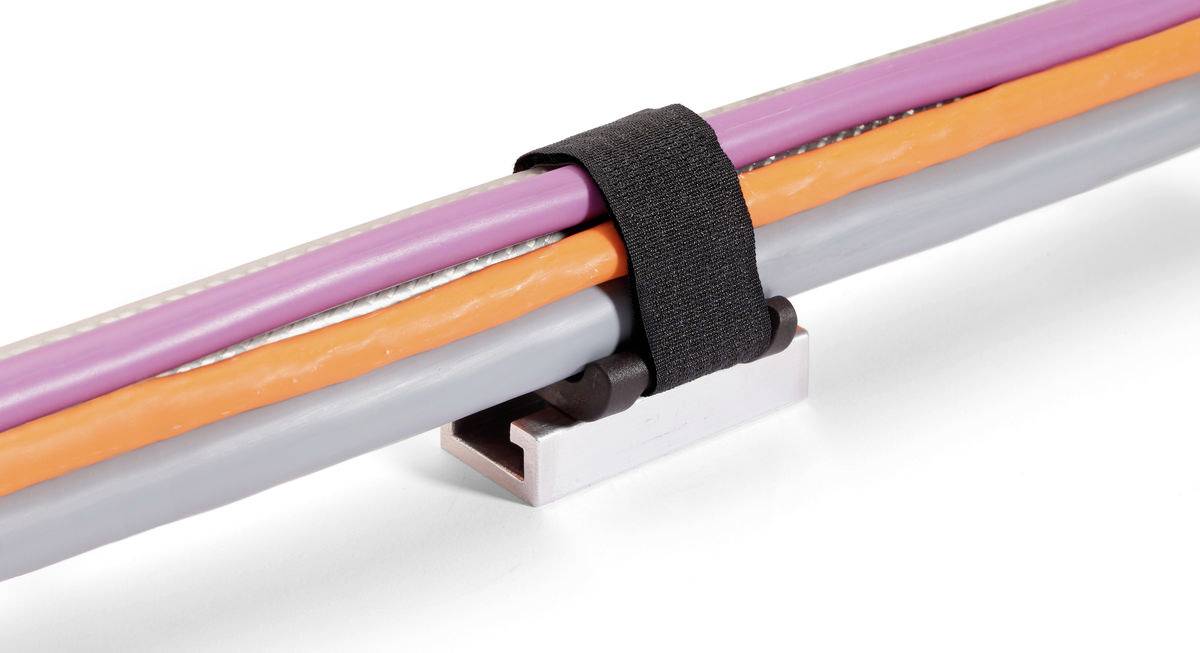

The hook-and-loop fastener serves as an installation aid for the gentle attachment of cables, cables and hoses.
The holder is available for direct mounting with M4 screw or in another version with integrated clamping mechanism for profiles with 10 mm groove width.
This text is machine translated.
The holder is available for direct mounting with M4 screw or in another version with integrated clamping mechanism for profiles with 10 mm groove width.
