Hebotec SHBD 17/23 6 Clip Detachable 3014-210-145B 5 pc(s)
EAN:
Part number:
Item no:
Product type
Clip
Fastening method
Detachable
Material
Polyamide
Polypropylene
Content
5 pc(s)
Manufacturer part #
3014-210-145B
Datasheet (PDF)
Highlights & Details
Hebotec plug holder SHBD 17/23 6 - 5 pcs
- Clip
- Detachable
Technical specifications
- Big plug holder fitted with Velcro, fixing hole for M6, set consists of 2 holders, for dirt mounting, for M17/M23 plug holder
- Material holder: Polyamide glass fiber reinforced, self-extinguishing to UL94-V0
- Material Velcro: Polypropylene, self-extinguishing according to UL94-V2
- Product type
Clip
- Fastening method
Detachable
- Material
Polyamide
Polypropylene
- Content
5 pc(s)
- Manufacturer part #
3014-210-145B
- Type
SHBD 17/23 6
Documents & Downloads
Datasheet
Datasheet 2256918 Hebotec SHBD 17/23 6 Clip Detachable 3014-210-145B 5 pc(s)
User & Safety Instructions
User & Safety Instructions 2256918 Hebotec SHBD 17/23 6 Clip Detachable 3014-210-145B 5 pc(s)
Description

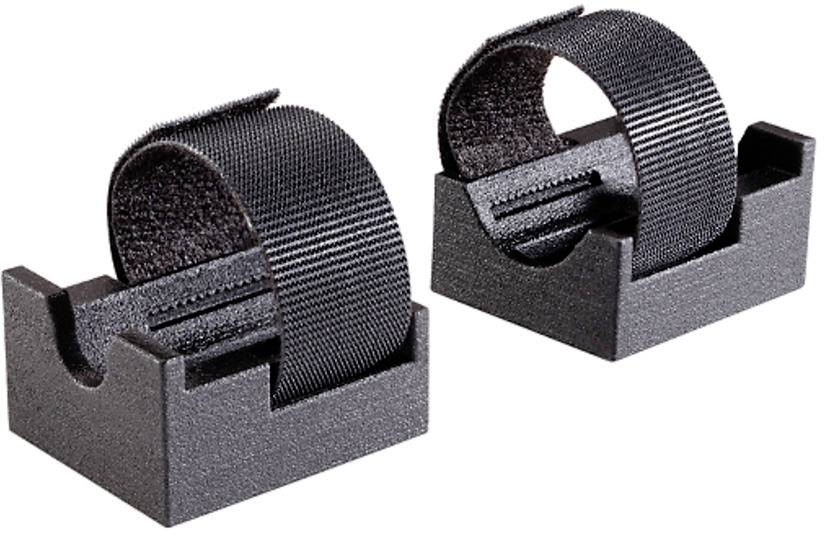

The Big plug holder for direct mounting serves as an installation aid for the secure attachment of industrial plug connections.
It is designed for M17 and M23 plugs.
Two holders are mounted with one M6 socket head screw each in such a way that the used plug connection can be placed between the stop plates of the holders without play.
Then the Velcro is placed around the plug connection, guided through the channel in the plug holder and fastened.
In order to simplify an exact alignment of the plug holders, the holder has an integrated alignment aid at the bottom.
This is inserted into an optional second hole on the 3 mm diameter mounting surface. If you do not drill this hole, the alignment aid simply disappears in the holder during installation.
This text is machine translated.
It is designed for M17 and M23 plugs.
Two holders are mounted with one M6 socket head screw each in such a way that the used plug connection can be placed between the stop plates of the holders without play.
Then the Velcro is placed around the plug connection, guided through the channel in the plug holder and fastened.
In order to simplify an exact alignment of the plug holders, the holder has an integrated alignment aid at the bottom.
This is inserted into an optional second hole on the 3 mm diameter mounting surface. If you do not drill this hole, the alignment aid simply disappears in the holder during installation.
This text is machine translated.
