Hebotec SHD 8 4 Clip Screw fixing 3014-102C 10 pc(s)
EAN:
Part number:
Item no:
Product type
Clip
Fastening method
Screw fixing
Material
Polyamide
Mounting Ø (min.)
4 mm
Mounting Ø (max.)
4 mm
Datasheet (PDF)
Highlights & Details

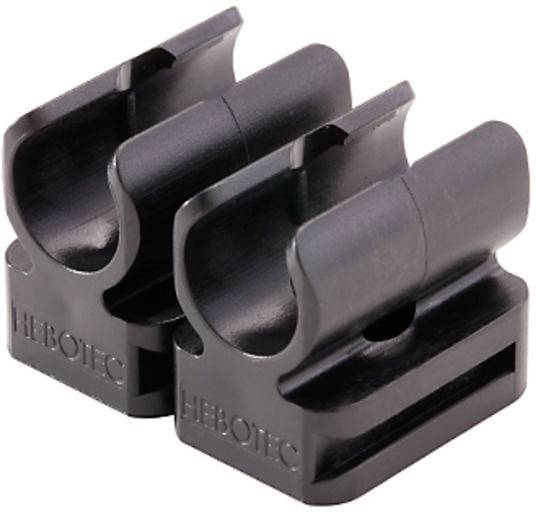

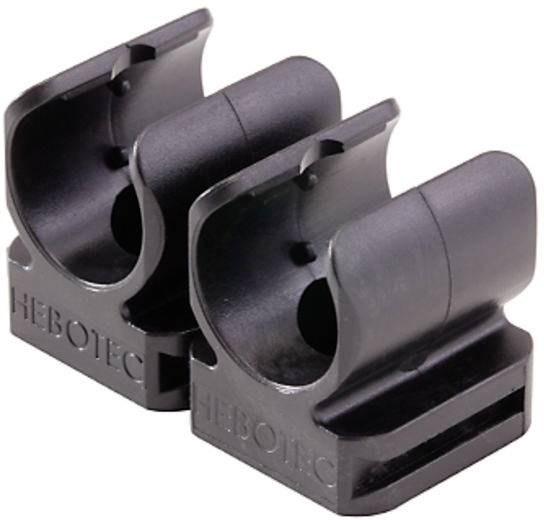

Hebotec plug holder SHD 8 4 - 10 pcs
- Clip
- Screw fixing
Technical specifications
- Plug holder for direct mounting, can be aligned, for M8 plug connector, for hole M4
- Material: Polyamide glass fiber reinforced, self-extinguishing to UL94-V0
- Product type
Clip
- Fastening method
Screw fixing
- Material
Polyamide
- Mounting Ø (min.)
4 mm
- Mounting Ø (max.)
4 mm
- Content
10 pc(s)
- Manufacturer part #
3014-102C
- Type
SHD 8 4
Documents & Downloads
Datasheet
Datasheet 2256930 Hebotec SHD 8 4 Clip Screw fixing 3014-102C 10 pc(s)
User & Safety Instructions
User & Safety Instructions 2256930 Hebotec SHD 8 4 Clip Screw fixing 3014-102C 10 pc(s)
Description

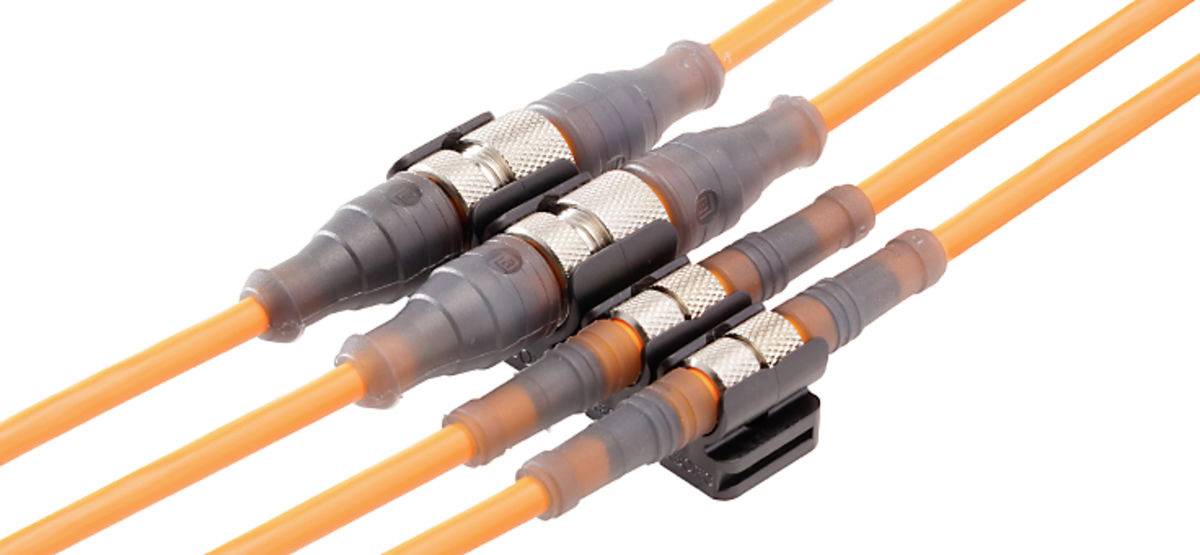

The plug holder for direct mounting serves as an installation aid for the secure attachment of industrial plug connections.
It is available in two sizes for M8 or M12 connectors.
The holder can be mounted with a socket head screw. Then the M8 or M12 connector is simply pressed in from above.
Make sure that the gap of the plug connection is in the middle of the holder.
Material noses then dip into this gap and prevent the connector from moving lengthwise.
The different sizes can be aligned in any way by means of a dovetail connection.
This text is machine translated.
It is available in two sizes for M8 or M12 connectors.
The holder can be mounted with a socket head screw. Then the M8 or M12 connector is simply pressed in from above.
Make sure that the gap of the plug connection is in the middle of the holder.
Material noses then dip into this gap and prevent the connector from moving lengthwise.
The different sizes can be aligned in any way by means of a dovetail connection.
