Hebotec SHK 12 C11 Clip Detachable 3014-124C 10 pc(s)
EAN:
Part number:
Item no:
Product type
Clip
Fastening method
Detachable
Material
Polyamide
Content
10 pc(s)
Manufacturer part #
3014-124C
Datasheet (PDF)
Highlights & Details

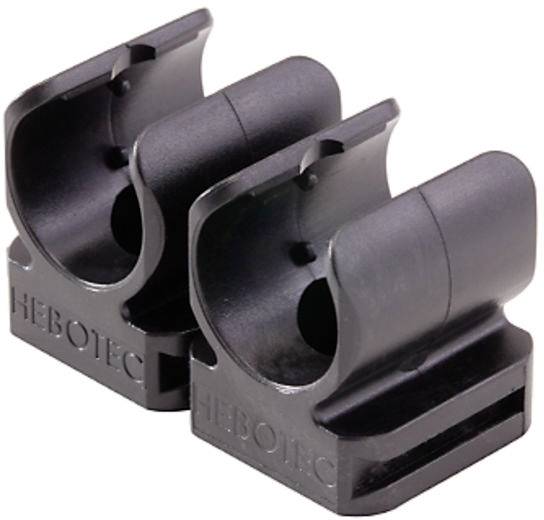

Hebotec plug holder SHK 12 C11 - 10 pcs
- Clip
- Detachable
Technical specifications
- Plug holder with clamp base for C11-rail, for M12 plug connector
- Material: Polyamide glass fiber reinforced, self-extinguishing to UL94-V0
- Product type
Clip
- Fastening method
Detachable
- Material
Polyamide
- Content
10 pc(s)
- Manufacturer part #
3014-124C
- (Ø)
12 mm
- Type
SHK 12 C11
Documents & Downloads
Datasheet
Datasheet 2256931 Hebotec SHK 12 C11 Clip Detachable 3014-124C 10 pc(s)
User & Safety Instructions
User & Safety Instructions 2256931 Hebotec SHK 12 C11 Clip Detachable 3014-124C 10 pc(s)
Description

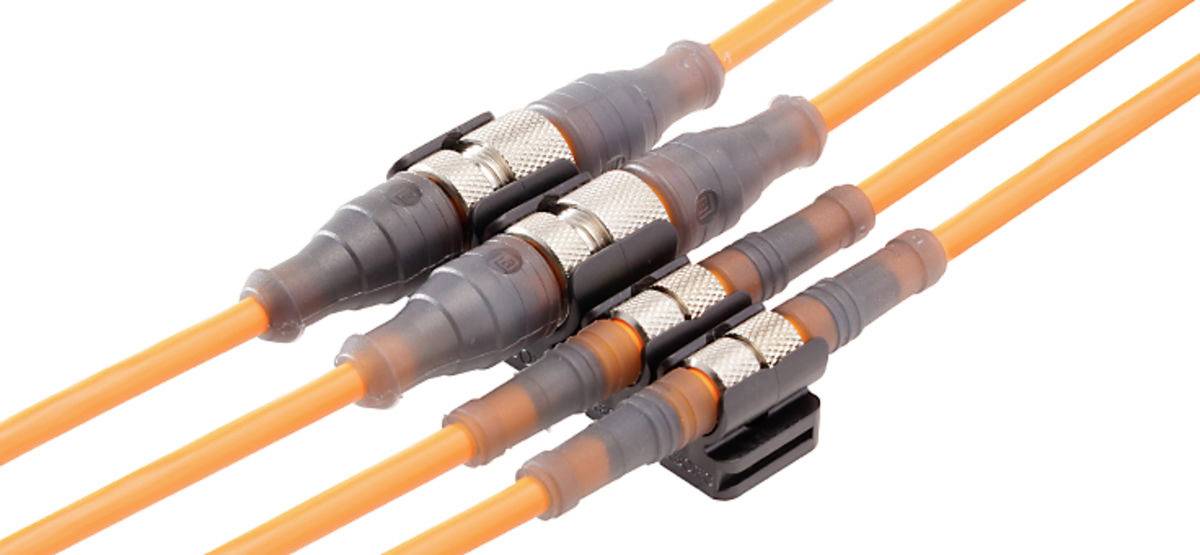

The plug holder for direct mounting serves as an installation aid for the secure attachment of industrial plug connections.
It is available in two sizes for M8 or M12 connectors.
The holder can be mounted with a socket head screw. Then the M8 or M12 connector is simply pressed in from above.
Make sure that the gap of the plug connection is in the middle of the holder.
Material noses then dip into this gap and prevent the connector from moving lengthwise.
The different sizes can be aligned in any way by means of a dovetail connection.
This text is machine translated.
It is available in two sizes for M8 or M12 connectors.
The holder can be mounted with a socket head screw. Then the M8 or M12 connector is simply pressed in from above.
Make sure that the gap of the plug connection is in the middle of the holder.
Material noses then dip into this gap and prevent the connector from moving lengthwise.
The different sizes can be aligned in any way by means of a dovetail connection.
This text is machine translated.
