Buy Heitronic 500594 DL7002 LED recessed light LED (monochrome) Built-in LED 7 W White

Round LED recessed spotlight in a silver housing, suitable for ceiling installation, with two side springs for mounting.

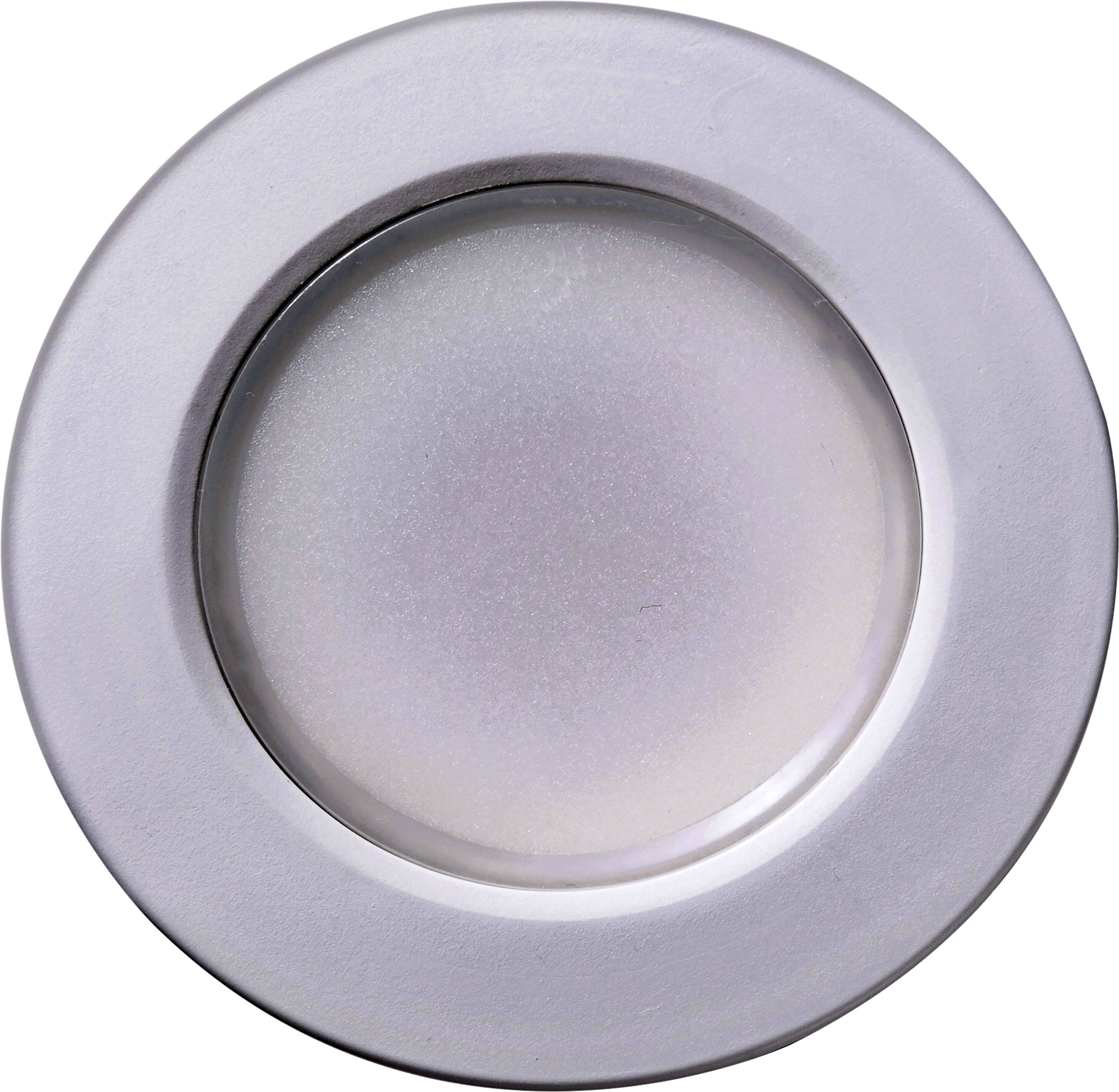

A silver round button or lid with a smooth surface, centred in the image.

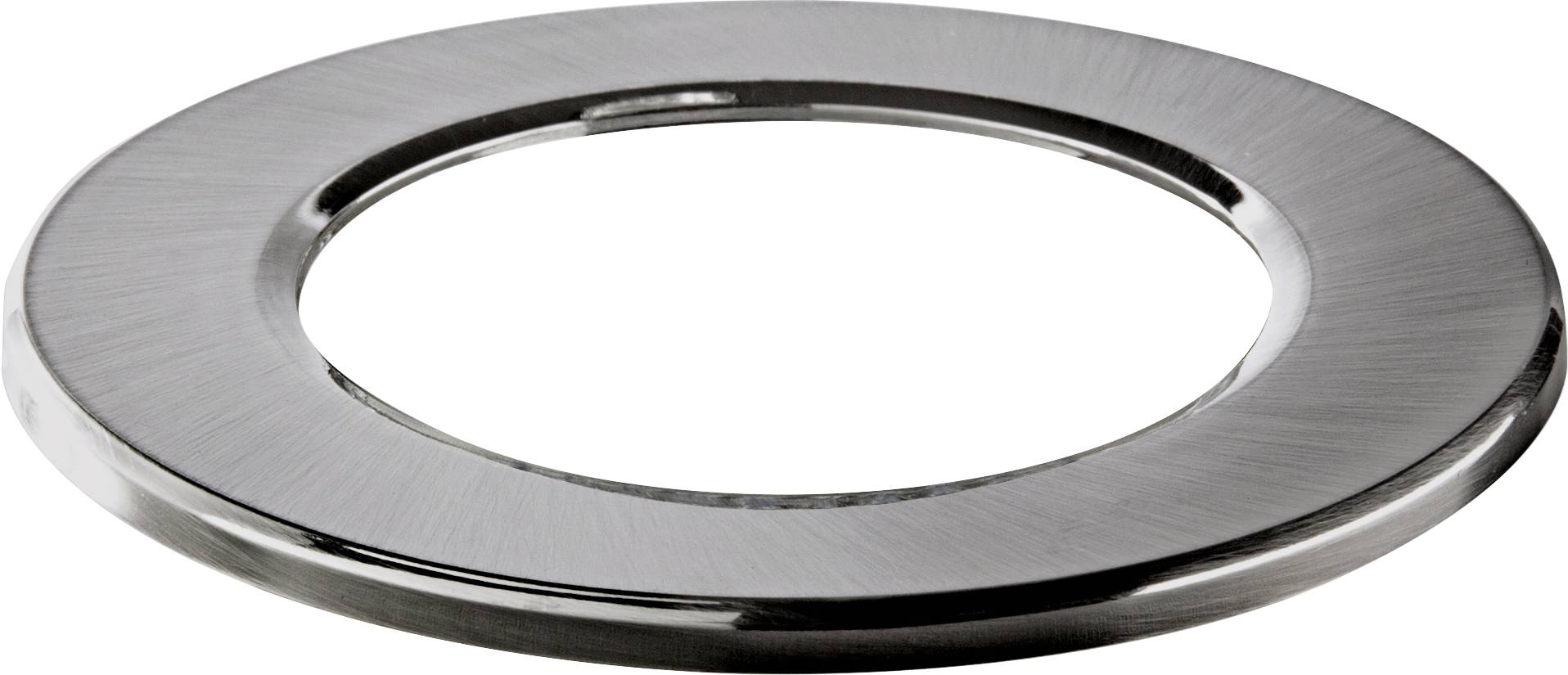

A silver metal ring with a large circular cutout in the centre, used for technical or mechanical equipment.

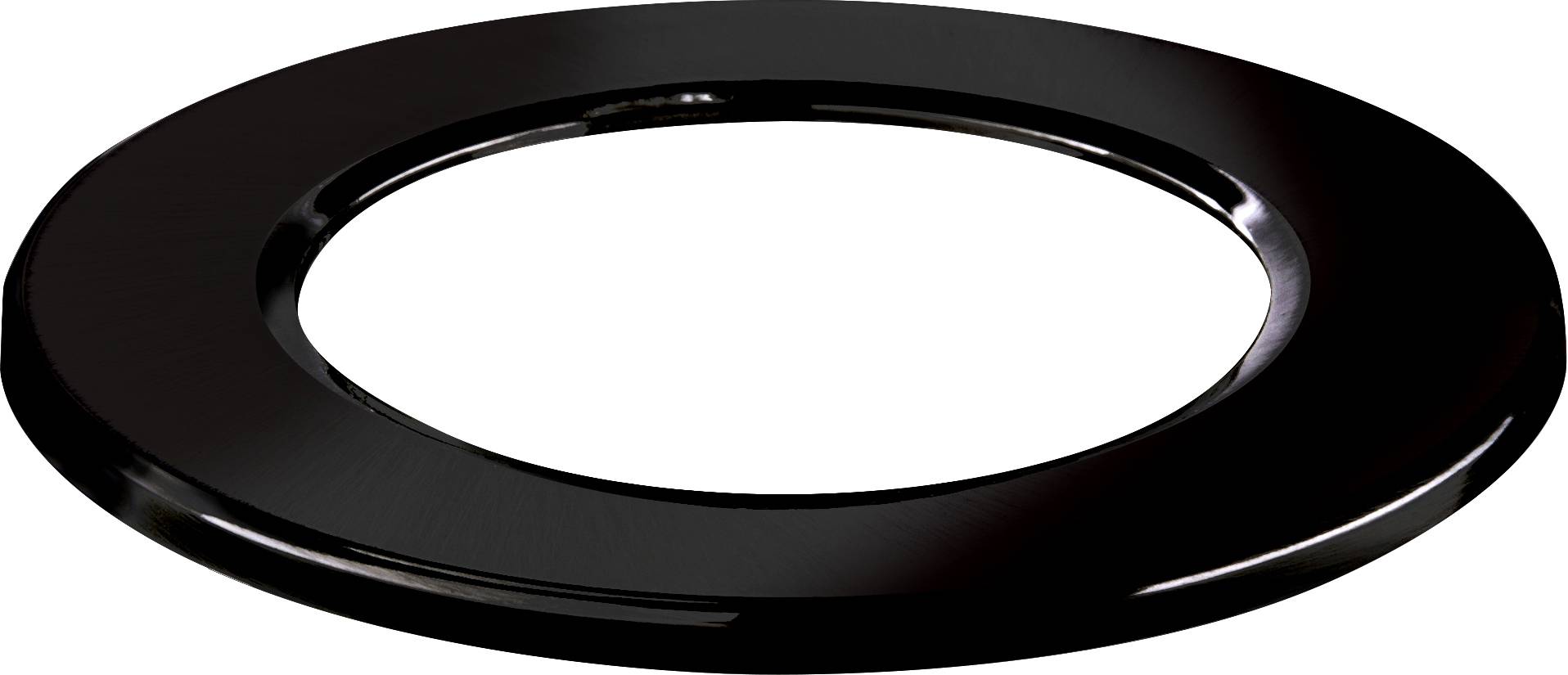

A black, flat ring with a glossy surface, which is uniformly round and has a circular opening in the centre.

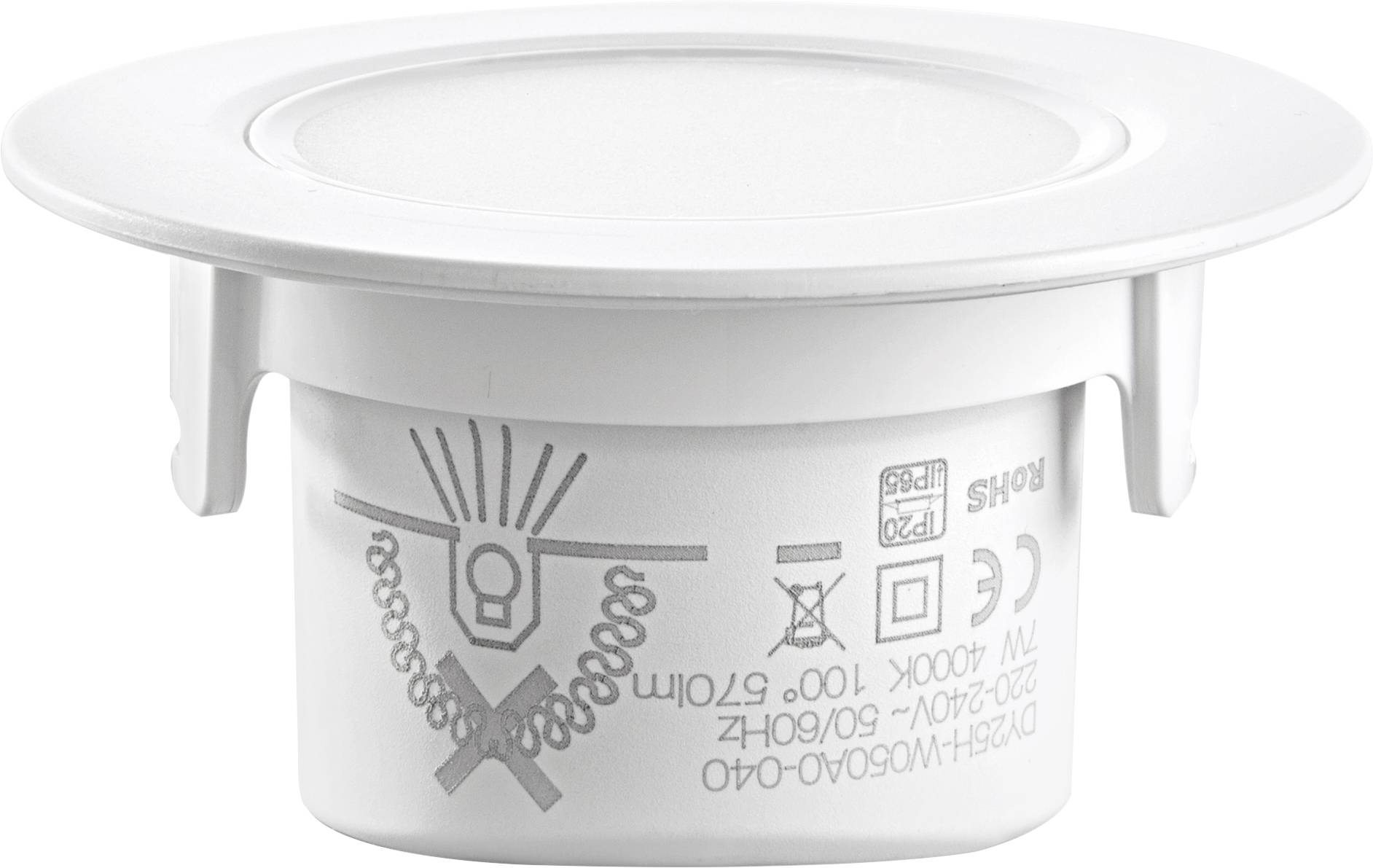

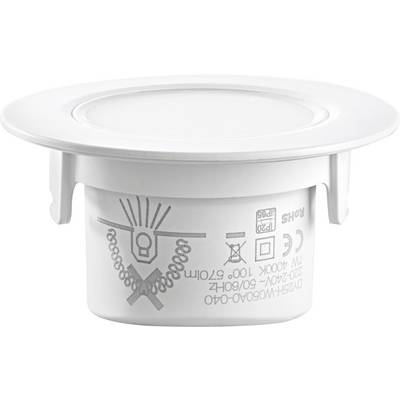

A white recessed LED light fitting with technical symbols and specifications on the side. Primarily intended for use in ceilings.

LAVAL LED Panel with Memory Function, individually adjustable via light switch. Colour temperature: 3000 K to 4000 K. Link to the products.

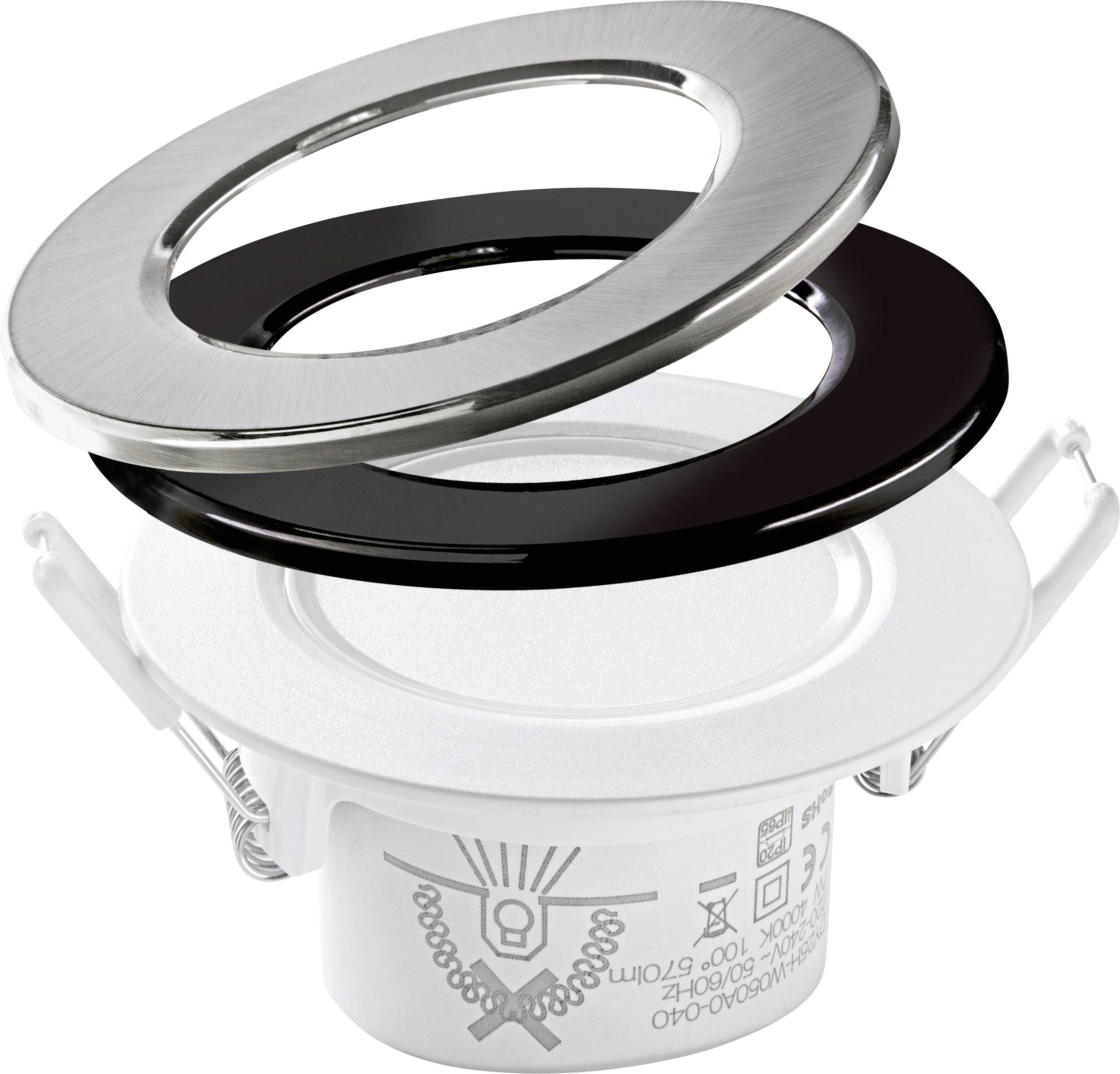

Recessed spotlight with two interchangeable bezels, one silver and one black, mounted on a white base housing.

1/7

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Total (€ 13.44 / piece)

€ 13.44

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Heitronic 500594 DL7002 recessed lamp LED, 7W, IP55, dimmable, round IP65

Power= 7 W Total luminous flux= 590 lm Colour temperature= 3000 K Warm white

Technical specifications

Product type: LED recessed light

Operating voltage: 230 V AC

: Built-in LED

Bulb type: LED (monochrome)

: 7 W

Total luminous flux: 590 lm

: 3000 K

Colour: Warm white

Radiation angle: 100°

Recess diameter: 68 mm

Recess depth: 49 mm

Outside Ø: 87 mm

: IP65

Protection class: II

Factory colour: White

Material: Plastic

Weight: 0.101 kg

: n.rel.

Dim: (Ø x H) 87 mm x 60 mm

: Yes

Light bulb included: Yes

Colour temperature range: 3000 K

Width: 90 mm

Height: 60 mm

Depth: 94 mm

(Ø): 87 mm

Documents & Downloads

Datasheet

Datasheet 2252175 Heitronic 500594 DL7002 LED recessed light LED (monochrome) Built-in LED 7 W White

User & Safety Instructions

User & Safety Instructions 2252175 Heitronic 500594 DL7002 LED recessed light LED (monochrome) Built-in LED 7 W White

Description

The 7 W LED downlight DL7002 is dust and water proof (IP65) and is therefore ideal for use in damp rooms and in covered outdoor areas.With the supplied plastic rings, the frame color can be easily adjusted to black or matt nickel. The downlight fits in standard hole cutouts (68 mm) and is easy to install thanks to large terminal clamp and generous connection space. The LED ballast is already integrated in the housing of the downlight.In addition, the LED downlight DL7002 can be dimmed continuously with many phase angle and phase angle dimmers.

This text is machine translated.
