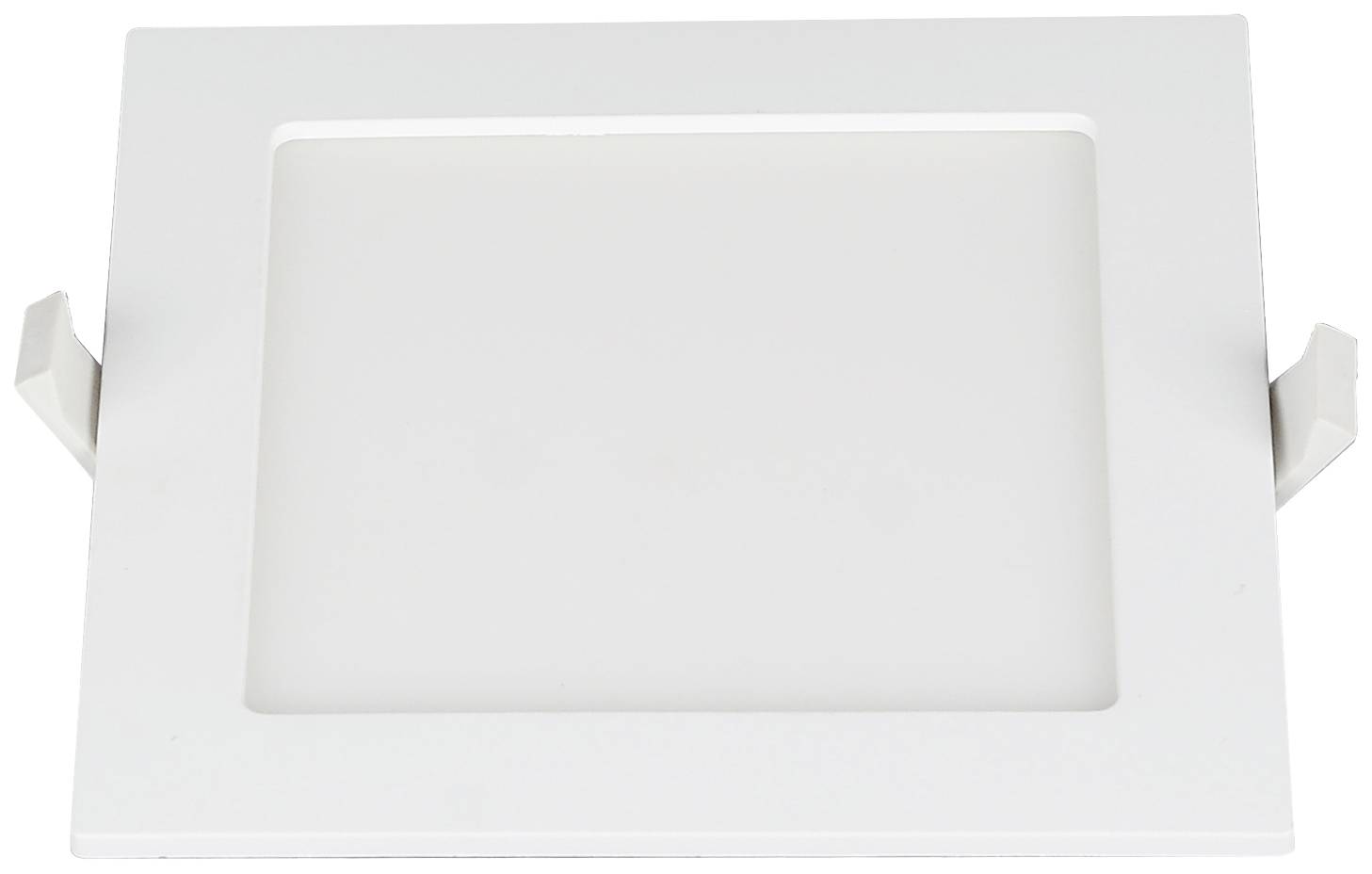

Heitronic 501381 Le Mans LED recessed light LED (monochrome) 12 W White
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 16.80
3
4% = € 0.75
€ 16.05
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 16.80 / piece)
€ 16.80
plus VAT.
Highlights & Details
LED Downlight LE MANS square white 12W 165x165x32 mm 3000/4000/6000K IP44 dimmable
- Power= 12 W Total luminous flux= 1000 lm Colour temperature= 3000 K Warm white to cool white
Technical specifications
- Product type
LED recessed light
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
12 W
- Total luminous flux
1000 lm
3000 K
- Colour
Warm white to cool white
- Type
Square
- Light features
Dimmable
- Recess length
150 mm
- Recess width
150 mm
- Recess depth
27 mm
- External length
165 mm
- External width
165 mm
IP44
- Protection class
II
- Factory colour
White
n.rel.
- Dim
(L x W x H) 165 x 165 x 32 mm
- Light bulb included
Yes
- Colour temperature range
3000 K
- Width
165 mm
- Height
32 mm
- Length
165 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2638214 Heitronic 501381 Le Mans LED recessed light LED (monochrome) 12 W White
User & Safety Instructions
User & Safety Instructions 2638214 Heitronic 501381 Le Mans LED recessed light LED (monochrome) 12 W White
Warranty Terms
Warranty Terms 2638214 Heitronic 501381 Le Mans LED recessed light LED (monochrome) 12 W White
Description
The very flat LED downlight can be used almost everywhere thanks to its low installation depth of only 27 mm, even in difficult installation conditions, especially when retrofitting to economical and durable LED technology. The LED ballast is already built into the downlight and does not need to be installed separately. The power connection is made directly at 230 V with open wire ends (length approx. 150 mm). The LED recessed spotlight can be dimmed with all the common phase section dimmers. In addition, the color temperature can be set easily and without tools before mounting via sliding switch (warm white, neutral white or cold white as required).The built-in LED light emits light evenly and almost without glare thanks to a white/transparent diffuser. Thanks to protection class IP44, the LED-built-in beamer Le Mans from Heitronic can also be used in damp rooms or in roofed outdoor areas.
This text is machine translated.
This text is machine translated.
Features

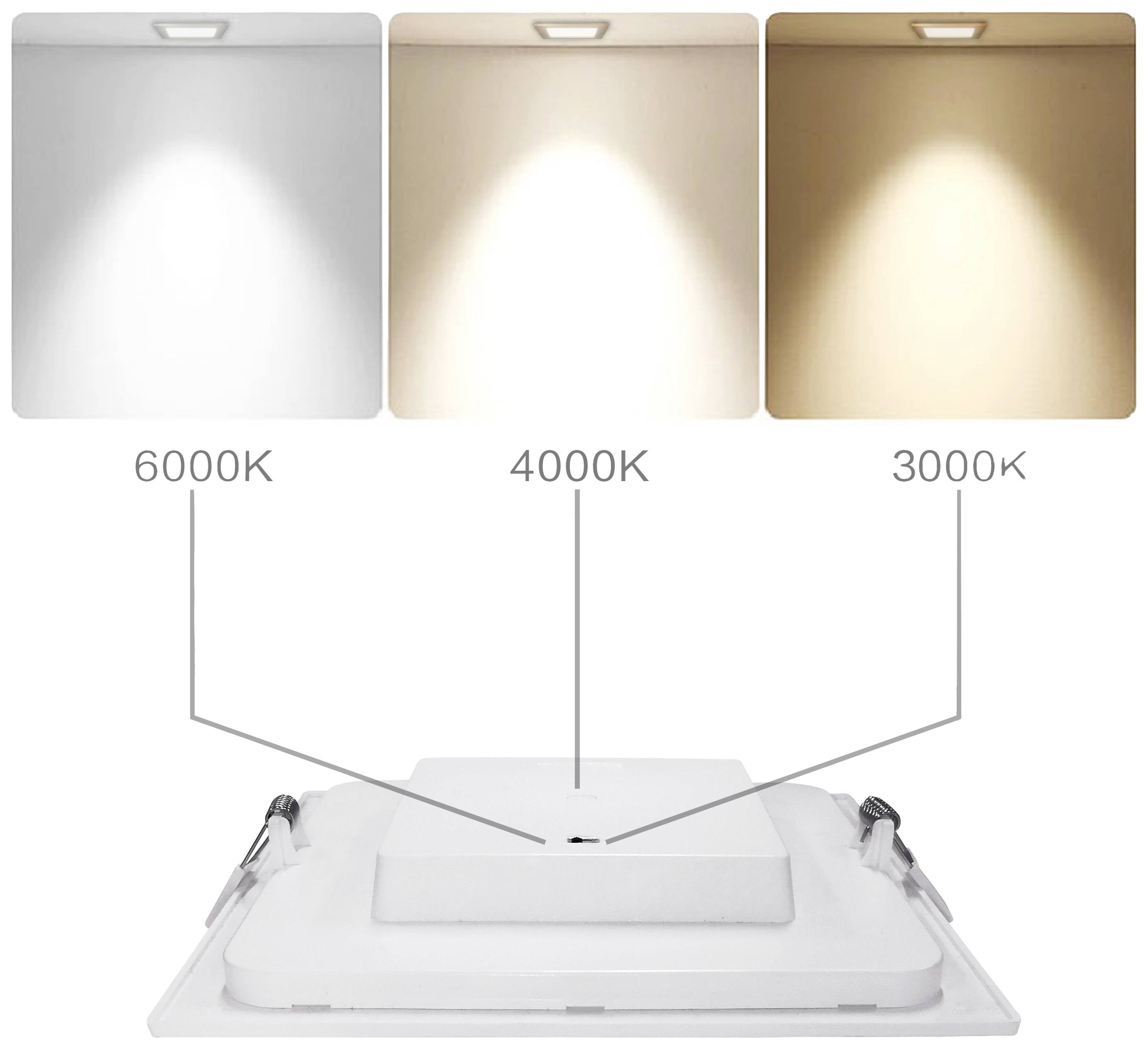

- Colour temperature before installation easily adjustable via switch (warm white with 3000 K, neutral white with 4000 K or cold white with 6000 K)
- Good color reproduction with 80 Ra
- LED life up to 35,000 operating hours
- Robust plastic housing
- Almost glare-free light thanks to white/transparent diffuser
- Dust- and splashproof (IP44)
- Installation depth only 27 mm, the LED ballast is integrated in the lamp housing)
- Total height 32 mm (of which 5 mm body height)
- Dimmable with all standard phase section dimmers

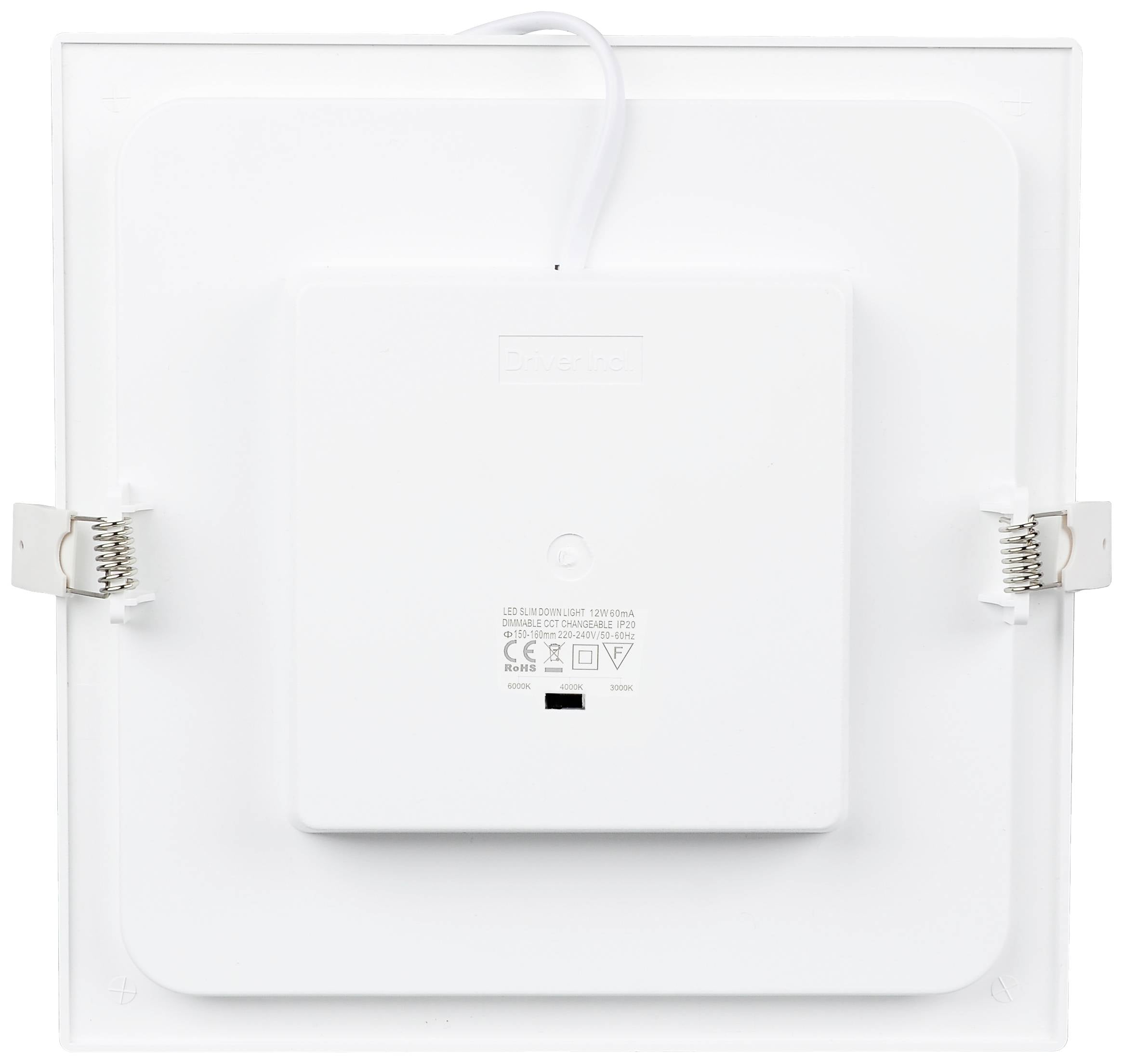

- Operation directly at 230 V, connection via open cable ends (length approx. 150 mm)
- Border color: White
Scope of delivery
- LED Downlight Heitronic Le Mans, square

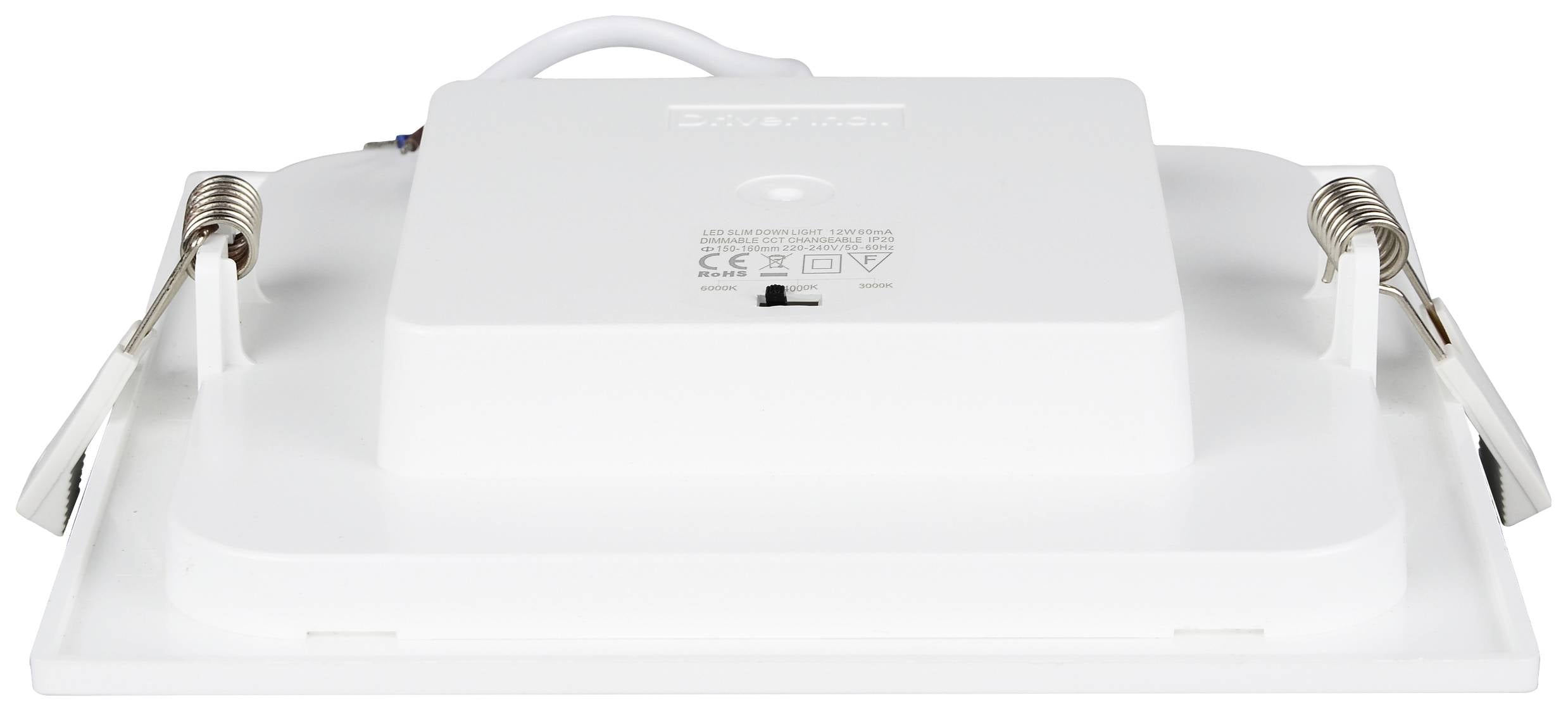

- Mounting material (spring clamps)
- Installation manual
