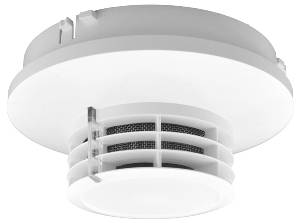

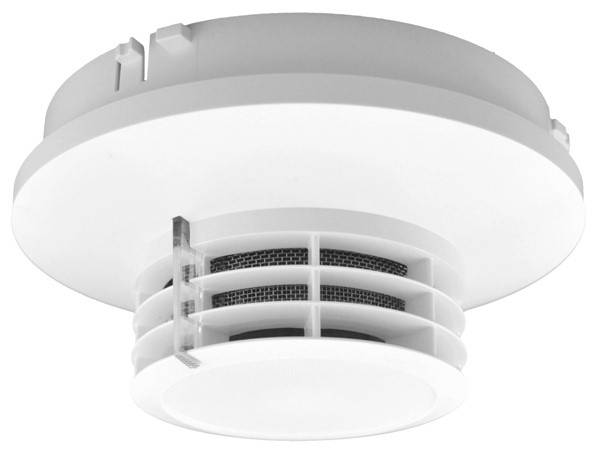

Hekatron MSD 523 Smoke detector (Ø x D) 119 mm x 58 mm
EAN:
Part number:
Item no:
Technical specifications
- Effective principle: Optical
- Optical message: Yes
- Acoustic message: No.
- Smoke switch: No.
- Mounting type: Construction
- Self-adhesive: No.
- Separate base required: Yes
- Suitable for duct mounting: No.
- Cable entry: From bottom and side
- Primary power supply: Mains operation
- Voltage type of supply voltage: DC
- Supply voltage DC 18..30 V
- With voltage display: No.
- Voltage type of the operating voltage: DC
- Operating voltage DC 18..30 V
- Colour: white
- RAL number (similar): 9003
- Protection type (IP) IP44
- Explosion-tested version: No.
- IFTTT support available: No.
- Height/depth 58 mm
- Diameter 119 mm
- VdS approved: Yes
- Product type
Smoke detector
- Dim
(Ø x D) 119 mm x 58 mm
- Content
1 pc(s)
- Depth
58 mm
- (Ø)
119 mm
- Factory colour
White
IP44
- Mounting type
Structure
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3795825 Hekatron MSD 523 Smoke detector (Ø x D) 119 mm x 58 mm
Description
For use on spur lines for automatic fire detection in buildings.
This text is machine translated.
This text is machine translated.
Hints
The smoke detector itself must never be connected directly to 230 V alternating current!
A suitable Hekatron power supply unit or central alarm unit is required for supplying power from the 230 V home network.
