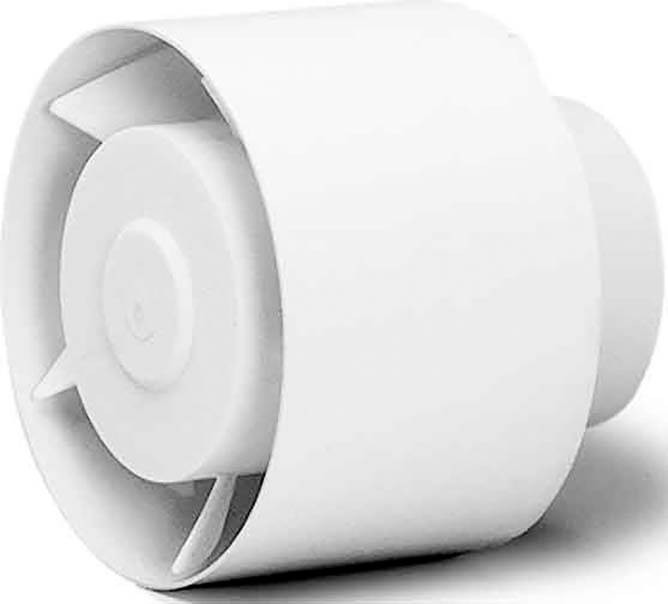

Helios Ventilatoren 00441 Duct extractor fan 230 V 105 m³/h 100 mm
EAN:
Part number:
Item no:
Technical specifications
- Design: Axial
- Nominal width 100 mm
- Mains frequency 50 Hz
- Product type
Duct extractor fan
- Nominal voltage
230 V
0.015 kW
- Air flow rate
105 m³/h
- Rotational speed
2320 U/min
- Suitable for pipe Ø
100 mm
- Noise emission (max.)
52 dBa
IP55
- Factory colour
White
- Material
Plastic
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2294402 Helios Ventilatoren 00441 Duct extractor fan 230 V 105 m³/h 100 mm
Description
Tubular fan, axial design, directly driven. Tube sleeve with smooth ends made of plastic suitable for insertion in pipes with NW 100. Impeller with 5 profiled blades made of plastic, high efficiency. Alternating current gap-pole motor with thermal overload protection for continuous operation with maintenance-free life-time lubricated ball bearings, not reversed.
