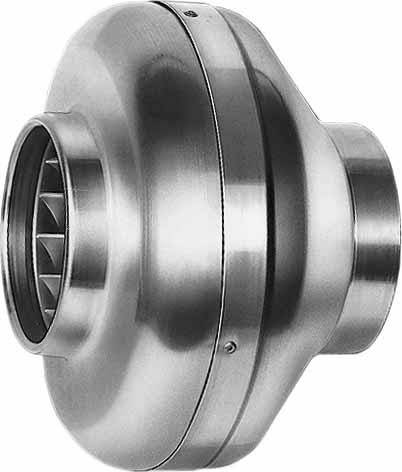

Helios Ventilatoren 05654 Duct extractor fan 230 V 330 m³/h 100 mm
EAN:
Part number:
Item no:
Technical specifications
- Connection: Flange
- Electrical connection: Terminals
- Suitable for electronic control: Yes
- Suitable for frequency control: no.
- Suitable for low current control: no.
- Suitable for transformer control: no.
- Channel diameter 100 mm
- Max. Air temperature 60 °C.
- With thermal protection: Yes
- 2 speed motor: Yes
- Pole-switchable: no.
- Housing material: Steel, treated
- Product type
Duct extractor fan
- Nominal voltage
230 V
- Air flow rate
330 m³/h
- Ventilation features
With nozzle
- Suitable for pipe Ø
100 mm
IP44
- Factory colour
Multicolour
- Material
Steel
- Dim
(Ø x L) 243 mm x 188 mm
- Length
188 mm
- (Ø)
243 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2295274 Helios Ventilatoren 05654 Duct extractor fan 230 V 330 m³/h 100 mm
Description
Radial pipe fan with 2 power levels for direct mounting in the pipe system. For medium and small volume of air against high resistance. Casing made of galvanized sheet steel with round connection supports tuned to standard pipes. Radial impeller with backward curved plastic blades. Pressed directly onto the motor and dynamically balanced as a unit. Low-noise, high efficiency. Single-phase AC external rotor motor Closed design, maintenance-free, built-in thermal contacts, sealed, low-noise ball bearings with long-term lubrication. Power control: By means of electronic controller or stage transformer or two-stage operation with type DS 2/2 (accessories, article no.: 1267).
