Helios Ventilatoren 05774 Radial extractor 7110 m³/h 450 mm

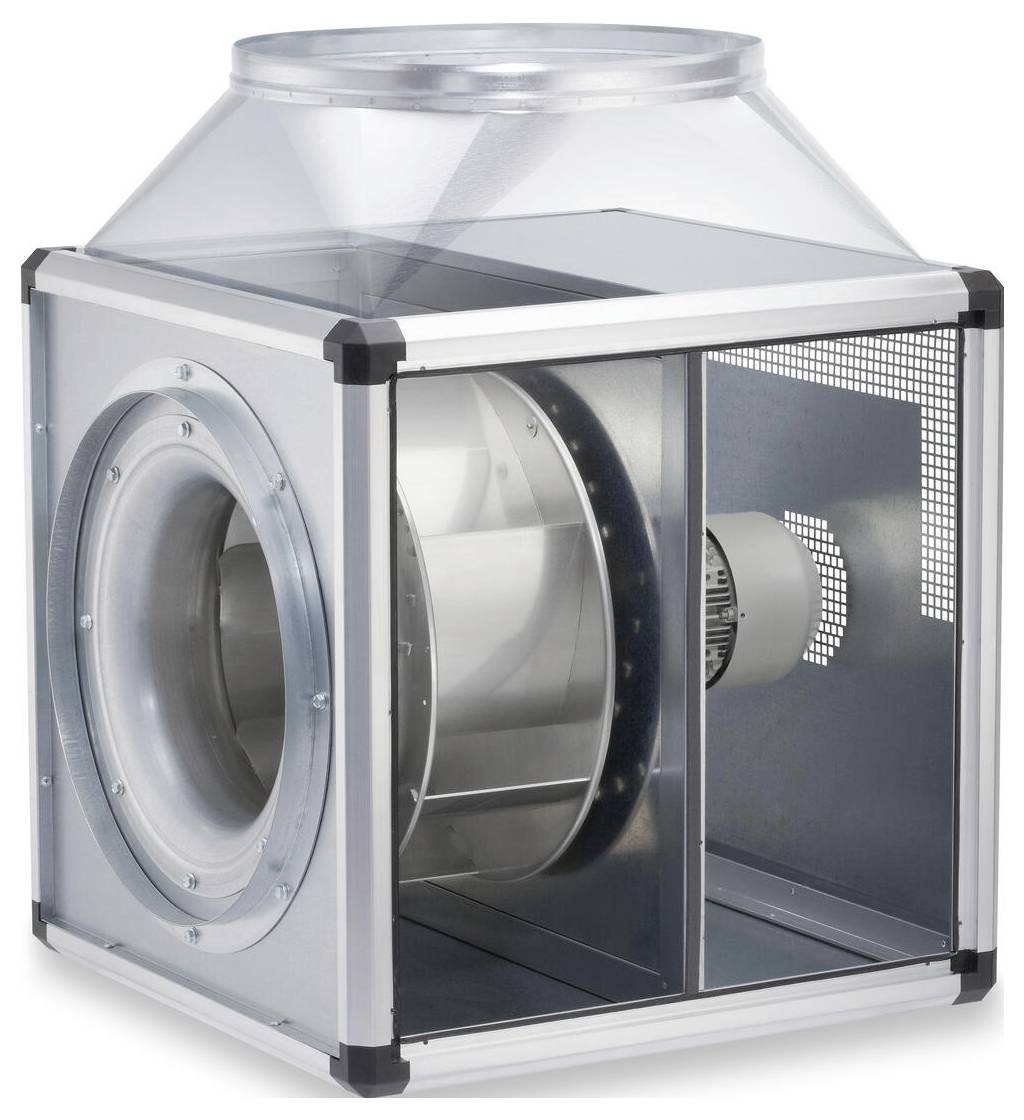

Cubic ventilation box with low-loss pipe connection nozzle and flexible sleeves (for temperatures up to 120 °C suitable) to prevent impact sound. Variably used housing panels for optimal adjustment to structural conditions. Motor is positioned outside the air flow, so can be used to circulate dirty, hot air up to max. 120°C. Supplied as standard with condensation tank and enclosed condensate drain. Application area: Commercial kitchens and many applications of process technology. Easy positioning with the standard crane hook. Self-supporting housing frame construction made of aluminum hollow profiles. Double-walled, 20 mm thick side panels made of galvanized steel plate, sound-and heat-insulated through lining with non-combustible mineral wool. High-power radial impeller with rear curved aluminum blades on galvanized steel disc, directly driven. Vibration-free operation by dynamic balancing together with the motor according to quality level 6.3 according to DIN ISO 1940 T.1. Drive motor in closed, maintenance-free design, lying outside the feed current. Speed can be controlled by voltage reduction, integrated thermal contacts led through terminal strip, closed, low-noise ball bearings with long-term lubrication. Mains connection on the terminal box (IP54) integrated in the device.

This text is machine translated.
