Helios Ventilatoren 05855 Radial extractor 5000 m³/h 400 mm
EAN:
Part number:
Item no:
Technical specifications
- Height: 655 mm
- Width 770 mm
- Protection class (IP) IP55
- Material of housing: Steel
- Length: 820 mm
- With thermal protection: Yes
- Power consumption: 1.3 kW
- Connection: Flange
- Electrical connection: Connection terminals
- Air quantity unloaded: 5000 m³/h.
- Connection voltage 400 V
- DC motor: No.
- Indirect drive: No.
- Max. Air temperature 120°C.
- Motor with 2 speeds: No.
- Suitable for electronic control: Yes
- Suitable for frequency control: No.
- Suitable for low current control: No.
- Suitable for transformer control: No.
- Outlet duct diameter 400 mm
- Product type
Radial extractor
1.3 kW
- Air flow rate
5000 m³/h
- Suitable for pipe Ø
400 mm
- Max. temperature
120 °C
- Material
Steel
- Dim
(L x W x H) 820 x 770 x 655 mm
- Width
770 mm
- Height
655 mm
- Length
820 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3550883 Helios Ventilatoren 05855 Radial extractor 5000 m³/h 400 mm
Description

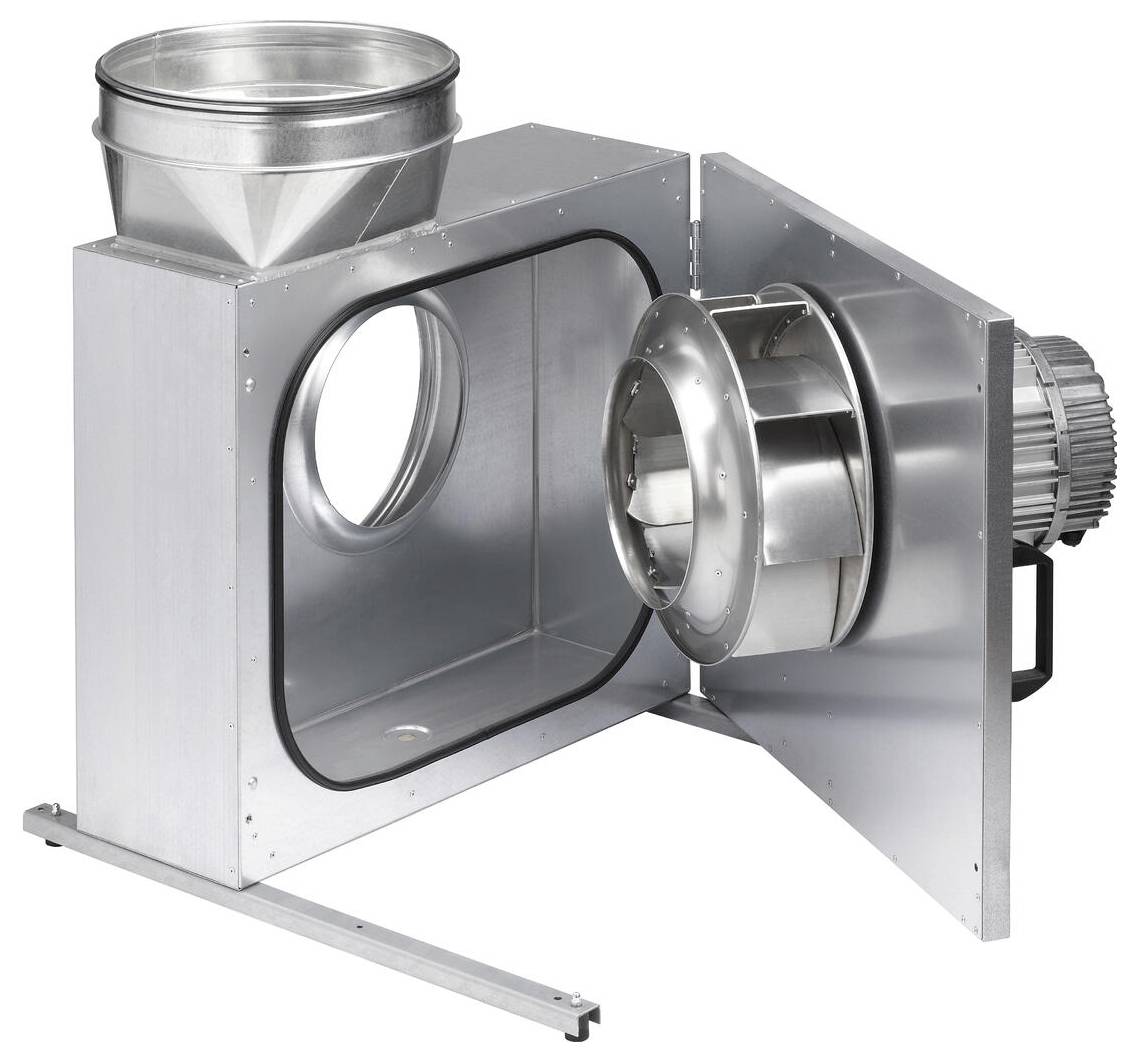

Noise-encapsulated EC radial fan with rotating motor impeller unit and motor lying outside the air flow. Double-walled housing made of zinc-plated steel sheet, soundproofed by lining with 30 mm thick mineral wool insulation material plates. Suction and pressure side pipe connection nozzle with rubber lip seal matched to standard diameter. Fully hinged fan door for inspection and cleaning. Inclusive Stable mounting rails with four vibration dampers. Condensate drain and drip protection with open door as standard. High-power radial impeller with backward curved blades made of aluminum, placed directly on motor shaft. Good degree of efficiency, low noise. Vibration-free operation thanks to dynamic balancing according to quality level G 6.3 VDI 2060 and DIN ISO 1940. Drive by energy-saving, variable-speed EC external rotor motor in protection class IP55 with the highest degree of efficiency. Maintenance and radio interference-free, ball-bearing. Integrated electronic temperature monitoring for EC motor and electronics. When the maximum permissible temperatures are exceeded, the speed and power is adjusted automatically. Infinitely variable speed control with potentiometer or variable speed control with universal control system. Connection via standard terminal box (IP55) on the outside of the motor.
This text is machine translated.
